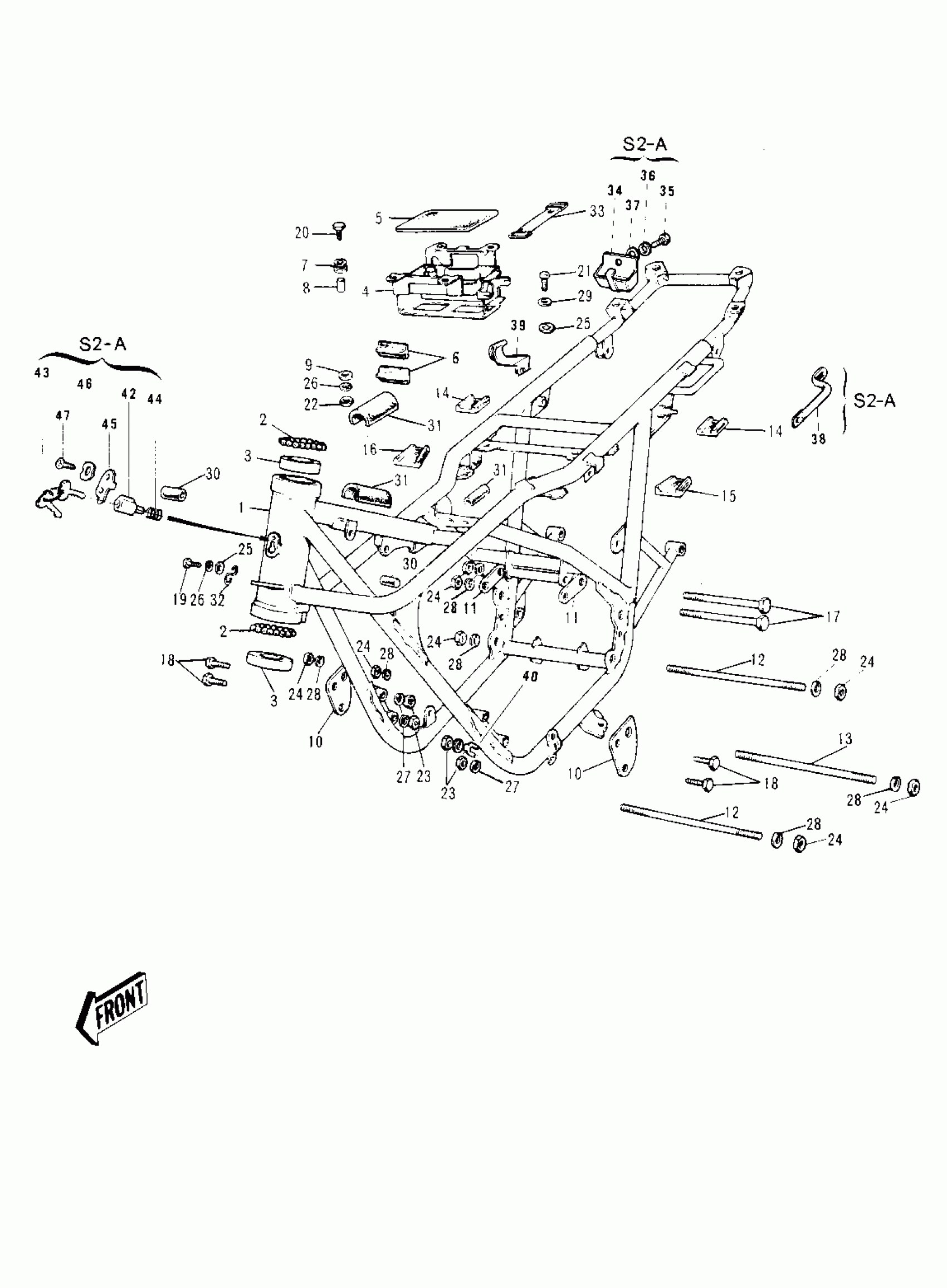

Kawasaki Mach II FRAME/FRAME FITTINGS Diagram
#
1
FRAME
32002-046
Unavailable
1
FRAME
32002-061
Unavailable
2
BALL-STEEL,1/4
600A0800
Unavailable
3
RACE,STEERING STEM BEARING
92048-006
Unavailable
4
CASE-BATTERY
32099-008
Unavailable
5
MAT BATTERY
32103-006
Unavailable
6
SEAT RECTIFIER RUBBER
32103-003
Unavailable
7
DAMPER RUBBER
92075-076
Unavailable
8
COLLAR,6.8X10X8.5
92027-129
Unavailable
9
WASHER,6.5X20X1.6
92022-125
Unavailable
10
PLATE-ENGINE MOUNT
32030-022
Unavailable
11
PLATE-ENGINE MOUNT
32030-023
Unavailable
12
BOLT,10X237
92003-182
Unavailable
12
BOLT,10X237
92003-182
Unavailable
13
BOLT,10X225
92003-181
Unavailable
13
BOLT,10X225
92003-181
Unavailable
14
RUBBER PAD
31082-007
Unavailable
15
RUBBER PAD
31082-008
Unavailable
16
RUBBER PAD
31082-009
Unavailable
17
BOLT,FLANGED,10X110
92001-1602
Unavailable
17
BOLT,HEX HEAD,10X125
92001-1248
Unavailable
18
BOLT,10X45
92001-1182
Unavailable
19
BOLT-UPSET,6X12
112G0612
Unavailable
20
BOLT 6X22
112B0622
Unavailable
21
SCREW-PAN-CROS,6X14
220B0614
Unavailable
22
NUT 6MM
311B0600
Unavailable
23
NUT,8MM
311B0800
Unavailable
24
NUT-HEX-FINE,10MM
314B1000
Unavailable
25
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
WASHER SPRING 8MM
461F0800
Unavailable
28
WASHER SPRING 10MM
461F1000
Unavailable
29
WASHER LOCK 6MM
464H0600
Unavailable
30
DAMPER,FUEL TANK
92075-044
Unavailable
31
MAT FUEL TANK
51067-002
Unavailable
32
CLAMP
92037-108
Unavailable
33
BAND
92072-012
Unavailable
34
COVER-SPARK PLUG
32132-001
Unavailable
35
BOLT-UPSET 6X14
112B0614
Unavailable
36
WASHER SPRING 6MM
461F0600
Unavailable
37
WASHER PLAIN
92022-024
Unavailable
38
FRAME GRIP
32109-013
Unavailable
39
BRACKET-HELMET HOLDER
32122-006
Unavailable
40
SHIM-ENG FIT RR,0.5MM
92025-048
Unavailable
40
SHIM-ENG FIT RR,0.8MM
92025-049
Unavailable
40
SHIM-ENG FIT RR,1.0MM
92025-050
Unavailable
40
SHIM-ENG FIT RR,1.6MM
92025-051
Unavailable
40
SHIM-ENG FIT RR,2.0MM
92025-052
Unavailable
41
SHIM-ENG FIT FR,0.5MM
92025-053
Unavailable
41
SHIM-ENG FIT FR,0.8MM
92025-054
Unavailable
41
SHIM-ENG FIT FR,1.0MM
92025-055
Unavailable
41
SHIM-ENG FIT FR,1.6MM
92025-056
Unavailable
41
SHIM-ENG FIT FR,2.0MM
92025-057
Unavailable
41
SHIM-ENG FIT FR,2.3MM
92025-058
Unavailable
42
LOCK ASSY-STEERING
27016-030
Unavailable
43
KEY SET,#265
27018-016-65
Unavailable
43
KEY SET,#279
27018-016-79
Unavailable
44
SPRING,STEERING LOCK
27032-001
Unavailable
45
CAP,STEERING LOCK
11012-1134
Unavailable
45
CAP,STEERING LOCK
11012-1134
Unavailable
46
WASHER,WAVE
92097-003
Unavailable
47
SCREW,3.51MM
92008-007
Unavailable
