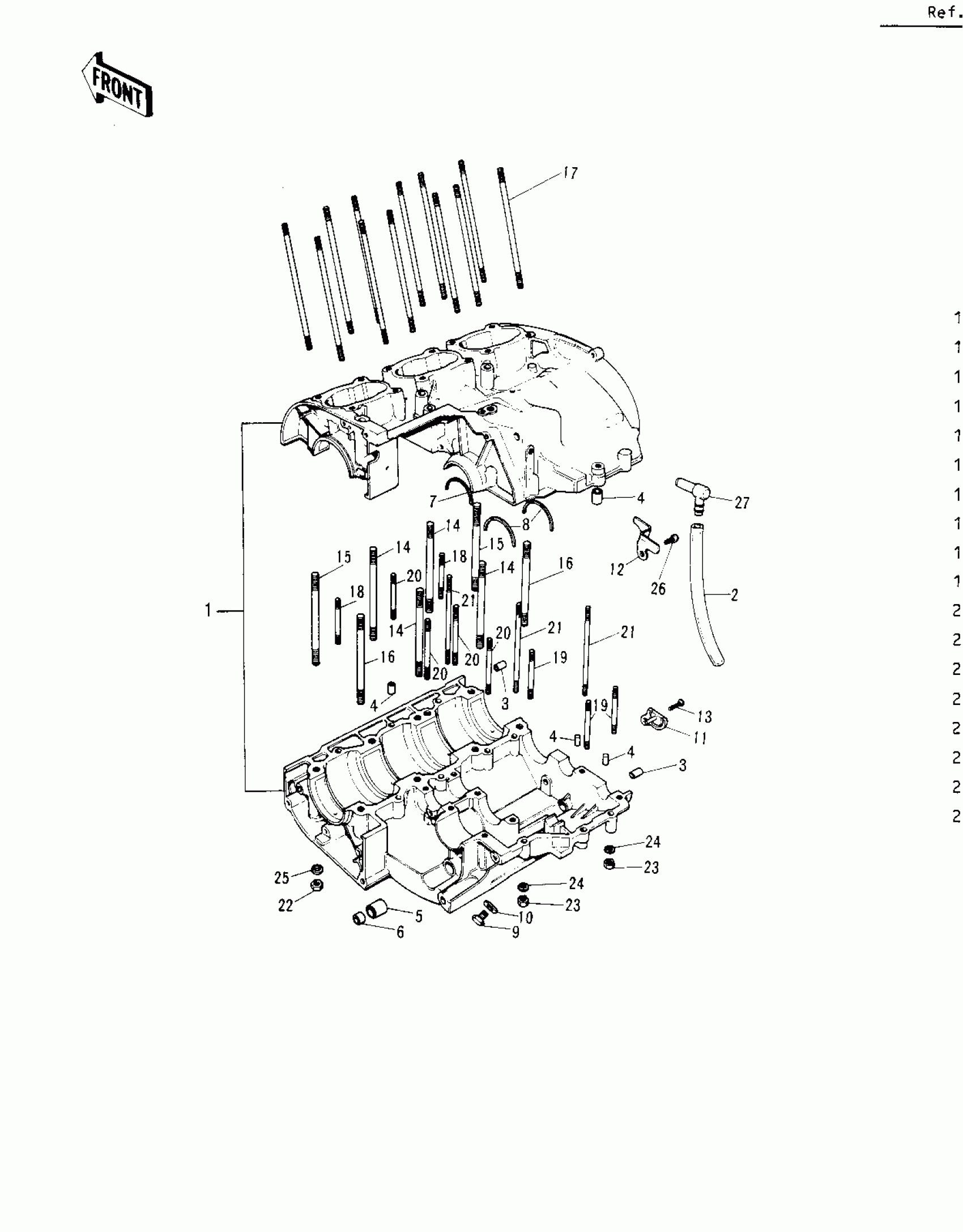

Kawasaki Mach II CRANKCASE Diagram

#

Description

Price

1

CRANKCASE SET

14001-049

Unavailable

2

PIPE-BREATHER

92059-061

Unavailable

3

PIN,DOWEL,10X14

92043-1037

Unavailable

4

PIN,DOWEL,6X16

92042-016

Unavailable

5

BUSH CHANGE PEDAL SHT

92028-071

Unavailable

6

SEAL-OIL,SB12205

92049-004

Unavailable

7

RING-POSITION,T=1.90

14013-013

Unavailable

8

RING-POSITION

14013-004

Unavailable

9

PLUG,DRAIN,10X12

92067-001

Unavailable

10

GASKET,10.5X16X1

92065-058

Unavailable

11

RECEIVER OIL

14015-001

Unavailable

12

RECEIVER-OIL

14015-003

Unavailable

13

SCREW-CSK-CROS,6X16

221B0616

Unavailable

14

STUD 10X50

172G1050

Unavailable

15

STUD,10X70

172G1070

Unavailable

16

STUD,10X80

172G1080

Unavailable

17

BOLT-STUD,8X115

172G08115

Unavailable

18

BOLT-STUD,6X22

172G0622

Unavailable

19

STUD 6X35

172G0635

Unavailable

20

STUD,6X45

172G0645

Unavailable

21

STUD,6X65

172G0665

Unavailable

22

NUT,10MM

317B1000

Unavailable

23

NUT 6MM

311B0600

Unavailable

24

WASHER SPRING 6MM

461F0600

Unavailable

25

WASHER SPRING 10MM

461F1000

Unavailable

26

SCREW PAN HEAD 6X10

220B0610

Unavailable

27

BREATHER

14069-003

Unavailable
