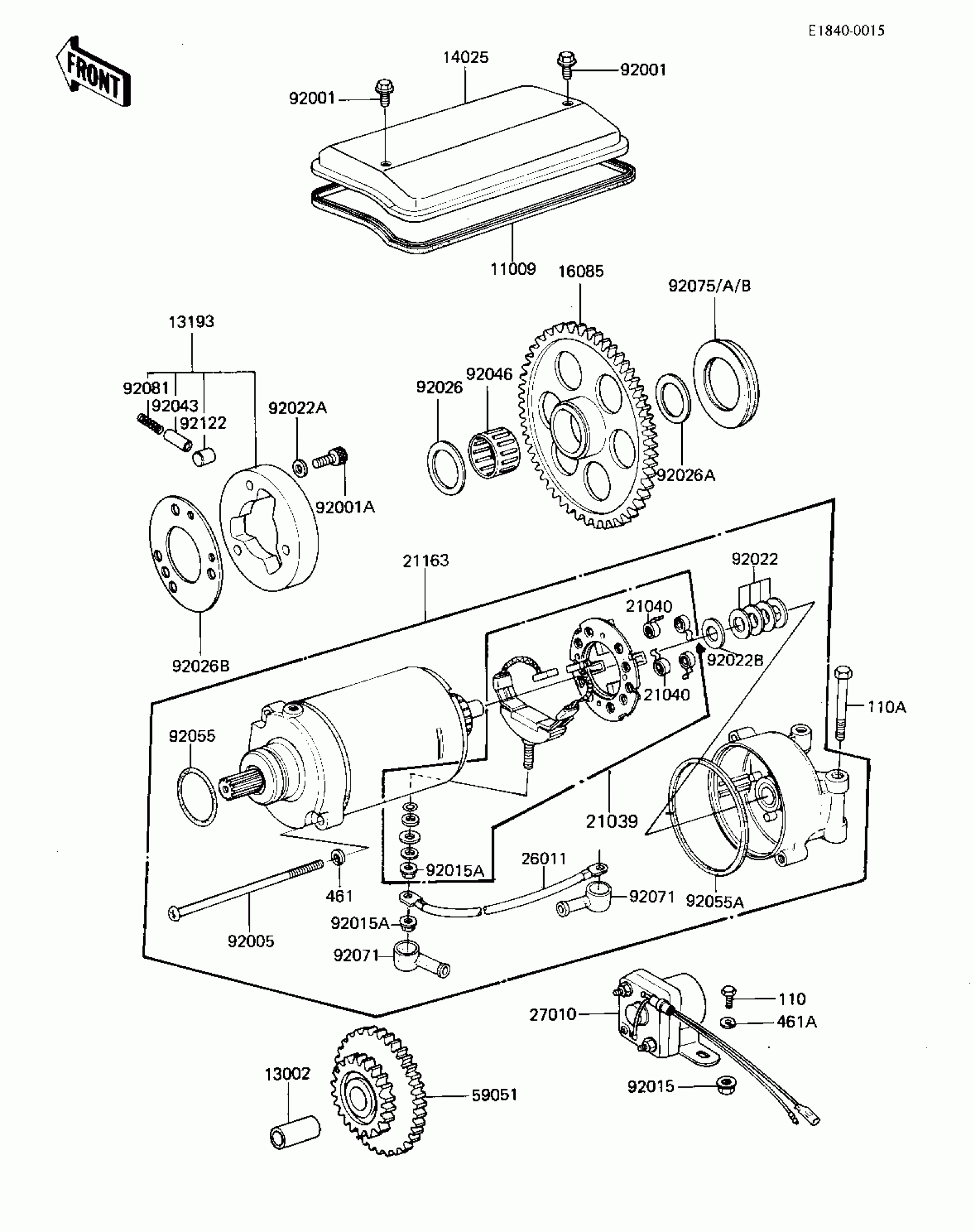

Kawasaki LTD STARTER MOTOR/STARTER CLUTCH (KZ1000-K2) Diagram
#
11009
GASKET,STARTER COVER
21166-001
$36.70
13002
PIN
13002-007
$18.23
13193
CLUTCH-ASSY-ONEWAY
13193-1006
$178.91
14025
COVER,STARTER
14025-1245
$44.12
16085
GEAR,STARTER CLUTCH
16085-1012
Unavailable
21039
BRUSH SET,CARBON
21039-1005
Unavailable
21040
SPRING,CARBON BRUSH
21040-1002
$11.17
21163
STARTER-ELECTRIC
21163-1016
$625.66
26011
WIRE-LEAD,STARTER MOTOR
26011-1135
$74.28
27010
SWITCH,MAGNETIC
27010-1047
$153.85
59051
GEAR-SPUR,STARTER MOTOR
21167-002
Unavailable
92001
BOLT,6X10
92001-1151
$5.01
92001A
BOLT SOCKET 8X16
92003-104
$4.45
92009
SCREW,PAN HEAD,5X110
21015-005
$9.81
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,FLANGED,6MM
92015-1195
$2.00
92022
WASHER,9.1X18X0.2
21025-011
$6.22
92022A
WASHER,8.5X13.5X2
92022-1108
$4.31
92022B
WASHER,9.1X18X0.8
92022-1132
$6.22
92026
SPACER,25X38X1.0
92026-1031
$10.35
92026A
SPACER,25X34X2.0
92026-1033
$7.58
92026B
PLATE,CLUTCH STARTER
92026-112
Unavailable
92043
PIN
92043-087
$12.76
92046
BEARING-NEEDLE,K253020S
92046-1022
$22.97
92055
RING-O,STARTER MOTOR,25MM
21027-004
$9.91
92055A
RING-O,64MM
92055-1086
$10.00
92071
GROMMET,STARTER TERMINAL
21017-017
$9.43
92075
DAMPER,T=6.3
92075-1129
Unavailable
92075A
DAMPER,T=7.3
92075-1130
Unavailable
92075B
DAMPER,T=8.3
92075-1131
Unavailable
92081
SPRING
92081-110
$4.76
92122
ROLLER,15X14.4
92122-001
$11.60
110
BOLT, HEX HEAD, 6X12
110B0612
$1.45
110A
BOLT-HEX HEAD,6X55
110B0655
Unavailable
461
WASHER SPRING 5MM
461F0500
$0.69
461A
WASHER SPRING 6MM
461F0600
$0.69
