Description

Price

1

UNAVAILABLE IN PRICE BOOK

13096-029

Unavailable

2

CHAIN,63-139X52L(TUBAKIMOTO)

13122-007

$388.56

3

SHAFT,SECONDARY

13127-054

Unavailable

3-1

SHAFT,SECONDARY,L=205

13127-1019

Unavailable

4

COUPLING,OUTER,SECONDARY SHAFT

13252-001

$276.49

5

COUPLING,INNER,SECONDARY SHAFT

13253-001

Unavailable

6

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

7

BEARING BALL #6304

601B6304

$36.85

7

BEARING-BALL,#6205C3

601B6205

$19.57

8

BEARING-BALL,#6305C3

601B6305

$25.78

9

NUT,18MM

92015-019

$7.22

10

BUSHING,20X25X16.6

92028-1037

$31.84

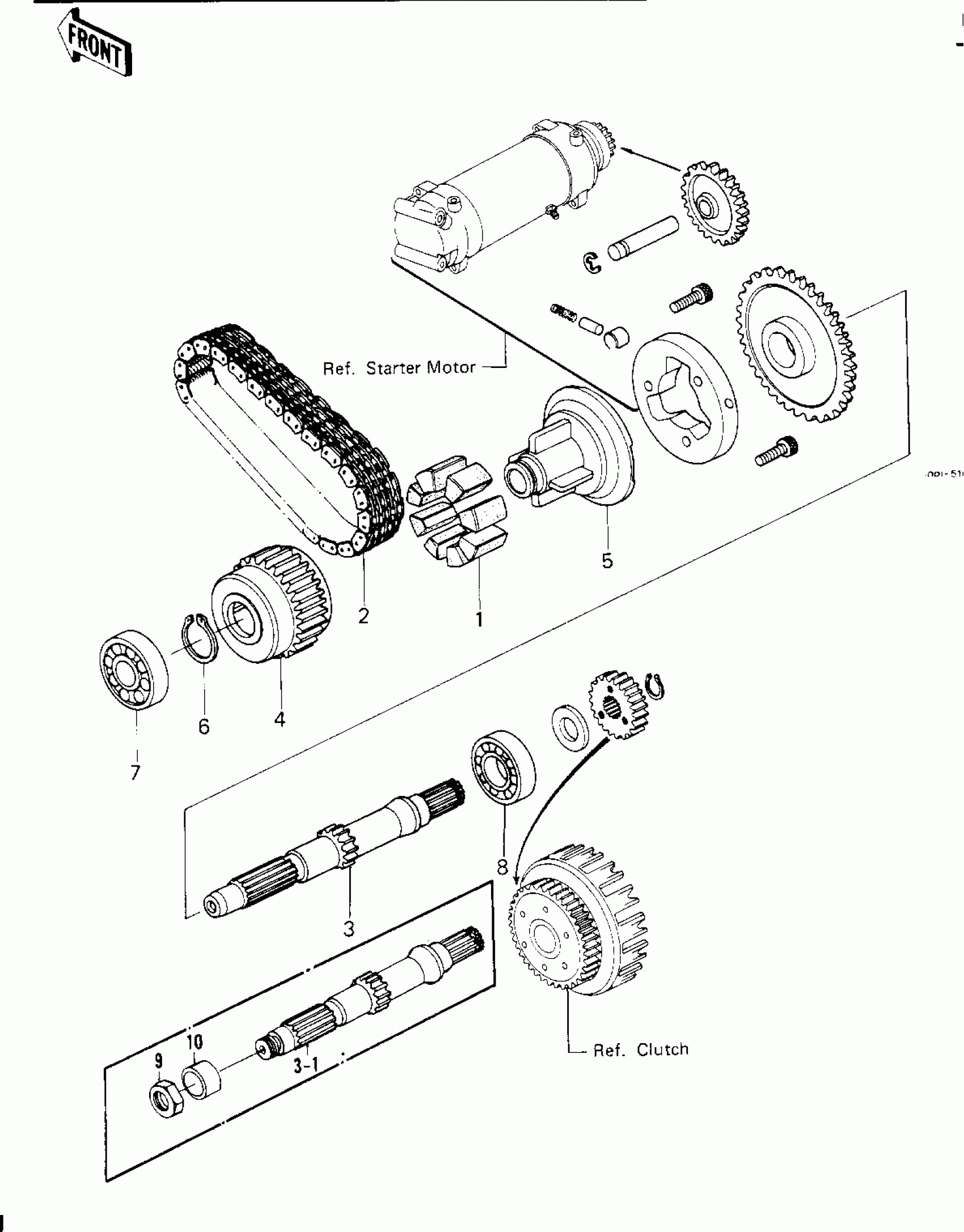

Kawasaki LTD SECONDARY SHAFT Diagram

UNAVAILABLE IN PRICE BOOK

CHAIN,63-139X52L(TUBAKIMOTO)

SHAFT,SECONDARY

SHAFT,SECONDARY,L=205

COUPLING,OUTER,SECONDARY SHAFT

COUPLING,INNER,SECONDARY SHAFT

CIRCLIP-TYPE-C,28MM

BEARING BALL #6304

BEARING-BALL,#6205C3

BEARING-BALL,#6305C3

NUT,18MM

BUSHING,20X25X16.6
