Description

Price

1

SEAT,LTD 900/1000

53001-130

$191.86

2

HINGE,REAR

53009-030

Unavailable

3

WASHER PLAIN 6MM

411B0600

$2.84

4

WASHER SPRING 6MM

461F0600

$0.69

5

BOLT-UPSET,6X16

112G0616

$1.10

6

DAMPER RUBBER,SEAT

92075-139

$11.46

7

HINGE,REAR

53009-032

Unavailable

8

DAMPER

92075-099

$5.52

9

NUT 6MM

311B0600

$0.93

10

BRACKET,SEAT CATCH

53058-003

Unavailable

11

BRACKET,SEAT CATCH

53058-002

Unavailable

12

BOLT-UPSET 6X14

112B0614

Unavailable

13

PIN,DUAL SEAT PIVOT

53011-008

Unavailable

14

COTTER PIN

92041-003

$5.72

15

LOCK,SEAT

27030-005

$146.92

17

WASHER SPRING 6MM

461F0600

$0.69

18

BOLT-UPSET,6X12

112G0612

$1.45

19

CASE-CHAIN

36014-069

Unavailable

20

WASHER-PLAIN,6MM

411D0600

$2.06

21

BOLT-HEX HEAD,6X16

110N0616

Unavailable

22

BOLT-UPSET

112G0614

$1.96

23

WASHER SPRING 8MM

461F0800

$0.40

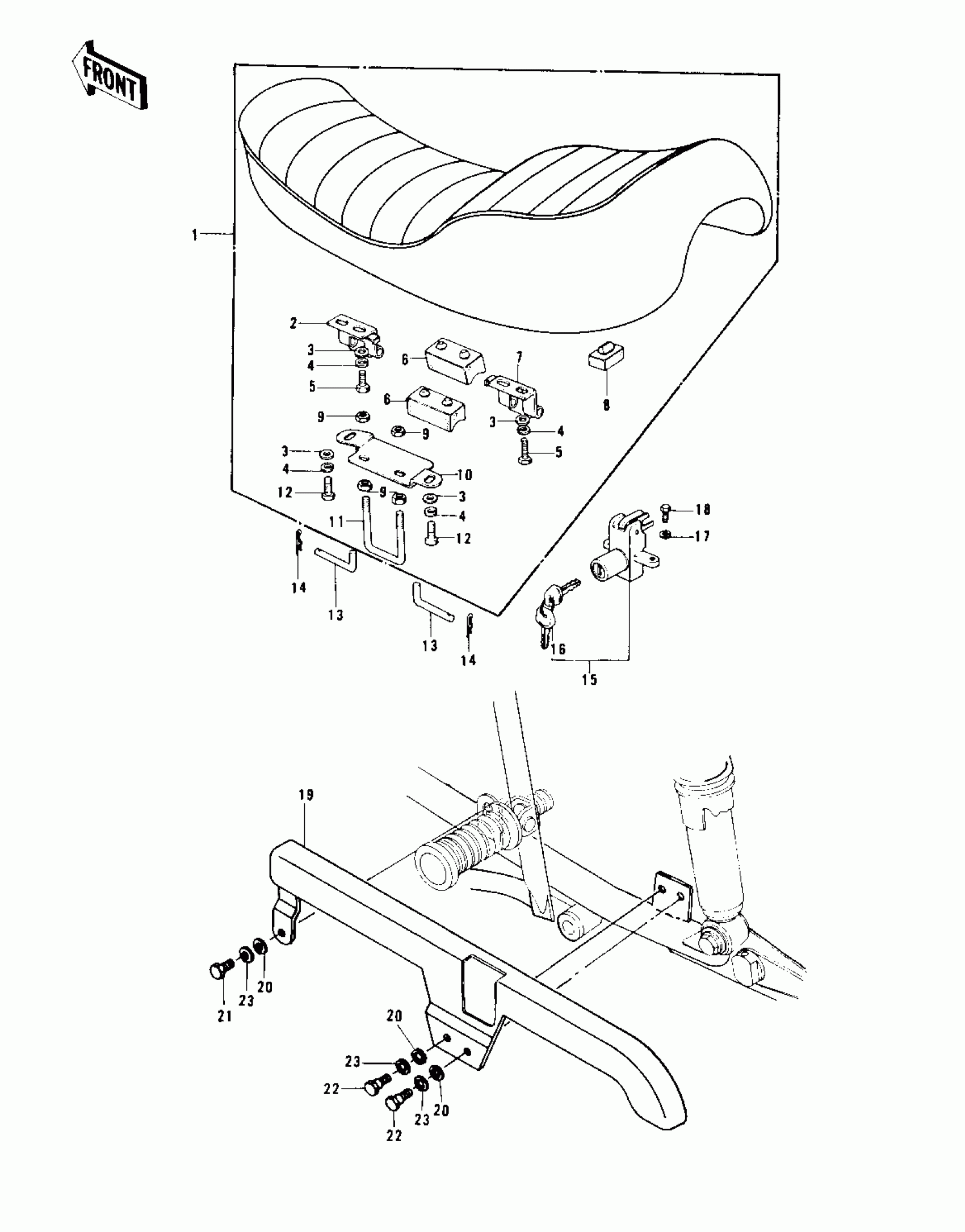

Kawasaki LTD SEAT/CHAIN COVER Diagram

SEAT,LTD 900/1000

HINGE,REAR

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET,6X16

DAMPER RUBBER,SEAT

HINGE,REAR

DAMPER

NUT 6MM

BRACKET,SEAT CATCH

BRACKET,SEAT CATCH

BOLT-UPSET 6X14

PIN,DUAL SEAT PIVOT

COTTER PIN

LOCK,SEAT

WASHER SPRING 6MM

BOLT-UPSET,6X12

CASE-CHAIN

WASHER-PLAIN,6MM

BOLT-HEX HEAD,6X16

BOLT-UPSET

WASHER SPRING 8MM
