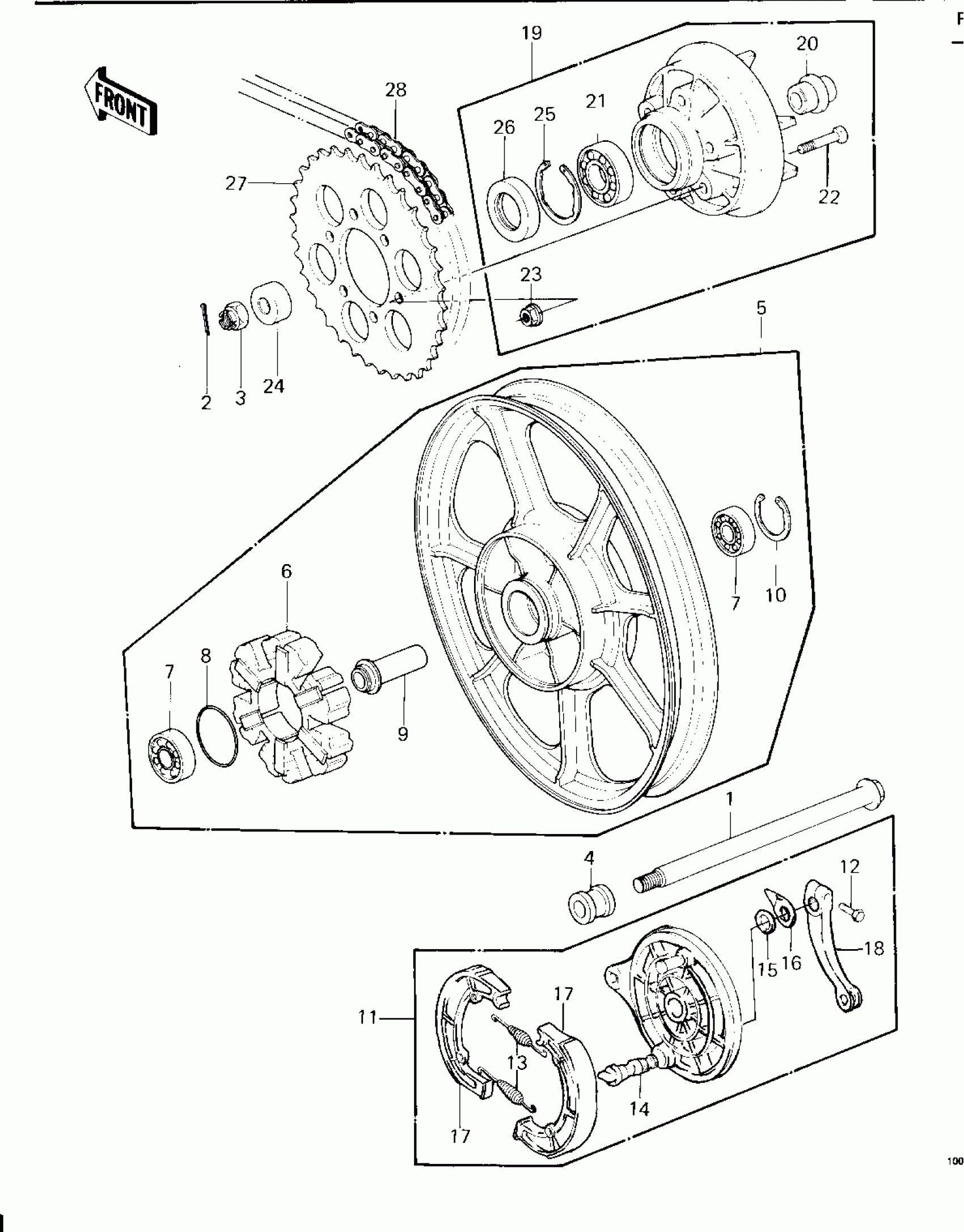

Kawasaki LTD REAR WHEEL/HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

AXLE,RR

41068-1086

$73.40

2

PIN-COTTER,4.0X35

550D4035

$2.17

3

NUT,16MM

92015-055

$11.50

4

COLLAR,AXLE,L=28M/M

92027-1226

$46.71

5

SOLID WHEEL ASSY,REAR

41073-1065

$370.33

6

SHOCK DAMPER

42014-032

Unavailable

7

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38

8

O RING,60MM

671B2560

$6.91

9

COLLAR,REAR HUB BRG.

92027-1047

Unavailable

10

RING-SNAP,47MM

92033-1042

$4.22

11

PANEL-ASY,RR BRK

41035-1056

$359.81

11

PANEL-ASY,RR BRK

41035-1056

Unavailable

11

PANEL-ASY,BRK BLACK

41035-1055

$648.45

11

PANEL-ASY,BRK BLACK

41035-1055

Unavailable

12

BOLT HEX HEAD 8X28

114G0828

$3.71

13

SPRING,BRAKE SHOE

41049-012

$9.49

13

SPRING,BRAKE SHOE

41049-012

$9.49

14

CAM-BRAKE

41050-017

Unavailable

15

SEAL,BRAKE CAM

41051-003

$4.26

16

INDICATOR,BRAKE SHOE

41085-004

Unavailable

17

SHOE,BRAKE

42019-012

$51.67

18

LEVER-BRAKE CAM

42029-039

$65.77

19

COUPLING ASSY,RR HUB

42033-1018

$120.57

20

SLEEVE,RR HUB COUPLNG

42036-1030

Unavailable

21

BALL BEARING,#6206

601B6206

$22.50

22

BOLT,10X41

92001-161

$5.38

23

NUT,FLANGED,10MM

92015-1415

$4.69

24

COLLAR,AXLE,L=20.5M/M

92027-1227

$10.59

25

RING-SNAP,62MM

92033-1044

$11.29

26

SEAL-OIL,AJN40627

92050-027

$20.96

27

REAR SPROCKET,4/T

42041-1024

$109.40

28

CHAIN,DRIVE,EK50MV-OX102L

92057-1232

Unavailable
