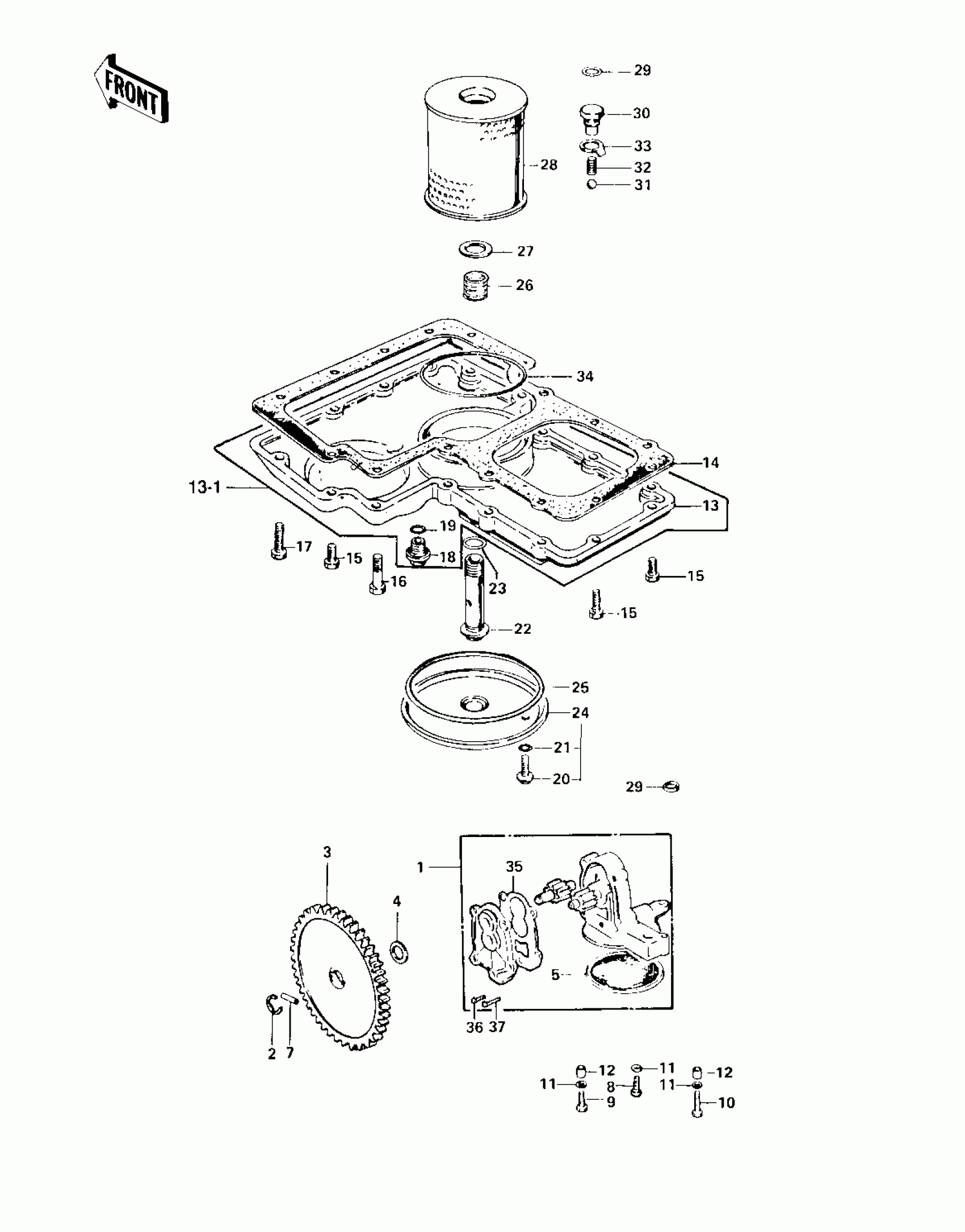

Kawasaki LTD OIL PUMP/OIL FILTER/OIL PAN Diagram

#

Description
Price

1

PUMP-ASSY-OIL

16082-5001

$637.41

2

CIRCLIP,7MM

482K7000

$3.81

3

GEAR,OIL PUMP 49T

16085-019

$102.31

4

WASHER,LOCK,16MM

92026-080

$4.69

5

FILTER,OIL PUMP

16111-004

$44.36

6

SCREW PAN HEAD 5X8

220B0508

$0.46

7

PIN,DOWEL,3X14

551A0314

$0.73

8

BOLT,FLANGED,6X22

92001-1352

$4.31

9

BOLT,HEX HEAD,6X35

92001-164

$6.60

10

BOLT,FLANGED,6X45

92001-165

$5.24

11

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

12

PIN,DOWEL,8X10

92043-1302

$1.03

13

PAN-OIL

49034-5020

$265.23

13-1

PAN-OIL

49034-5020

$265.23

14

GASKET,OIL PAN

11060-1074

Unavailable

15

BOLT,FLANGED,6X25

130G0625

$1.17

16

BOLT, HEX HEAD, 6X34

92003-159

Unavailable

17

BOLT-FLANGED,6X50

130G0650

$1.01

18

PLUG,OIL DRAIN

92001-1183

$54.58

19

O RING,22MM

670B2022

$4.69

20

PLUG,OIL DRAIN

92066-024

Unavailable

21

O RING,8MM

670B1508

$1.29

22

BOLT,OIL FILTER

92001-1074

$83.10

22

BOLT,OIL FILTER

92001-1074

$83.10

23

O RING,22MM

670B2022

$4.69

24

COVER,OIL FILTER

14025-1112

Unavailable

25

"0" RING,105MM

671B25105

$31.93

26

SPRING,OIL FILTER

92081-1018

$4.65

27

WASHER,20.5X30X1

92022-1012

$4.34

28

ELEMENT-OIL FILTER

16099-002

$16.20

29

RING-O,OD=18

92055-048

$4.80

30

BOLT

92003-095

Unavailable

31

BALL-STEEL,3/8"

600A1200

$1.56

32

SPRING

92081-109

$11.29

33

WASHER,LOCK

92024-048

Unavailable

34

RING-O,91.6X3.4

92055-052

$9.89

35

GASKET,OIL PUMP

11009-1029

Unavailable

36

SCREW-PAN-CROS,6X16

220B0616

$2.84

37

SCREW PAN HEAD 6X28

220B0628

$3.41
