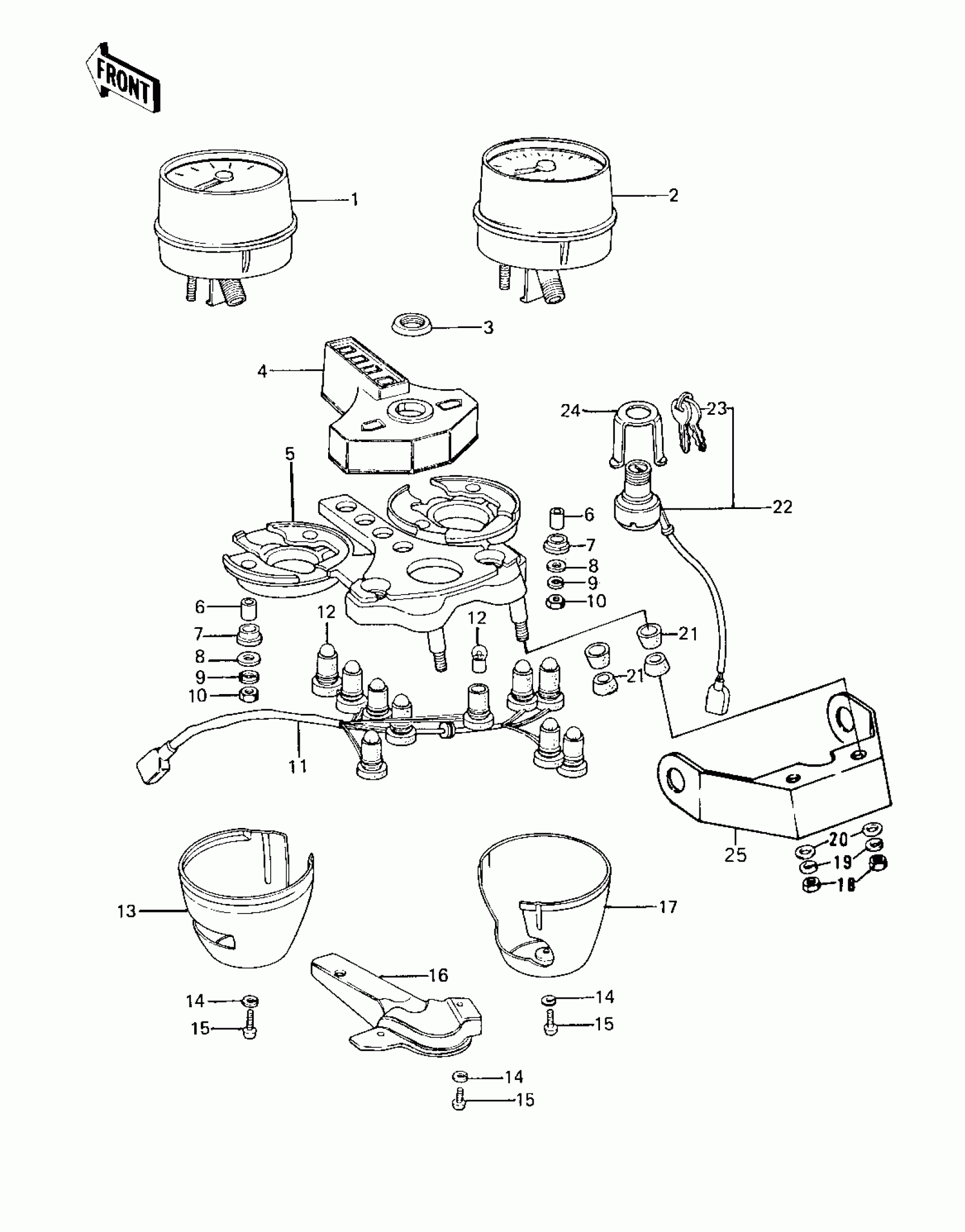

Kawasaki LTD METERS/IGNITION SWITCH Diagram
#
1
SPEEDOMETER ASSY,MPH
25005-1031
Unavailable
1
SPEEDOMETER ASSY,MPH
25005-1031
Unavailable
1
SPEEDOMETER,KP4 (Canada)
25006-056
$542.63
2
TACHOMETER ASSY
25015-1010
Unavailable
2
TACHOMETER ASSY
25015-1010
Unavailable
3
NUT,IGNITION SW LOCK
27007-004
Unavailable
4
COVER,METER,INDICATE
25023-015
$220.31
5
BRACKET,METER
25008-045
Unavailable
5
BRACKET,METER
25008-045
Unavailable
6
COLLAR,METER
92027-211
$14.88
7
RUBBER,METER
92075-172
$14.92
8
WASHER,PLAIN,5MM
92022-241
Unavailable
9
WASHER SPRING 5MM
461F0500
$0.69
10
NUT-HEX,5MM
312B0500
$0.46
11
SOCKET,SPEEDOMETER
25011-049
Unavailable
12
BULB 12V 3W
92069-018
$4.87
13
COVER,SPEEDOMETER
25012-023
Unavailable
14
WASHER SPRING 3MM
461F0300
$0.46
15
SCREW-PAN-CROS,3X8
220B0308
$0.59
16
COVER,METER BRACKET
25024-006
$28.55
17
COVER,TACHOMETER
25012-024
$220.13
18
NUT,8MM
311B0800
$0.67
19
WASHER SPRING 8MM
461F0800
$0.40
20
WASHER PLAIN 8MM
411B0800
$0.93
21
DAMPER RUBBER
92075-080
$10.35
22
SWITCH,IGNITION
27005-086
$185.95
23
KEY SET,#751
27008-069-51
$49.14
23
KEY SET,#752
27008-069-52
$43.05
23
KEY SET,#753
27008-069-53
Unavailable
23
KEY SET,#754
27008-069-54
$49.14
23
KEY SET,#755
27008-069-55
$25.71
23
KEY SET,#756
27008-069-56
$42.97
23
KEY SET,#757
27008-069-57
Unavailable
23
KEY SET,#758
27008-069-58
$25.71
23
KEY SET,#759
27008-069-59
$49.11
23
KEY SET,#760
27008-069-60
$25.71
23
KEY SET,#786
27008-069-86
$42.94
23
KEY SET,#787
27008-069-87
$43.05
23
KEY SET,#788
27008-069-88
Unavailable
23
KEY SET,#789
27008-069-89
$42.94
23
KEY SET,#790
27008-069-90
$43.05
23
KEY SET,#791
27008-069-91
$42.94
23
KEY SET,#792
27008-069-92
$31.46
23
KEY SET,#793
27008-069-93
$42.94
23
KEY SET,#794
27008-069-94
$49.14
23
KEY SET,#795
27008-069-95
Unavailable
23
KEY,BLANK
27008-1013
Unavailable
24
HOLDER IGNITION SW
27019-003
Unavailable
25
BRACKET HEADLAMP
23064-030
Unavailable
