Description

Price

14024

COVER,PILOT BOX,UPP

14025-1742

$79.84

14024A

COVER,PILOT BOX,INNER

14025-1743

$47.53

14024B

COVER,PILOT BOX,LWR

14025-1744

$21.42

14024C

COVER,SPEEDOMETER

14025-1745

$51.85

14024D

COVER,TACHOMETER

14025-1746

$52.12

23008

SOCKET-ASSY,PILOT BOX

23008-1255

$118.37

23008A

SOCKET-ASSY

23008-1256

$69.17

23008B

SOCKET-ASSY,TACHOMETER

23008-1257

$50.80

25005

SPEEDOMETER,MPH

25005-1357

$434.90

25008

BRACKET-METER,PILOT BOX

25008-1115

$51.27

25008A

BRACKET-METER,SPEEDOMETER

25008-1116

$29.98

25008B

BRACKET-METER,TACHOMETER

25008-1117

$29.98

25015

TACHOMETER,(X1000R/MIN)

25015-1235

$498.38

25023

COVER-METER CASE,PILOT BOX

25023-1125

$71.22

28011

METER,FUEL

28011-1071

$125.54

92009

SCREW,TAPPING,4X14

92009-1034

$4.86

92009A

SCREW,TAPPING,4X16

92009-1063

$3.69

92009B

SCREW,TAPPING,4X16

92009-1163

$4.10

92009C

SCREW,3X22

92009-1293

$3.91

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 3W,T7

92069-1020

$6.52

92075

DAMPER,TRIP METER

92075-1286

$9.58

92075A

DAMPER,METER

92075-1712

$8.05

92075B

DAMPER,METER

92075-1713

$12.78

92075C

DAMPER,METER

92075-1714

$12.78

185

BOLT-UPSET-WSP-SMALL,8X16

185C0816

$4.62

311

NUT-HEX

311B0500

$0.47

311A

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69

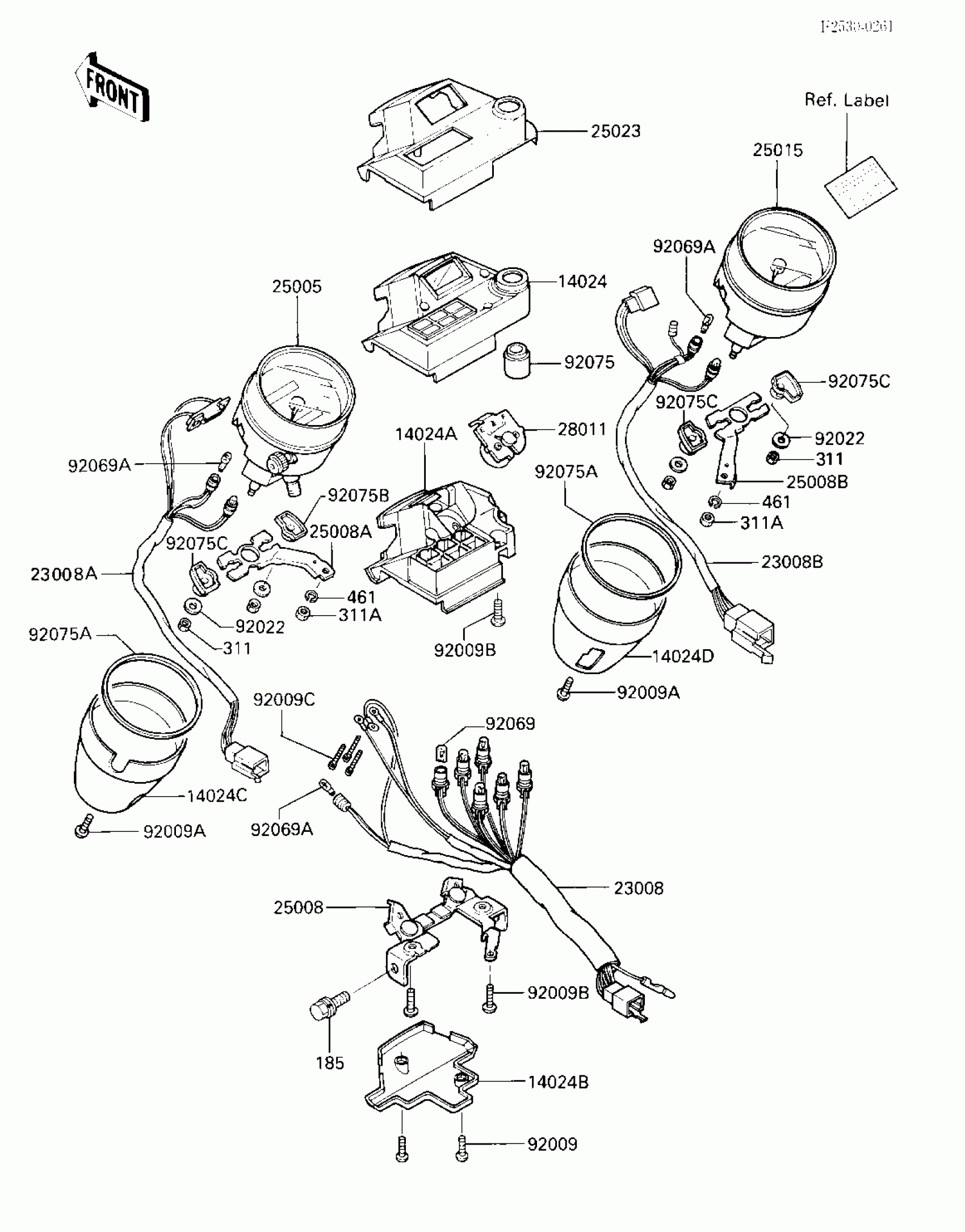

Kawasaki LTD METERS Diagram

COVER,PILOT BOX,UPP

COVER,PILOT BOX,INNER

COVER,PILOT BOX,LWR

COVER,SPEEDOMETER

COVER,TACHOMETER

SOCKET-ASSY,PILOT BOX

SOCKET-ASSY

SOCKET-ASSY,TACHOMETER

SPEEDOMETER,MPH

BRACKET-METER,PILOT BOX

BRACKET-METER,SPEEDOMETER

BRACKET-METER,TACHOMETER

TACHOMETER,(X1000R/MIN)

COVER-METER CASE,PILOT BOX

METER,FUEL

SCREW,TAPPING,4X14

SCREW,TAPPING,4X16

SCREW,TAPPING,4X16

SCREW,3X22

WASHER,5.2X16X1.2

BULB,12V 3.4W,T10

BULB,12V 3W,T7

DAMPER,TRIP METER

DAMPER,METER

DAMPER,METER

DAMPER,METER

BOLT-UPSET-WSP-SMALL,8X16

NUT-HEX

NUT 6MM

WASHER SPRING 6MM
