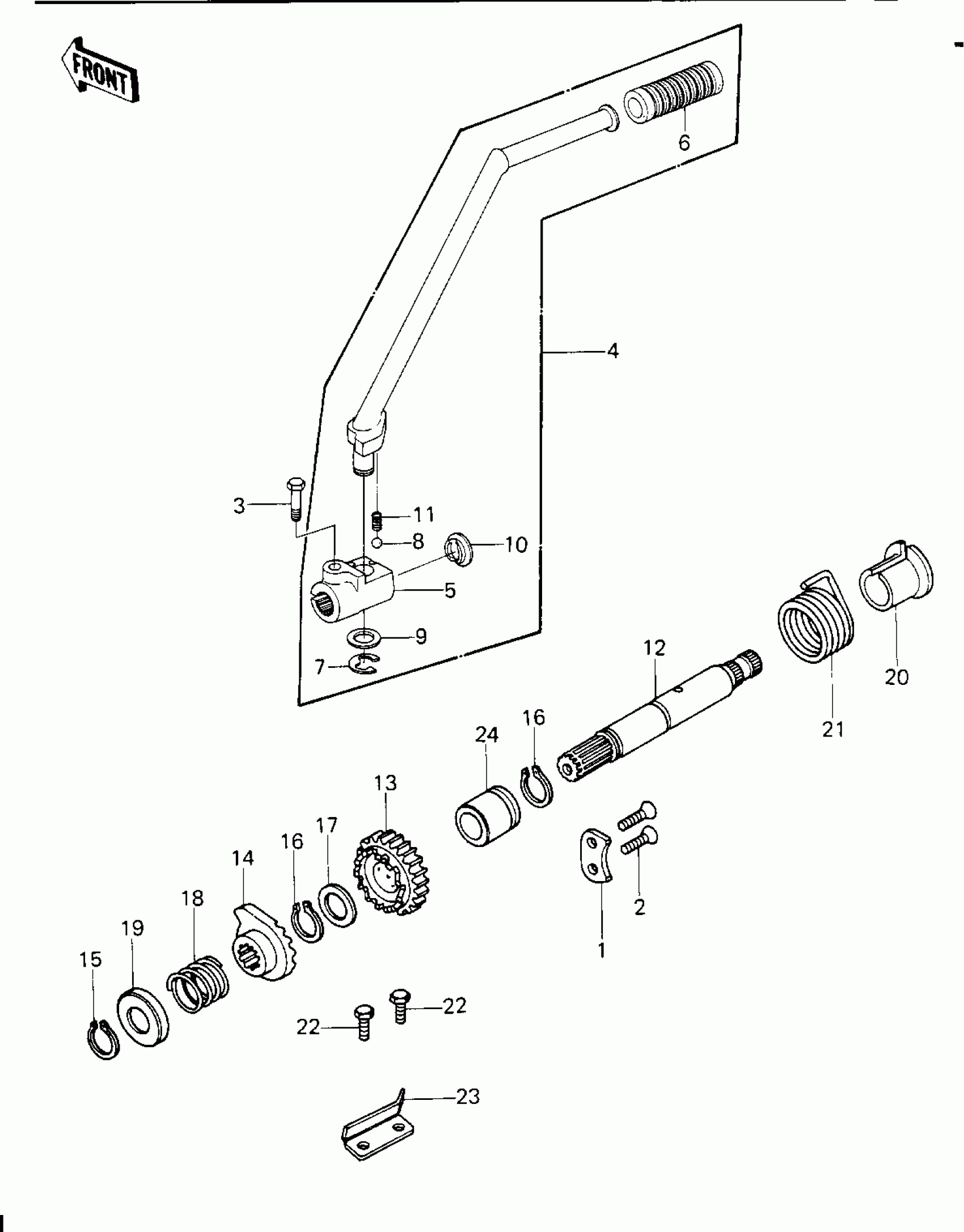

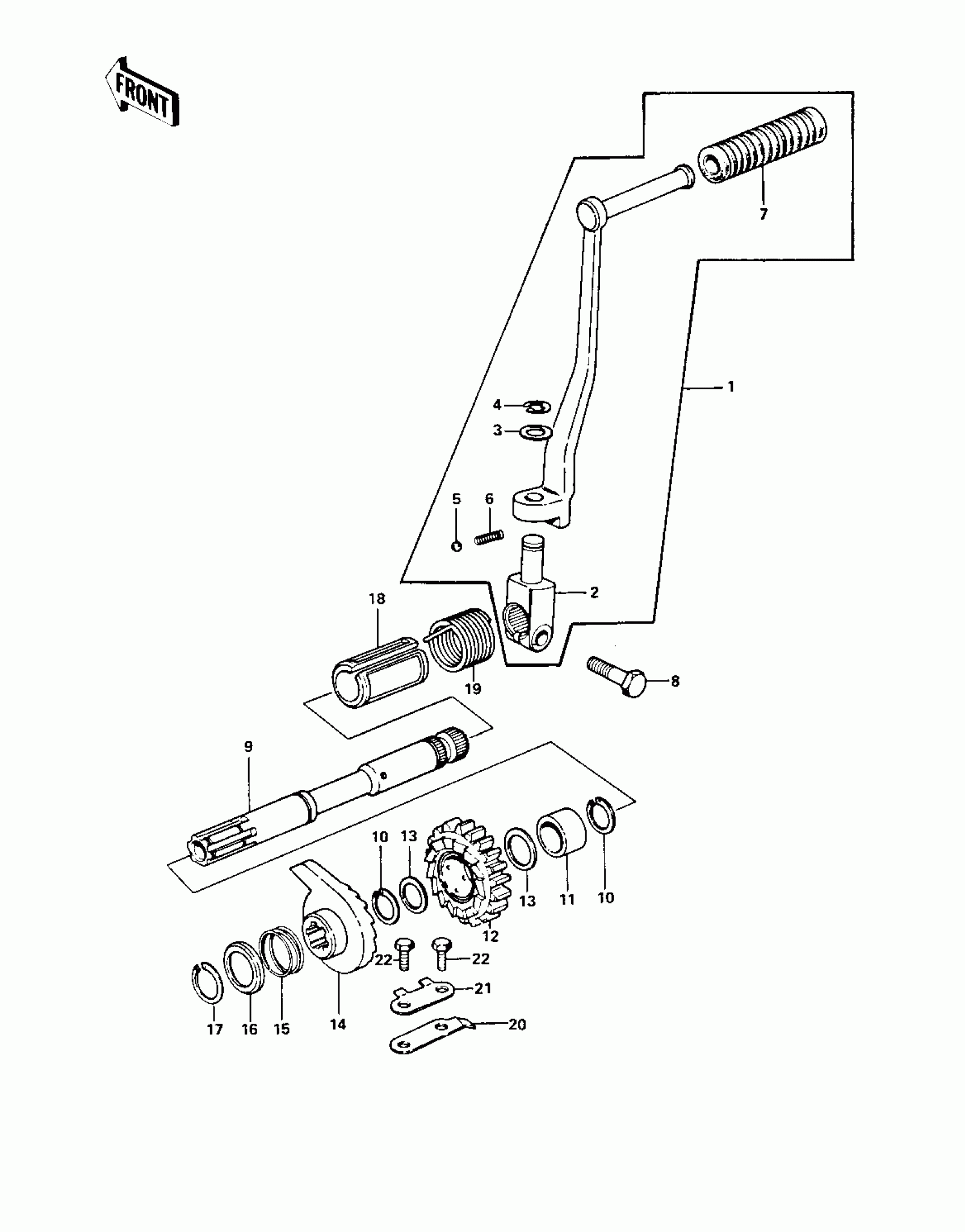

Kawasaki LTD KICKSTARTER MECHANISM Diagram

#

Description
Price

1

PEDAL,KICKSTARTER

13058-044

Unavailable

2

BOSS-KICK PEDAL

13061-014

Unavailable

3

WASHER BRAKE PEDAL

92022-085

$3.92

4

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

5

BALL-STEEL,1/4

600A0800

$0.62

6

SPRING,KICK PEDAL

92081-020

$4.26

7

DAMPER,KICK PEDAL

13063-004

$10.94

8

BOLT-HEX HEAD,10X25

114B1025

$3.85

9

SHAFT,KICKSTARTER

13066-029

Unavailable

10

RING-SNAP,20X25.5X1.2

92033-025

$4.96

11

COLLAR,KICKSHAFT

92028-126

$30.02

12

GEAR,KICKSTARTER 19T

13068-028

Unavailable

13

WASHER,PLAIN,22MM

92022-207

Unavailable

14

RATCHET,KICK SHAFT

13078-011

Unavailable

15

SPRING RATCHET

92081-104

$10.23

16

CAP,KICKSTARTER

92102-008

Unavailable

17

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

18

GUID,KICK SHAFT

13070-005

Unavailable

19

SPRING,KICKSTARTER

92082-004

Unavailable

20

STOPPER,KICKSTARTER

13072-012

Unavailable

21

WASHER-LOCK

92024-036

Unavailable

22

BOLT-UPSET 6X14

112B0614

Unavailable
