Description

Price

11044

BRACKET,HEAD LAMP,RH

11043-1941

Unavailable

11044A

BRACKET,HEAD LAMP,LH

11043-1942

Unavailable

23004

LAMP-HEAD

23004-1171

$414.80

23005

BODY-COMP-HEAD LAMP,CR PLATED

23005-1058

$127.52

23006

RIM-LAMP

23006-1055

$88.64

23007

LENS-COMP,HEAD LAMP

23007-1115

$153.80

49016

COVER-SEAL,HEAD LAMP

49016-1046

$12.40

92002

BOLT-FLANGED-SMALL,8X40

132E0840

$7.22

92009

SCREW,4X52

92009-1033

$5.18

92009A

SCREW,5MM

92011-024

$2.58

92015

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015A

NUT,FLANGED,8MM

92015-1014

$0.65

92015B

NUT,5MM

92015-1157

$4.87

92022

WASHER

23021-010

$4.31

92027

COLLAR,L=20

92027-1131

$8.94

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER,HEAD LAMP FITTING

92075-1109

$6.22

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

$5.00

92081

SPRING,FOCUS ADJUSTING

92081-1701

$4.61

130

BOLT-FLANGED,8X25

130N0825

$7.24

220

SCREW PAN HEAD 5X10

220B0510

$0.69

461

WASHER SPRING 5MM

461F0500

$0.69

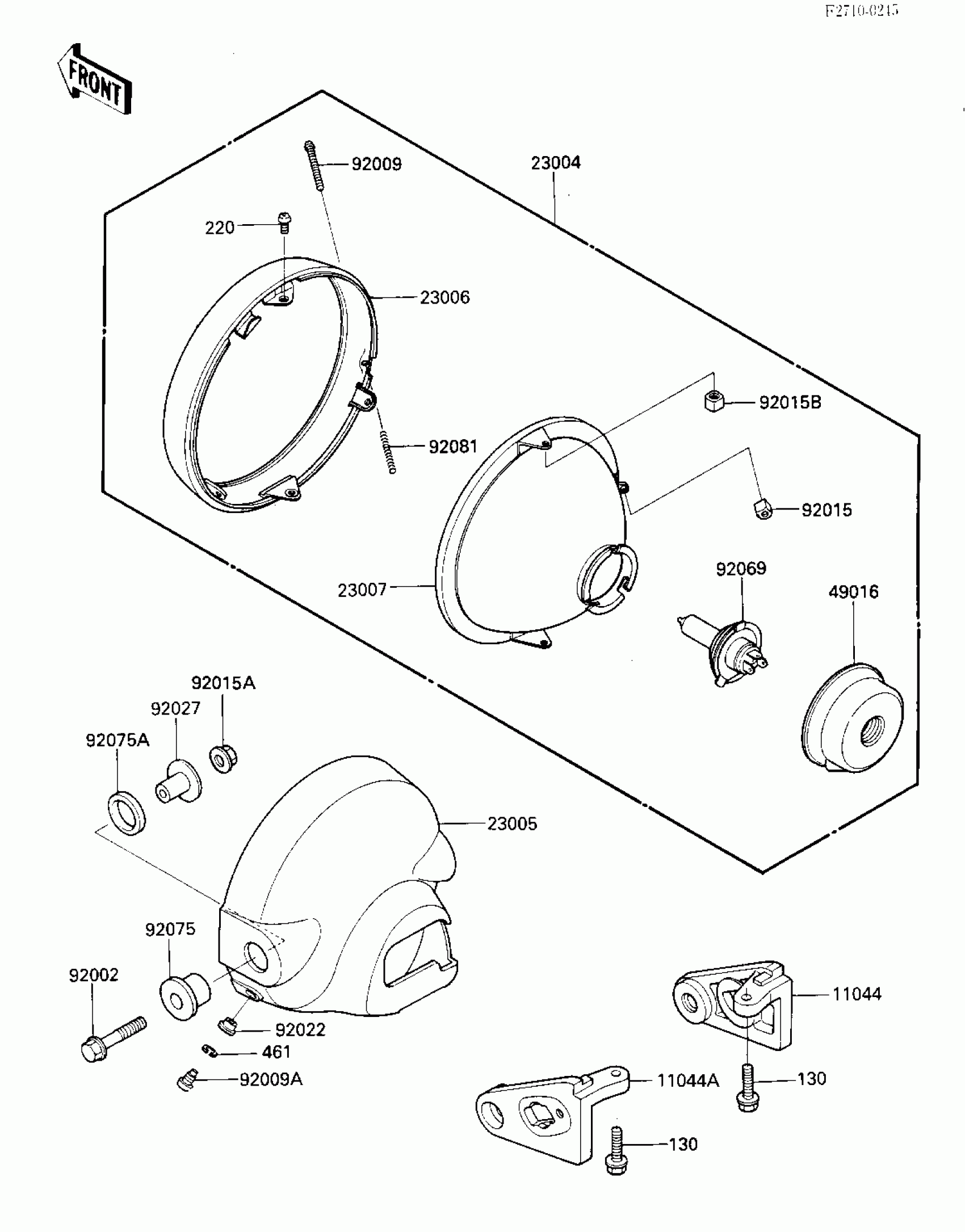

Kawasaki LTD HEADLIGHT Diagram

BRACKET,HEAD LAMP,RH

BRACKET,HEAD LAMP,LH

LAMP-HEAD

BODY-COMP-HEAD LAMP,CR PLATED

RIM-LAMP

LENS-COMP,HEAD LAMP

COVER-SEAL,HEAD LAMP

BOLT-FLANGED-SMALL,8X40

SCREW,4X52

SCREW,5MM

NUT,4MM,FOCUS ADJUST

NUT,FLANGED,8MM

NUT,5MM

WASHER

COLLAR,L=20

BULB,12V 60/55W,H4

DAMPER,HEAD LAMP FITTING

DAMPER,HEAD LAMP FITTING

SPRING,FOCUS ADJUSTING

BOLT-FLANGED,8X25

SCREW PAN HEAD 5X10

WASHER SPRING 5MM
