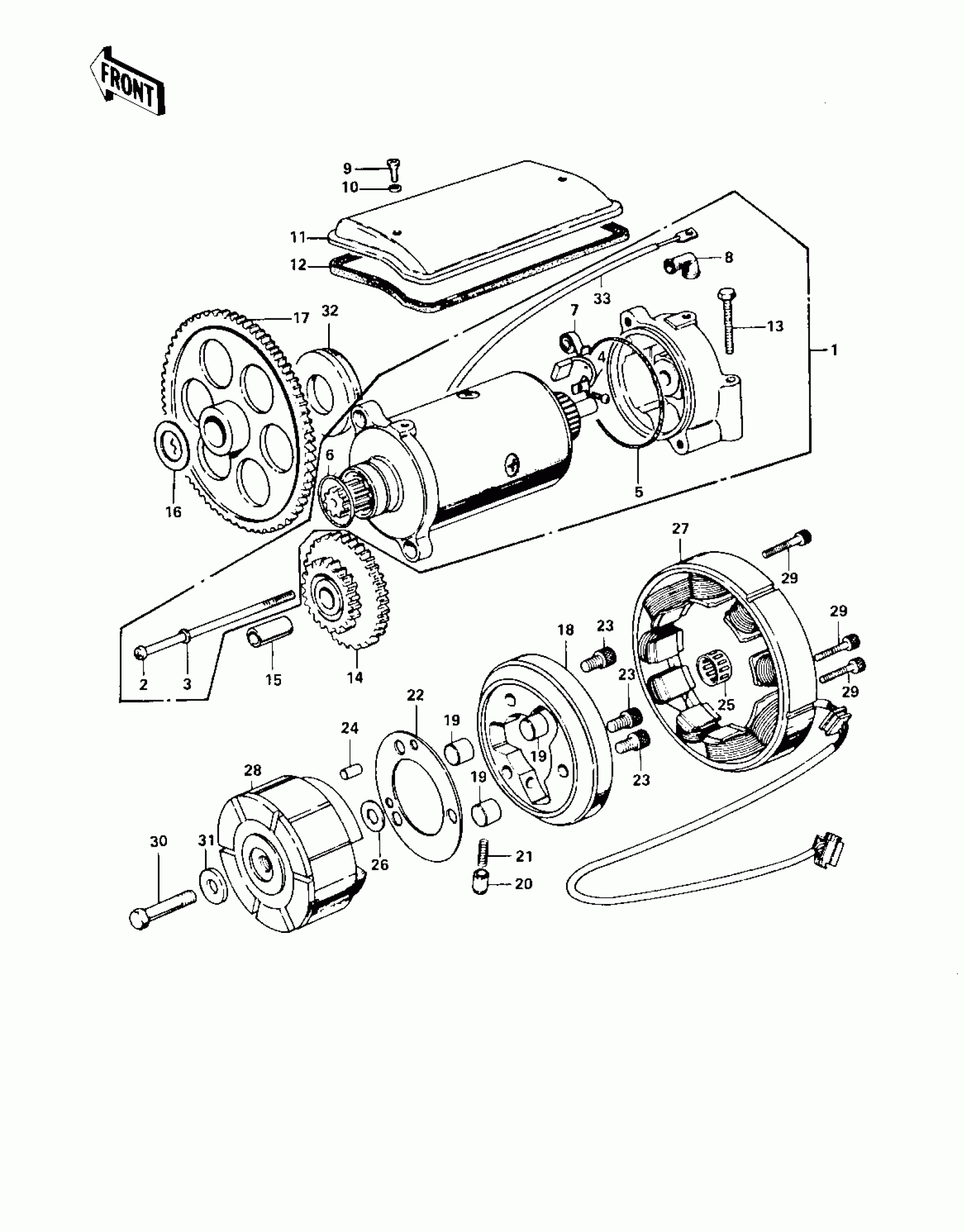

Kawasaki LTD GENERATOR/STARTER MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTER

21163-004

$363.63

2

SCREW,PAN HEAD,5X110

21015-005

$9.81

3

WASHER SPRING 6MM

461F0600

$0.69

4

BRUSH,CARBON

21039-003

$40.76

5

RING-O,STARTER MOTOR

21027-003

Unavailable

6

RING-O,STARTER MOTOR,25MM

21027-004

$9.91

7

SPRING-BRUSH

21040-003

Unavailable

8

GROMMET,STARTER TERMINAL

21017-017

$9.43

9

BOLT (6X10)

110R0610

$3.44

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

11

COVER,STARTING MOTOR

21165-001

Unavailable

12

GASKET,STARTER COVER

21166-001

$36.70

13

BOLT HEX HEAD 6X56

110B0656

Unavailable

14

GEAR-SPUR,STARTER MOTOR

21167-002

Unavailable

15

PIN

13002-007

$18.23

16

WASHER 22.1X30.7X2.0

92026-091

Unavailable

17

GEAR,STARTING CLUTCH

21167-003

Unavailable

18

CLUTCH-ASSY-ONEWAY

13193-1006

$178.91

19

ROLLER,15X14.4

92122-001

$11.60

20

PIN

92043-087

$12.76

21

SPRING

92081-110

$4.76

22

WASHER,FREE WHEEL

92026-082

Unavailable

23

BOLT-SOCKET,8X16

120P0816

$4.15

24

PIN,DOWEL,6X22

551A0622

$3.89

25

NEEDLE BEARING, K222620

92046-033

Unavailable

26

SPACER,22X35.5X1.0

92026-092

$12.48

27

STATOR ASSY

21076-023

Unavailable

28

ROTOR

21007-1004

$1,183.01

29

BOLT-SOCKET,6X35,BLACK

120S0635

$1.98

30

BOLT,8X40

115G0840

$6.00

31

WASHER 8.5X23.5X4.5

92022-218

Unavailable

32

DAMPER RUBBER 6.3T

92075-192

Unavailable

32

DAMPER RUBBER 7.3T

92075-193

Unavailable

32

DAMPER RUBBER 8.3T

92075-194

Unavailable

33

WIRE,LEAD

26010-048

$59.06
