Description

Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

GEAR BOX ASSY

41078-008

Unavailable

3

PIN,SPRING

41082-001

$3.92

4

WASHER,5.1X9X0.4

41063-001

$4.69

5

PINION,SPEEDOMETER

41060-017

Unavailable

6

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

7

GEAR-METER SCREW,26T

41059-026

$42.53

8

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

9

AXLE,FRONT

41068-049

$132.80

10

BOLT,HEX HEAD,10MM

92001-179

Unavailable

11

WASHER,LOCK

92088-023

$11.60

12

DUST COVER

41042-014

Unavailable

13

RECEIVER,GEAR

41064-013

Unavailable

14

BEARING-BALL,#6203C3

601B6203

$14.12

15

BRG ADPTR LH FR

41088-001

$87.61

16

COLLAR,FR HUB BEARIN

41039-031

$10.03

17

BRG ADPTR RH FR

41088-002

$93.98

18

RING-SNAP,40MM

92033-1040

$5.90

19

OIL SEAL

654A254008

$25.75

20

DUST COVER

41042-015

Unavailable

21

NUT-HEX-FINE,10MM

315G1000

$1.55

22

COLLAR,FRONT AXLE

41069-032

$26.55

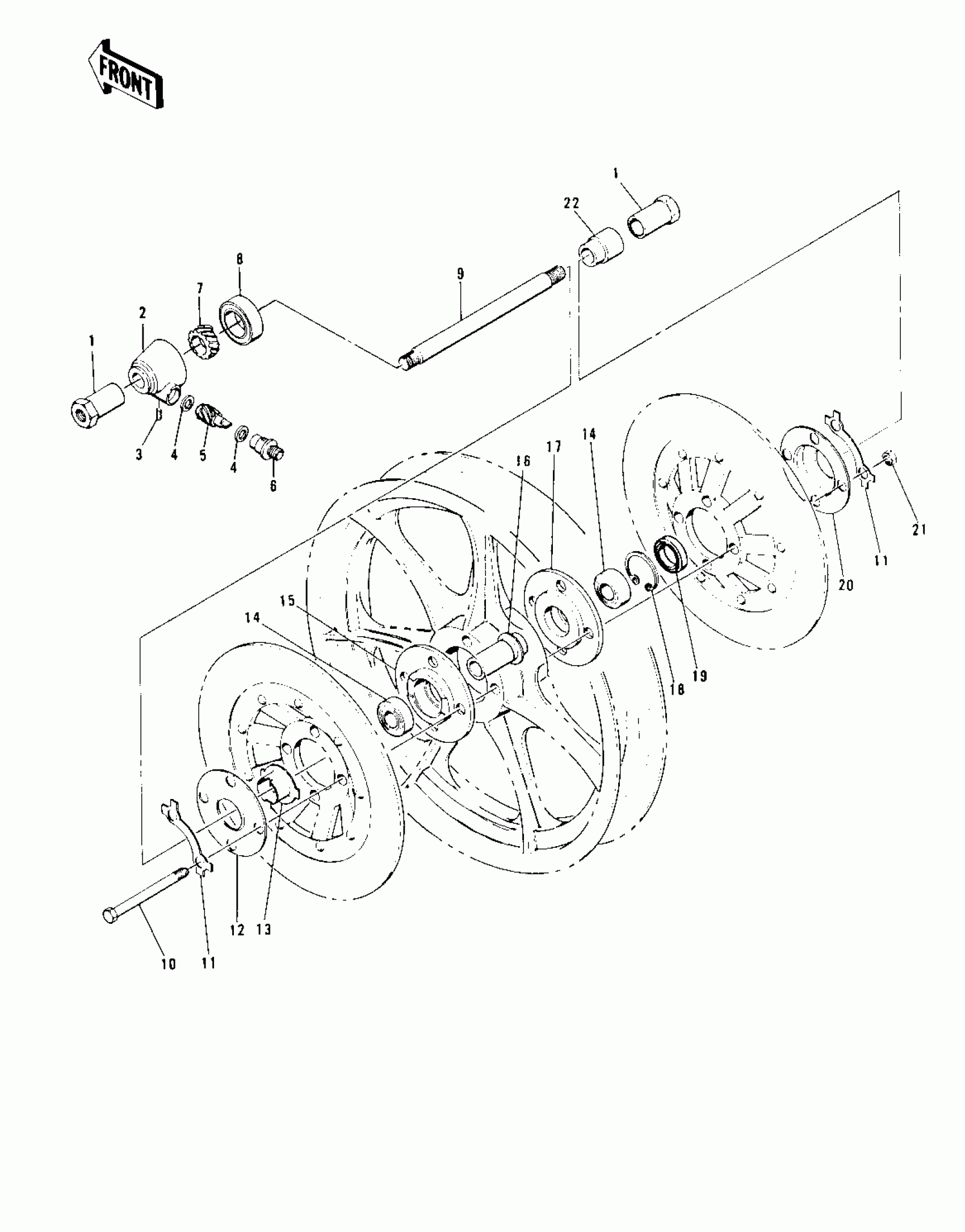

Kawasaki LTD FRONT HUB Diagram

COLLAR,FRONT AXLE

GEAR BOX ASSY

PIN,SPRING

WASHER,5.1X9X0.4

PINION,SPEEDOMETER

BUSHING,SPEEDOMETER CABLE

GEAR-METER SCREW,26T

SEAL-OIL,BJN30427-C3

AXLE,FRONT

BOLT,HEX HEAD,10MM

WASHER,LOCK

DUST COVER

RECEIVER,GEAR

BEARING-BALL,#6203C3

BRG ADPTR LH FR

COLLAR,FR HUB BEARIN

BRG ADPTR RH FR

RING-SNAP,40MM

OIL SEAL

DUST COVER

NUT-HEX-FINE,10MM

COLLAR,FRONT AXLE
