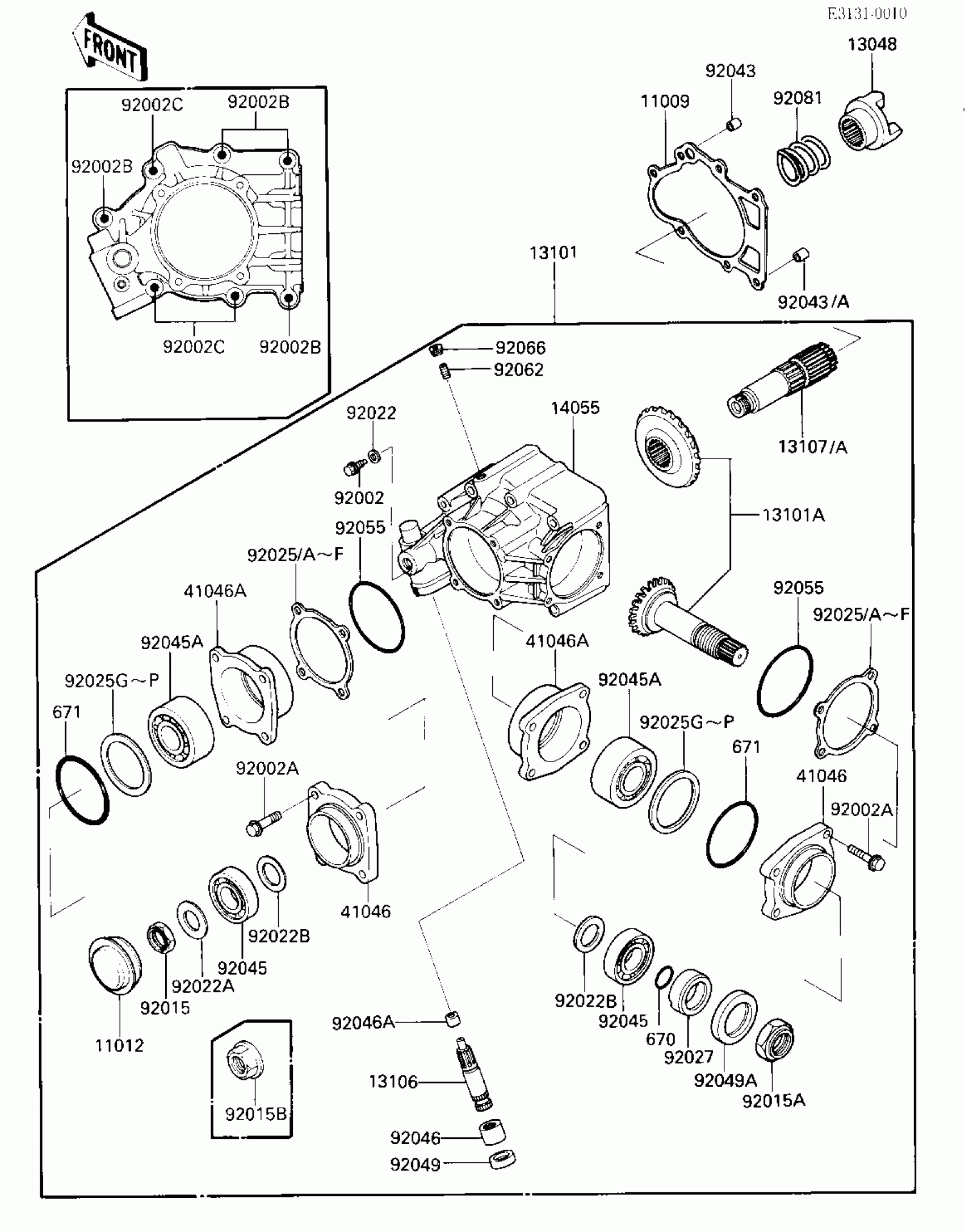

Kawasaki LTD FRONT BEVEL GEARS Diagram

#

Description
Price

11009

GASKET,GEAR CASE

11060-1086

$20.30

11012

CAP,FRONT BEVEL

11012-1715

Unavailable

13048

CAM-DAMPER

13048-1058

$98.91

13101

GEAR-ASSY,BEVEL,FR

13101-1058

Unavailable

13101A

GEAR-ASSY,BEVEL,FR

13101-5048

$750.72

13106

SHAFT-CLUTCH RELEASE

13106-1068

$40.49

13107

SHAFT,BEVEL GEAR,FR

13107-1128

Unavailable

13107A

SHAFT,BEVEL GEAR,FR

13107-1166

$139.72

14055

CASE-GEAR,BEVEL,FR

14055-1054

$408.76

41046

HOUSING-BEARING,BEVEL

41046-1061

$71.81

41046A

HOUSING-BEARING,BEVEL

41046-1070

Unavailable

92002

BOLT,FLANGED,6X9.5

92002-1356

$6.22

92002A

BOLT,6X30

92002-1574

$3.02

92002B

BOLT

92002-1579

$3.41

92002C

BOLT

92002-1580

$6.61

92015

NUT,20M/M

92015-1065

$9.13

92015A

NUT,25MM

92015-1480

$21.29

92015B

NUT

92015-1543

$19.66

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,20.3X36X2.3

92022-1116

$8.58

92022B

WASHER

92022-1719

$13.08

92025

SHIM,T=0.10

92025-1258

Unavailable

92025A

SHIM,T=0.15

92025-1259

Unavailable

92025B

SHIM,T=0.20

92025-1260

Unavailable

92025C

SHIM,T=0.30

92025-1261

Unavailable

92025D

SHIM,T=0.60

92025-1262

Unavailable

92025E

SHIM,T=0,90

92025-1263

Unavailable

92025F

SHIM,T=1.20

92025-1264

Unavailable

92025G

SHIM,52.5X61.5X0.12

92025-1668

Unavailable

92025H

SHIM,52.5X61.5X0.15

92025-1669

Unavailable

92025I

SHIM,52.5X61.5X0.18

92025-1670

Unavailable

92025J

SHIM,52.5X61.5X0.8

92025-1671

Unavailable

92025K

SHIM,52.5X61.5X0.9

92025-1672

Unavailable

92025L

SHIM,52.5X61.5X1.0

92025-1673

Unavailable

92025M

SHIM,52.5X61.5X1.1

92025-1674

Unavailable

92025N

SHIM,52.5X61.5X1.2

92025-1675

Unavailable

92025O

SHIM,52.5X61.5X1.3

92025-1676

Unavailable

92025P

SHIM,52.5X61.5X1.4

92025-1677

Unavailable

92027

COLLAR

92027-1843

$37.01

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL,6205

92045-1115

$25.87

92045A

BEARING-BALL,5305SH2CD2

92045-1147

$98.43

92046

BEARING-NEEDLE,7E-HK1412

92046-037

$21.68

92046A

BEARING-NEEDLE,HK0709

92046-1142

$15.08

92049

SEAL-OIL,TC14244.8

92049-1037

$9.89

92049A

SEAL-OIL,TC35527

92049-1038

$17.95

92055

RING-O

92055-1306

$11.91

92062

NOZZLE,BLACK

92062-011

$8.58

92066

PLUG,OIL LINE

92066-1221

$5.66

92081

SPRING

92081-1552

$40.34

670

O RING,21MM

670B2021

$4.69

671

O RING,65MM

671B2565

$8.86
