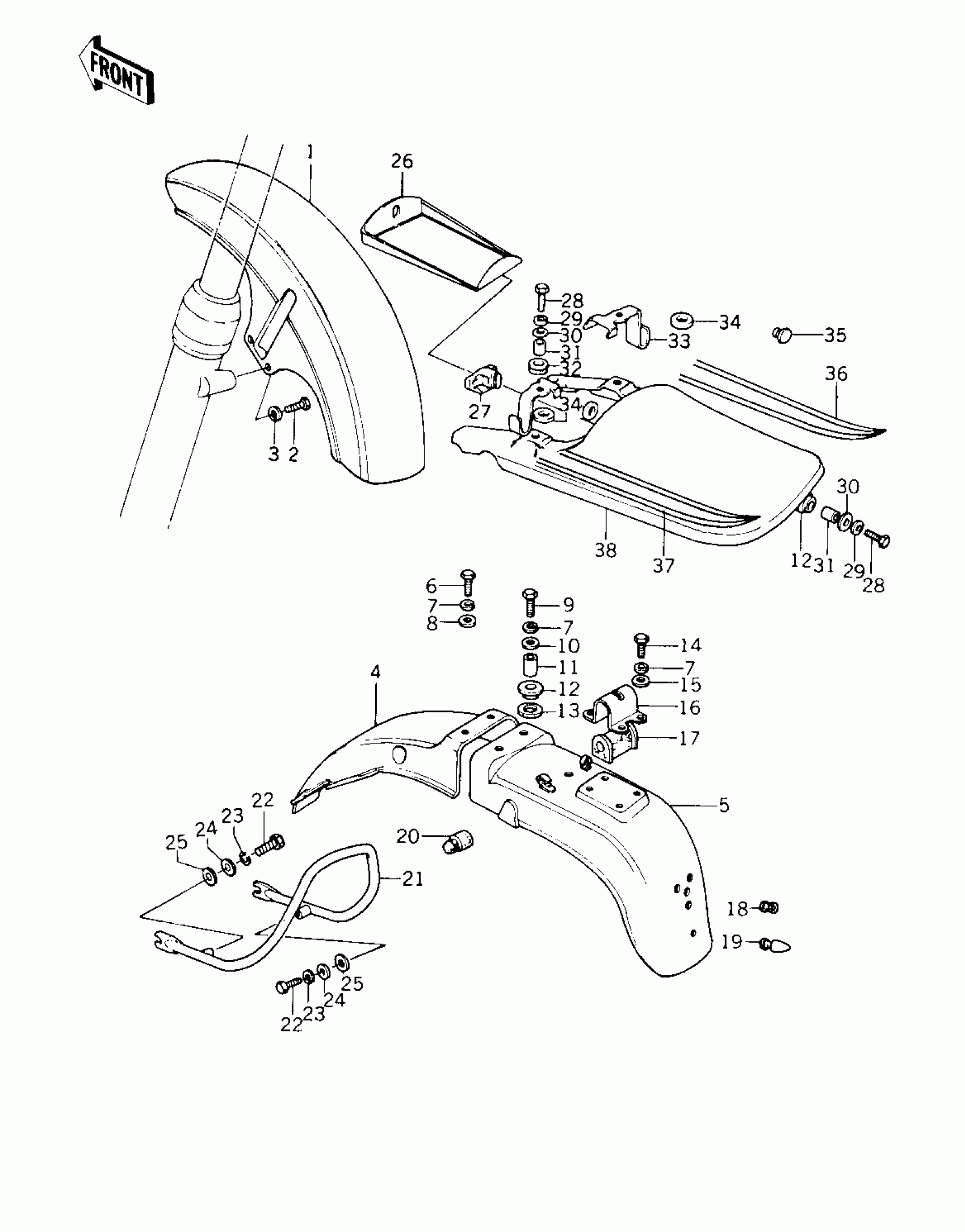

Kawasaki LTD FENDERS/SEAT COVER Diagram
#
Description
Price
1
FENDER-FR
35004-1047
$430.01
1
FENDER-FR
35004-1047
$430.01
2
BOLT-UPSET,6X16
112G0616
$1.10
3
WASHER SPRING 6MM
461F0600
$0.69
4
FENDER-RR
35022-137
Unavailable
5
FENDER-RR
35022-151
$168.43
6
BOLT-UPSET 6X14
112B0614
Unavailable
7
WASHER SPRING 6MM
461F0600
$0.69
8
WASHER PLAIN
92022-024
$3.65
9
BOLT-HEX HEAD,6X32
110N0632
Unavailable
10
WASHER,7X24X1.6
92022-228
$3.92
11
COLLAR,6.8X10X12
92027-162
$6.57
12
RUBBER,FENDER COVER
92075-174
$4.78
13
DAMPER,FEMALE
92075-175
$4.39
14
BOLT-UPSET,6X16
112G0616
$1.10
15
WASHER PLAIN 6MM
411B0600
$2.84
16
UNAVAILABLE IN PRICE BOOK
36026-006
Unavailable
17
DAMPER RUBBER,RR FEN
92075-132
Unavailable
18
GROMMET,10MM
92071-019
$3.89
19
RUBBER,LICENSE PLATE
92075-176
Unavailable
20
DAMPER RUBBER,RR FEN
92075-135
$5.59
21
REAR STAY
35032-040
Unavailable
22
BOLT-UPSET,10X22
112B1022
$4.76
23
WASHER SPRING 10MM
461F1000
$0.67
24
WASHER-PLAIN,10MM
411B1000
$0.93
25
WASHER,10.5X26X2.3
92022-044
$3.92
26
CASE
32099-018
Unavailable
27
PLUG,CASE RUBBER
92074-024
Unavailable
28
BOLT-UPSET
112G0625
$3.62
29
WASHER SPRING 6MM
461F0600
$0.69
30
WASHER,7X24X1.6
92022-228
$3.92
31
COLLAR,6.8X10X12
92027-162
$6.57
32
RUBBER,FENDER COVER
92075-174
$4.78
33
BRACKET,HELMET HOLDER
32122-010
Unavailable
34
DAMPER,FEMALE
92075-175
$4.39
35
PLUG,BACKREST HOLE
92074-022
Unavailable
36
DECAL RH TAIL
56029-137
$20.65
37
DECAL LH TAIL
56029-136
$20.65
38
REAR FENDER COVER
53043-013-8B
$111.67
