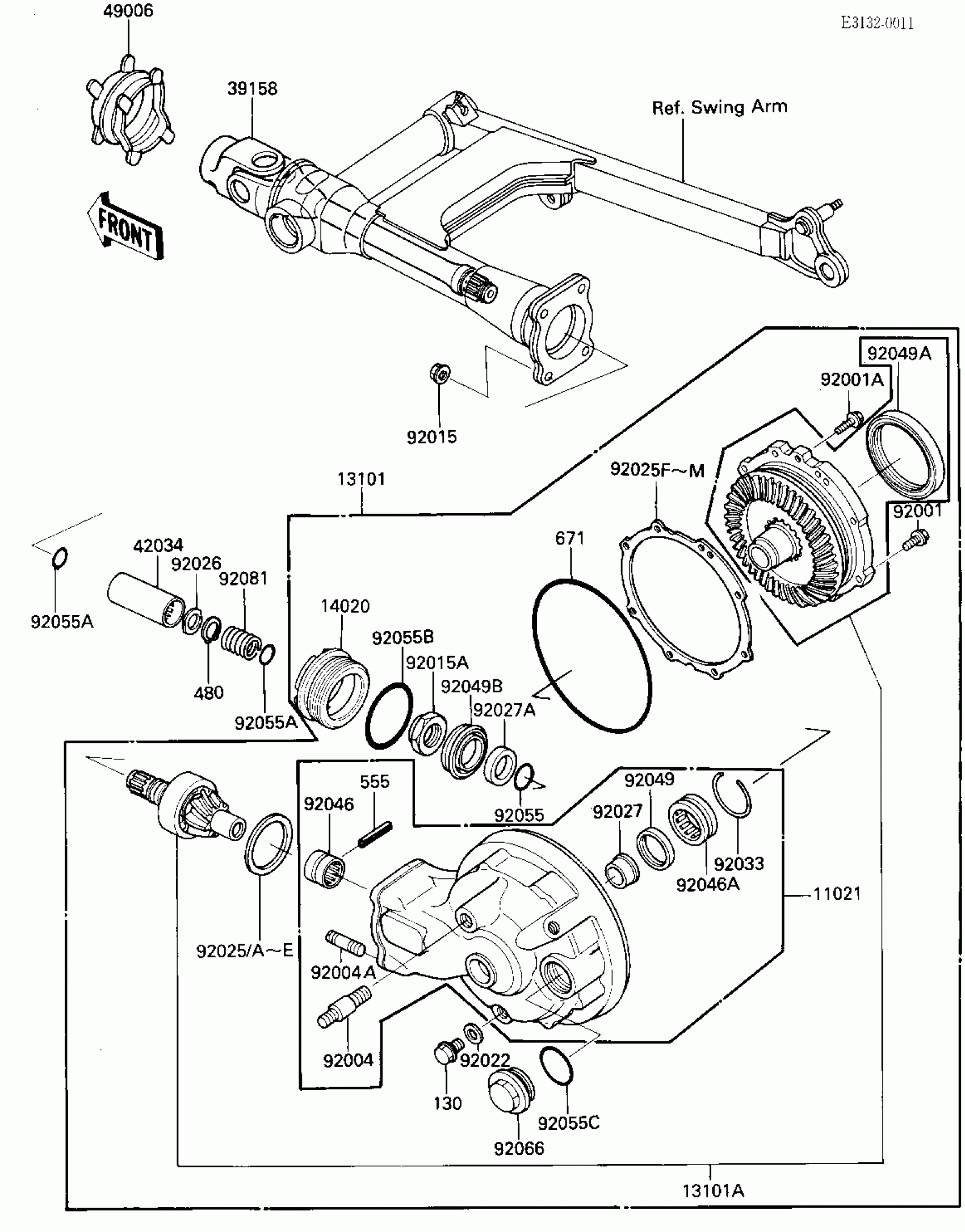

Kawasaki LTD DRIVE SHAFT/FINAL GEARS Diagram
#
11021
CASE-ASSY,FINAL GEAR,
11021-1054-F2
Unavailable
13101
GEAR-ASSY,FINAL,M.SILVER
13101-1124-7J
$1,862.30
13101A
GEAR-ASSY,FINAL BEVEL
13101-5064
Unavailable
14020
RETAINER
14020-1055
$83.85
39158
SHAFT-ASSY-DRIVE
39158-1052
$361.92
42034
COUPLING,DRIVE SHAFT,OUTER
42034-1035
$135.39
49006
BOOT,PROPELLER SHAFT
49006-1173
$36.66
92001
BOLT,FLANGED,8X28
92001-1095
$6.57
92001A
BOLT,FLANGED,10X24
92001-1110
$5.88
92004
STUD,RR SHOCKABSORBER
92004-1047
$15.74
92004A
STUD,8X20
92004-1159
$5.41
92015
NUT,FLANGED,8MM
92015-1408
$5.38
92015A
NUT,25MM
92015-1241
$22.14
92022
WASHER,8.2X16X1
92022-1086
$3.92
92025
SHIM,50X61X0.10
92025-1519
Unavailable
92025A
SHIM,50X61X0.15
92025-1520
Unavailable
92025B
SHIM,50X61X0.20
92025-1521
Unavailable
92025C
SHIM,50X61X0.30
92025-1522
Unavailable
92025D
SHIM,50X61X0.40
92025-1523
Unavailable
92025E
SHIM,50X61X0.50
92025-1524
Unavailable
92025F
SHIM,T=0.15
92025-1525
Unavailable
92025G
SHIM,T=0.50
92025-1526
Unavailable
92025H
SHIM,T=0.60
92025-1527
Unavailable
92025I
SHIM,T=0.70
92025-1528
Unavailable
92025J
SHIM,T=0.80
92025-1529
Unavailable
92025K
SHIM,T=0.90
92025-1530
Unavailable
92025L
SHIM,T=1.00
92025-1531
Unavailable
92025M
SHIM,T=1.20
92025-1532
Unavailable
92026
SPACER,DRIVE SHAFT
92026-1129
$8.21
92027
COLLAR
92027-1412
$33.67
92027A
COLLAR
92027-1937
$23.29
92033
RING-SNAP,50.4MM
92033-1187
$5.17
92046
BEARING-NEEDLE,NK22/20R
92046-1131
$44.57
92046A
BEARING-NEEDLE,KN35/20R
92046-1132
$63.44
92049
SEAL-OIL,S3141 5.5
92049-1210
$17.56
92049A
SEAL-OIL,S75 9510
92049-1212
$32.95
92049B
SEAL-OIL,SD 35 48 8 L HS
92049-1234
$33.23
92055
RING-O
92055-035
$5.00
92055A
RING-O,ID=18.64
92055-1044
$4.78
92055B
RING-O,61.6MM
92055-1280
$11.07
92055C
RING-O,35.8MM
92055-1281
$7.34
92066
PLUG,OIL FILLER CAP,M.SILVER
92066-1006-7J
$16.53
92081
SPRING,DRIVE SHAFT
92081-1717
Unavailable
130
BOLT-FLANGED,8X12
130X0812
Unavailable
480
CIRCLIP-TYPE-C,16MM
480J1600
$4.31
555
PIN-SPRING
555A0428
$2.30
671
O RING
671B25145
$20.98
