Description

Price

1

CYLINDER,BARREL

11005-136-2H

Unavailable

2

GASKET,CYLINDER BASE

11009-030

Unavailable

3

"O" RING,73MM

92055-054

$21.81

4

PIN,DOWEL,10X14

92043-1037

$0.74

5

PIN,11X14X12.3

92043-1266

$1.08

6

PISTON,STD

13001-054

Unavailable

6

PISTON,0.50MM 0.S

13029-058

Unavailable

6

PISTON,1.00MM 0.S

13027-056

Unavailable

7

RING SET,STD

13008-5005

$111.09

7

RING SET,0.020'0.S

13025-5004

Unavailable

7

RING SET,0.040'0.S

13024-5005

Unavailable

8

PIN-PISTON

13002-022

$58.36

9

CIRCLIP,PISTON PIN

92036-021

$0.49

10

CRANKSAFT ASSY

13031-043

Unavailable

11

KEY,WOODRUFF

92038-001

$4.96

12

GASKET,CYLINDER RUBE

92055-062

$153.96

13

RUBBER PLUG,CYLINDER

92074-030

Unavailable

14

BUSHING,CRANKSHAFT

92028-121

Unavailable

15

BRG,N,PK304016.8X3

92046-063

Unavailable

16

SPACER,30X38X1.0

92026-079

$8.86

17

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

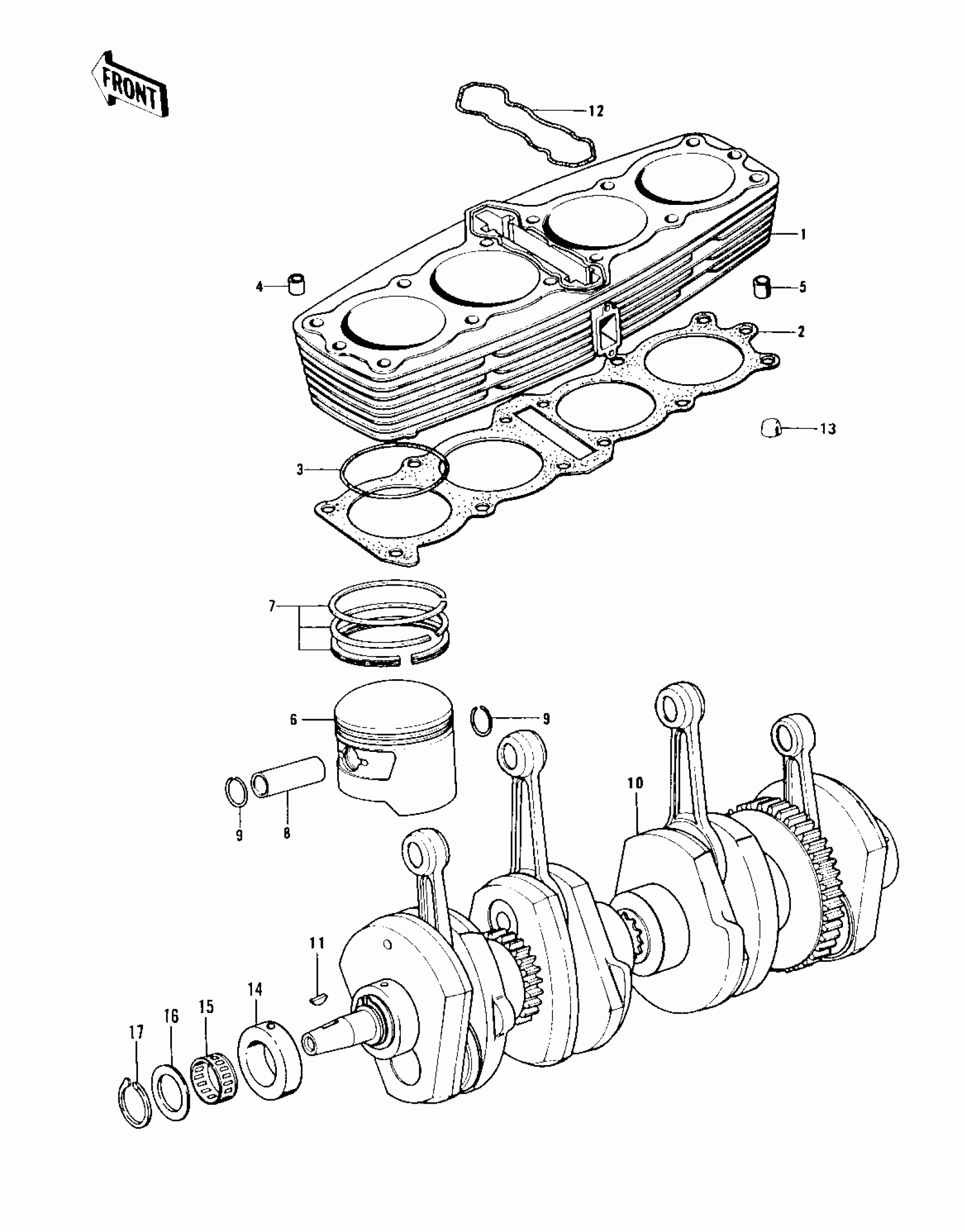

Kawasaki LTD CYLINDER/PISTONS/CRANKSHAFT Diagram

CYLINDER,BARREL

GASKET,CYLINDER BASE

"O" RING,73MM

PIN,DOWEL,10X14

PIN,11X14X12.3

PISTON,STD

PISTON,0.50MM 0.S

PISTON,1.00MM 0.S

RING SET,STD

RING SET,0.020'0.S

RING SET,0.040'0.S

PIN-PISTON

CIRCLIP,PISTON PIN

CRANKSAFT ASSY

KEY,WOODRUFF

GASKET,CYLINDER RUBE

RUBBER PLUG,CYLINDER

BUSHING,CRANKSHAFT

BRG,N,PK304016.8X3

SPACER,30X38X1.0

CIRCLIP-TYPE-C,30MM
