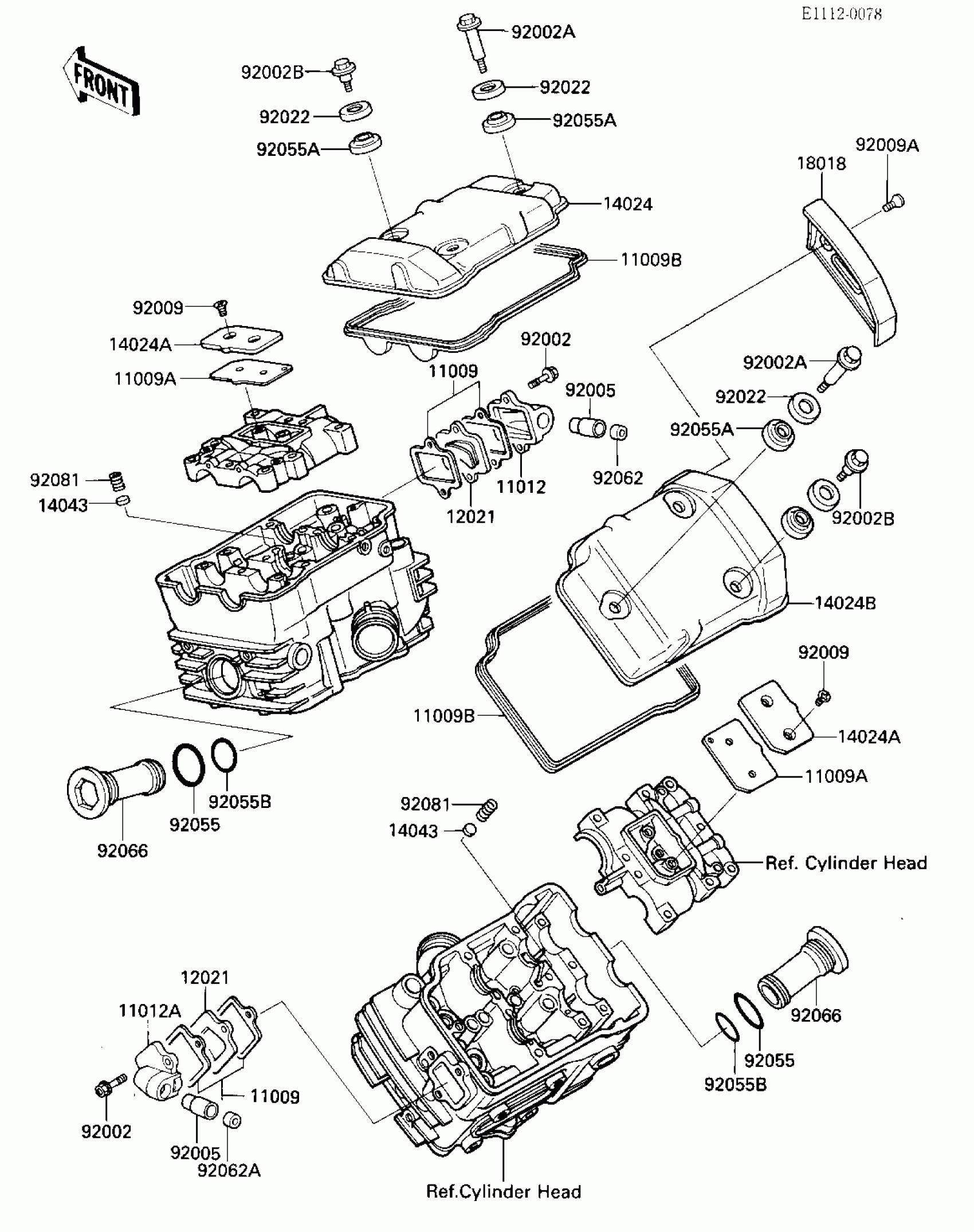

Kawasaki LTD CYLINDER HEAD COVERS Diagram
#
Description
Price
11009
GASKET,REED VALVE
11009-1879
$6.89
11009A
GASKET,SEPARATER COVER
11009-1507
Unavailable
11009B
GASKET,CYLINDER HEAD COVER
11009-1508
$51.90
11012
CAP,REED VALVE
11012-1310
$34.26
11012A
CAP,REED VALVE
11012-1464
Unavailable
12021
VALVE-ASSY-REED
12021-1011
$71.48
14024
COVER,CYLINDER HEAD,FR
14024-1089
Unavailable
14024A
COVER,SEPARATER
14025-1738
$19.56
14024B
COVER,CYLINDER HEAD,RR
14025-1739
Unavailable
14043
FILTER,OIL
14043-1056
$10.30
18018
PLATE-HEAT GUARD
18018-1063
$46.57
92002
BOLT,6X20
92001-1947
$4.34
92002A
BOLT,FLANGED,6X35.5X16
92002-1421
$20.98
92002B
BOLT,FLANGED,6X23.5
92150-1447
$4.60
92005
FITTING,REED VALVE
92005-1006
$9.80
92009
SCREW,6X10
92009-1363
$5.24
92009A
SCREW,6X16
92009-1393
$4.31
92022
WASHER,HEAD COVER BOLT
92022-1637
$5.78
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,HEAD COVER BOLT
92055-1225
$7.62
92055B
RING-O,27.7X1.9
92055-1272
$5.52
92062
NOZZLE
92062-1059
$3.29
92062A
NOZZLE
92062-1059
$3.29
92066
PLUG,CYLINDER HEAD
92066-1212
$56.17
92081
SPRING,OIL FILTER
92081-1776
$6.10
