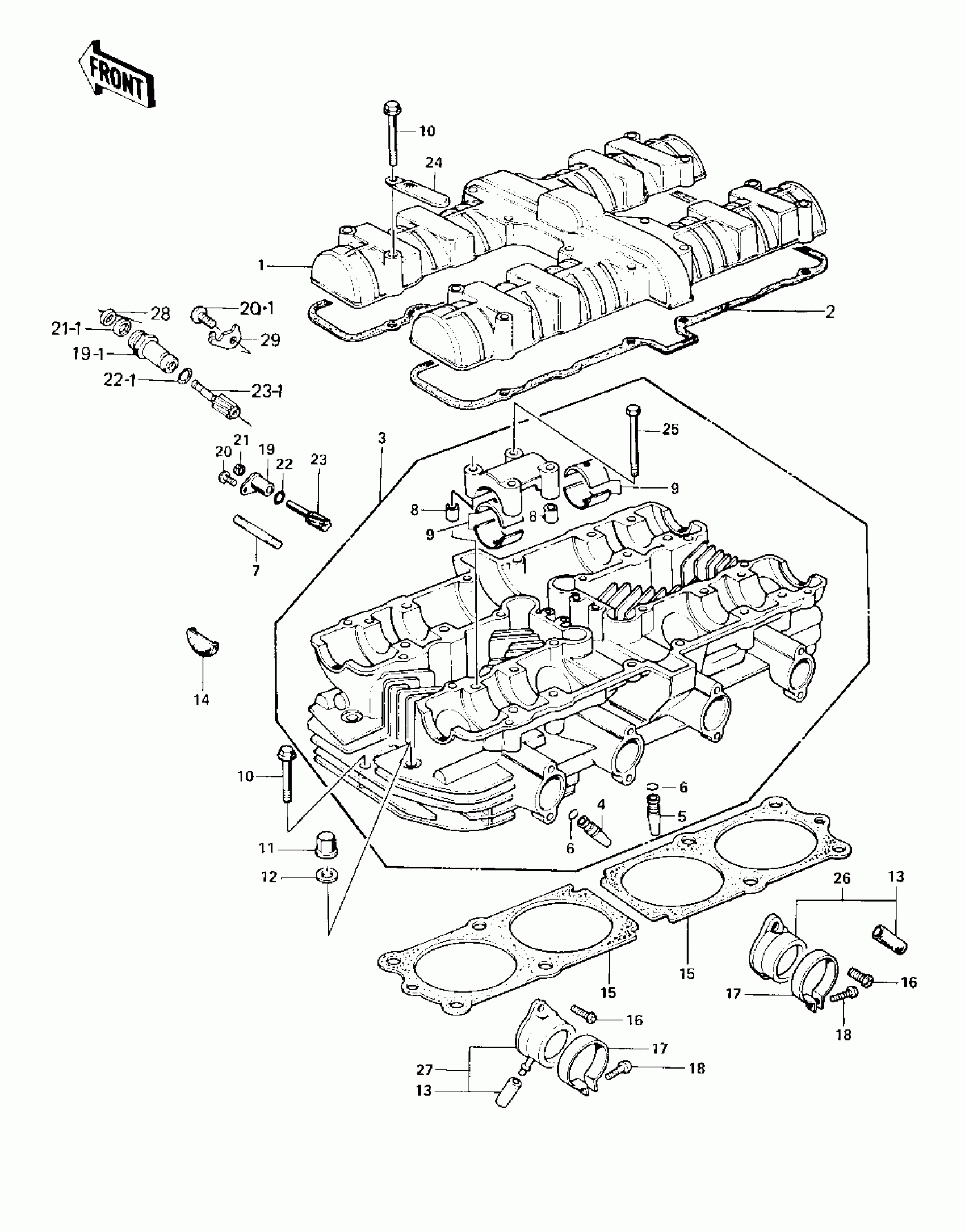

Kawasaki LTD CYLINDER HEAD/COVER Diagram

#

Description
Price

1

COVER,CYLINDER HEAD

11022-012-2H

Unavailable

2

GASKET,CYL HEAD COVE

11023-006

Unavailable

3

CYLINDER HEAD,BARREL FINISH

11002-016-2H

Unavailable

4

GUIDE,INLET VALVE

12013-001

Unavailable

4

GUIDE,INLET VALVE

12013-001

Unavailable

5

GUIDE, EXHAUST VALVE

12013-002

$91.49

5

GUIDE, EXHAUST VALVE

12013-002

$91.49

6

RING-SNAP,VALVE GUIDE

92036-023

$0.48

7

STUD,6X46

92004-049

$10.26

8

PIN,DOWEL,6.3X8X14

92042-007

$5.70

9

BUSHING,CAMSHAFT

13034-030

$22.16

10

BOLT,FLANGED,6X45

92003-092

$7.58

11

NUT,FLANGED CAP,10MM

92015-076

$13.08

12

WASHER,PLAIN,10MM

92022-215

$9.64

13

PLUG,12X25

92068-006

$4.26

14

PLUG,CAM SHAFT

92066-017

Unavailable

15

GASKET,CYLINDER HEAD

11004-066

Unavailable

16

SCREW PAN HEAD 6X18

220B0618

$3.67

17

CLAMP,HOLDER

92037-077

$12.00

18

SCREW-PAN-CROS

220B0520

$0.68

19

GUIDE,TACHOMETER GEA

92087-5001

Unavailable

19-1

GUIDE,TACHOMETER GEAR

92087-010

$24.19

20

SCREW PAN HEAD 6X12

220B0612

Unavailable

20-1

SCREW PAN HEAD 6X10

220B0610

$3.14

21

SEAL-OIL

92050-075

$11.39

21-1

SEAL-OIL

92050-075

$11.39

22

O RING,9.8X1.9

670B1510

$4.31

22-1

RING-O,10MM

92055-1149

$6.57

23

GEAR,TACHOMETER,10T

13223-011

Unavailable

23-1

GEAR,TACHOMETER,10T

13223-011

Unavailable

24

CLAMP,WIRING HARNESS

21126-008

$4.73

25

BOLT,FLANGED,6X45

92003-092

$7.58

26

HOLDER-R.H CARBRETOR

16065-028

$100.50

27

HOLDER,CARBURETOR,L.

16065-029

$100.50

28

GASKET,TACHOMETER GEAR

92065-103

$4.07

29

PLATE,STOPPER

13169-015

Unavailable
