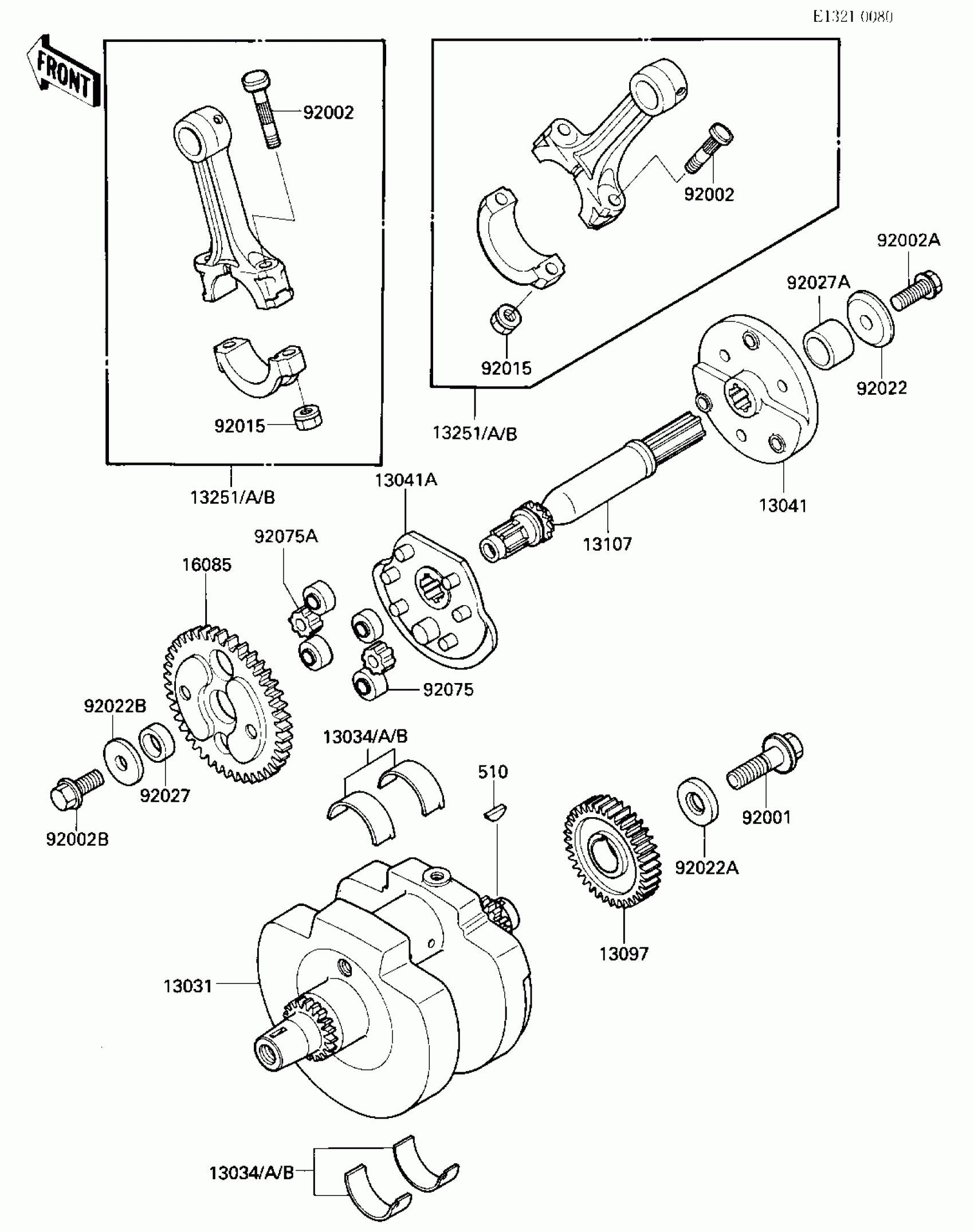

Kawasaki LTD CRANKSHAFT/BALANCER Diagram

#

Description
Price

13031

CRANKSHAFT-COMP

13031-1202

$1,144.10

13034

METAL,CONNECTING ROD,BLUE

13034-1057

Unavailable

13034A

METAL,CONNECTING ROD,BLACK

13034-1058

Unavailable

13034B

METAL,CONNECTING ROD,BROWN

13034-1059

Unavailable

13041

BALANCER,RH

13041-1065

$156.42

13041A

BALANCER,LH

13041-1068

$122.28

13097

GEAR-PRIMARY SPUR,35T

13097-1129

$106.72

13107

SHAFT,BALANCER

13107-1146

$178.58

13251

ROD-ASSY-CONNECTING,G

13251-1055-GG

Unavailable

13251A

ROD-ASSY-CONNECTING,I

13251-1055-II

Unavailable

13251B

ROD-ASSY-CONNECTING,I

13251-1055-II

Unavailable

16085

GEAR,BALANCER,42T

16085-1148

$204.37

92001

BOLT,FLANGED,12X40

92001-1146

$9.91

92002

BOLT,CONNECTING ROD

92002-1405

$9.58

92002A

BOLT,10X25

92002-1635

$7.24

92002B

BOLT,10X25

92002-1636

$8.21

92015

NUT,CONNECTING ROD

92015-1481

$7.62

92022

WASHER

92022-1631

$14.64

92022A

WASHER,12X32X6

92022-1639

$23.49

92022B

WASHER,10X32X4.5

92022-1641

$11.37

92027

COLLAR,16X24X8.5

92027-1859

$30.83

92027A

COLLAR,20X28X19.5

92027-1860

$37.01

92075

DAMPER

92075-1747

$14.64

92075A

DAMPER

92075-1748

$17.56

510

WOODRUFF KEY

510A5100

$2.70
