Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

11044

BRACKET,CANISTER

11043-1168

$44.04

11044A

BRACKET,CANISTER

11044-1056

$14.45

13091

HOLDER,CANISTER

13091-1343

$53.26

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92002

BOLT,FLANGED,6X12

92002-1433

$2.34

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-072

$7.22

92037B

CLAMP-HOSE

92037-1104

$1.45

92037C

CLAMP,CANISTER

92037-1512

$6.57

92059

TUBE,4X9X110

92059-1131

Unavailable

92059A

TUBE,7X12X540,GREEN

92059-1415

$41.13

92059B

TUBE,5X8X980,BLUE

92059-1420

Unavailable

92059C

TUBE,5X8X230,BLUE

92059-1566

$14.32

92059D

TUBE,5X8X980,BLUE

92059-1420

Unavailable

92059E

TUBE,4X9X420,WHITE

92059-1568

$10.19

92071

GROMMET,10MM

92071-019

$3.89

92072

BAND,L=50

92072-066

$16.08

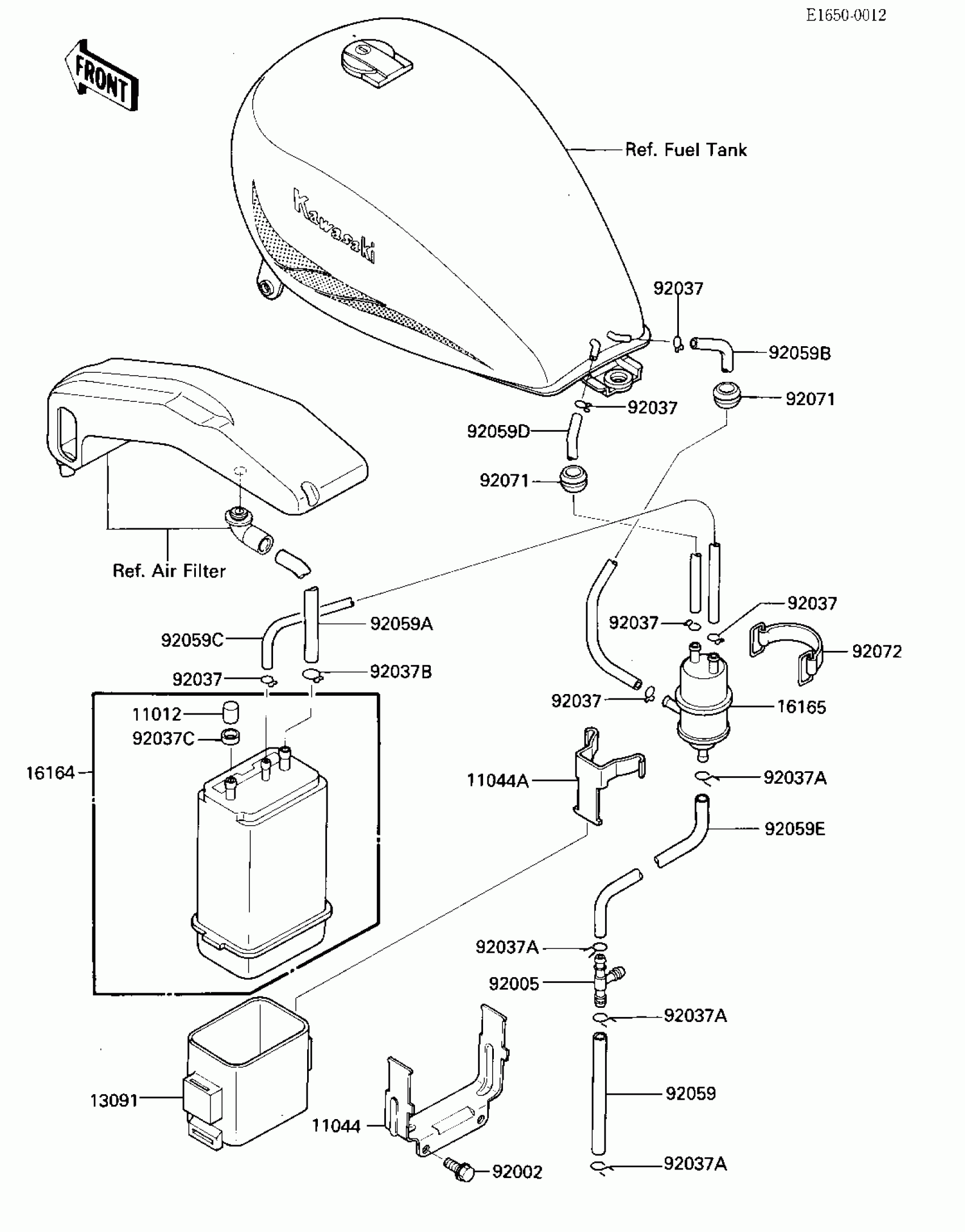

Kawasaki LTD CANISTER Diagram

CAP,CANISTER

BRACKET,CANISTER

BRACKET,CANISTER

HOLDER,CANISTER

CANISTER

SEPARATOR

BOLT,FLANGED,6X12

FITTING,TUBE,T-TYPE

CLAMP,TUBE

CLAMP,TUBE

CLAMP-HOSE

CLAMP,CANISTER

TUBE,4X9X110

TUBE,7X12X540,GREEN

TUBE,5X8X980,BLUE

TUBE,5X8X230,BLUE

TUBE,5X8X980,BLUE

TUBE,4X9X420,WHITE

GROMMET,10MM

BAND,L=50
