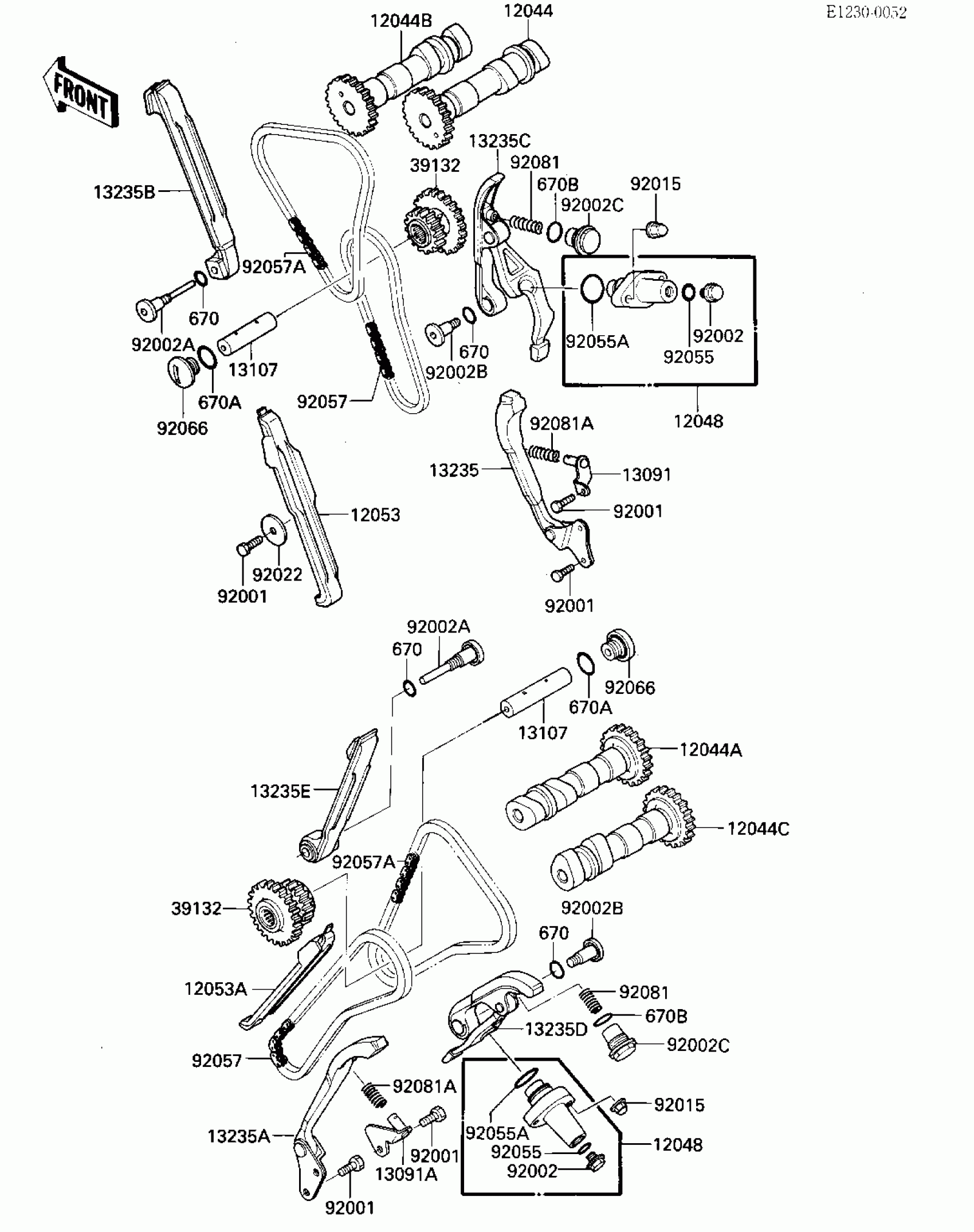

Kawasaki LTD CAMSHAFTS/CHAIN/TENSIONER Diagram
#
Description
Price
12044
CAMSHAFT-VALVE,INTAKE,FR
12044-1144
Unavailable
12044A
CAMSHAFT-VALVE,INTAKE,RR
12044-1145
Unavailable
12044B
CAMSHAFT-VALVE,EXHAUST,FR
12044-1146
Unavailable
12044C
CAMSHAFT-VALVE,EXHAUST,RR
12044-1147
Unavailable
12048
TENSIONER-ASSY
12048-1069
Unavailable
12053
GUIDE-CHAIN,FR,LWR
12053-1161
$67.41
12053A
GUIDE-CHAIN,RR,LWR
12053-1162
$67.41
13091
HOLDER,CHAIN GUIDE,FR
13091-1367
$17.40
13091A
HOLDER,CHAIN GUIDE,RR
13091-1368
$17.40
13107
SHAFT,IDLER
13107-1145
$37.01
13235
GUIDE-COMP,FR,LWR
13235-1051
$121.16
13235A
GUIDE-COMP,RR,LWR
13235-1052
$121.16
13235B
GUIDE-COMP,FR,UPP
13235-1053
$121.16
13235C
GUIDE-COMP,FR,UPP
13235-1054
$292.91
13235D
GUIDE-COMP,RR,UPP
13235-1055
$292.91
13235E
GUIDE-COMP,RR,UPP
13235-1056
$121.16
39132
SPROCKET-ASSY-IDLER
39132-1053
$146.81
92001
BOLT,6X16
92001-1457
$5.00
92002
BOLT,TENSIONER
92002-1302
$7.69
92002A
BOLT
92002-1497
$18.09
92002B
BOLT
92002-1498
$18.42
92002C
BOLT,TENSIONER
92002-1499
$21.09
92015
NUT,CAP,6MM,BLACK
92015-1170
$0.64
92022
WASHER,7X27X1.6
92022-227
$4.69
92055
O RING,10MM
670D2010
$1.94
92055A
O RING,21MM
670D2021
$6.85
92057
CHAIN,LWR,75RH2015X82L
92057-1192
$89.02
92057A
CHAIN,UPP,79RH2020X82L
92057-1193
$98.80
92066
PLUG,IDLE
92066-1196
$2.55
92081
SPRING,TENSIONER
92081-1380
$8.14
92081A
SPRING
92081-1837
$5.54
670
O RING,11MM
670B2011
$1.28
670A
O RING,16MM
670B2016
$1.36
670B
O RING,18MM
670B2018
$1.42
