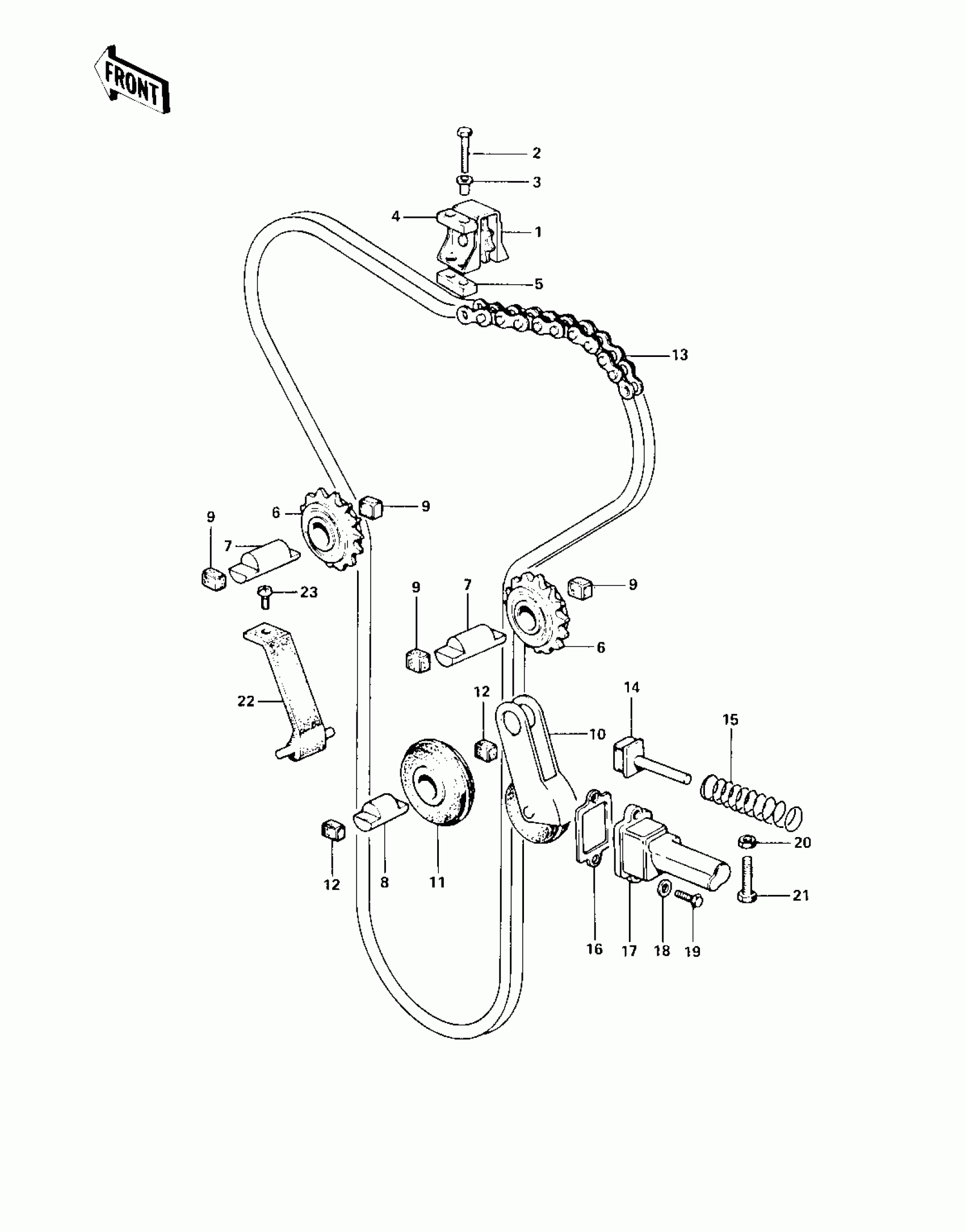

Kawasaki LTD CAM CHAIN/TENSIONER Diagram

#

Description
Price

1

IDLER ASSY,CAM CHAIN

12057-001

$399.27

2

BOLT-UPSET,6X35

112G0635

Unavailable

3

COLLAR

92027-155

$8.19

4

RUBBER,IDLER

92075-119

$25.08

5

RUBBER,IDLER

92075-120

$25.08

6

IDLER ASSY

12057-002

$323.46

7

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$32.94

8

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$14.37

9

DAMPER,IDLER SHAFT

92075-232

$5.72

10

TENSIONER ASSY,CHAIN

12048-001

$142.80

11

ROLLER,CAM CHAIN GUI

12055-002

$48.50

12

DAMPER RUBBER

92075-123

$9.51

13

CHAIN,CAM SHAFT

21070-003

$479.96

14

PUSH ROD,CAM CHAIN

12054-001

Unavailable

15

SPRING,TENSTIONER

92081-107

$16.71

16

GASKET,TENSIONER

11009-1980

$5.54

16

GASKET,TENSIONER

11009-1980

$5.54

17

HOLDER,TENSIONER

12049-1003

Unavailable

17

HOLDER,TENSIONER

12049-1003

Unavailable

18

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

19

BOLT-UPSET,6X20

112G0620

$2.12

20

NUT 6MM

311B0600

$0.93

21

BOLT,TENSIONER ADJUS

92003-093

Unavailable

22

GUIDE,CAM CHAIN

12053-019

$48.05

23

SCREW PAN HEAD 6X10

220B0610

$3.14
