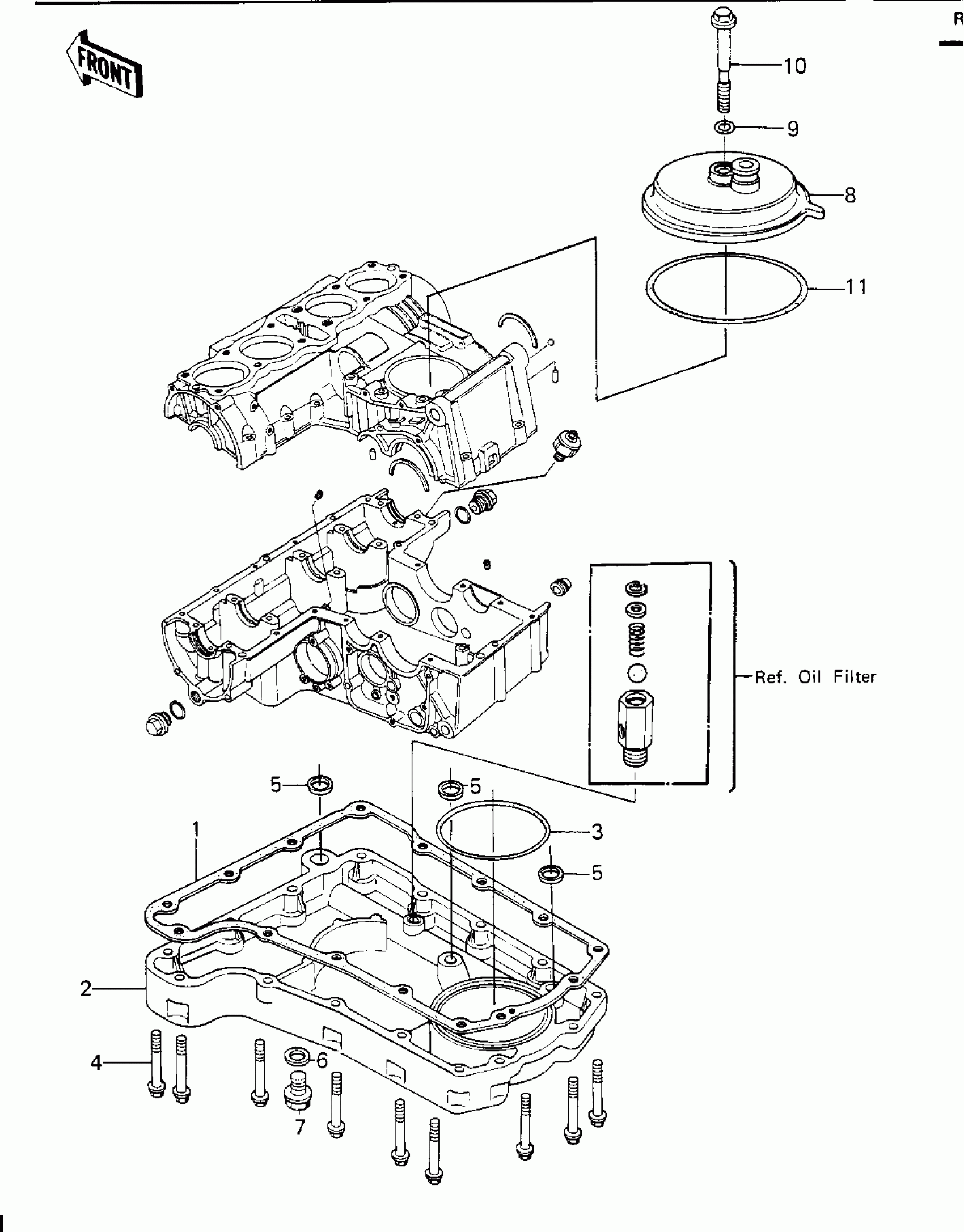

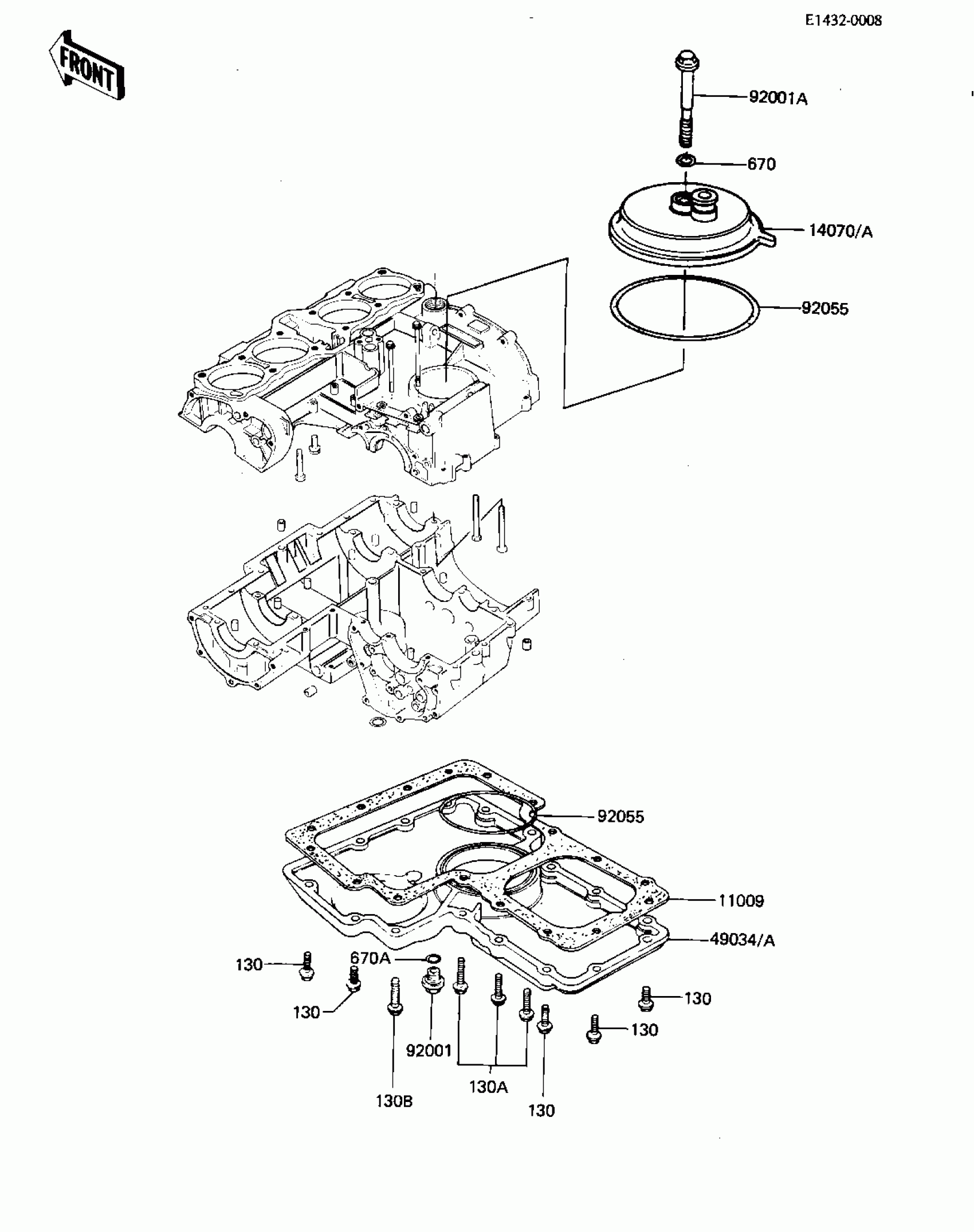

Kawasaki LTD BREATHER COVER/OIL PAN Diagram

Description

Price

11009

GASKET,OIL PAN

11060-1074

Unavailable

14070A

BODY-BREATHER

14070-1008

$39.70

49034

PAN-OIL

49034-5020

$265.23

49034A

PAN-OIL

49034-5020

$265.23

92001

PLUG,OIL DRAIN

92001-1183

$54.58

92001A

BOLT,HEX HEAD,8X72

92003-107

Unavailable

92055

RING-O,91.6X3.4

92055-052

$9.89

130

BOLT,FLANGED,6X25

130G0625

$1.17

130A

BOLT,FLANGED,6X35

130H0635

$0.93

130B

BOLT-FLANGED,6X45

130G0645

$0.93

670

O RING,8MM

670B1508

$1.29

670A

O RING,22MM

670B2022

$4.69
