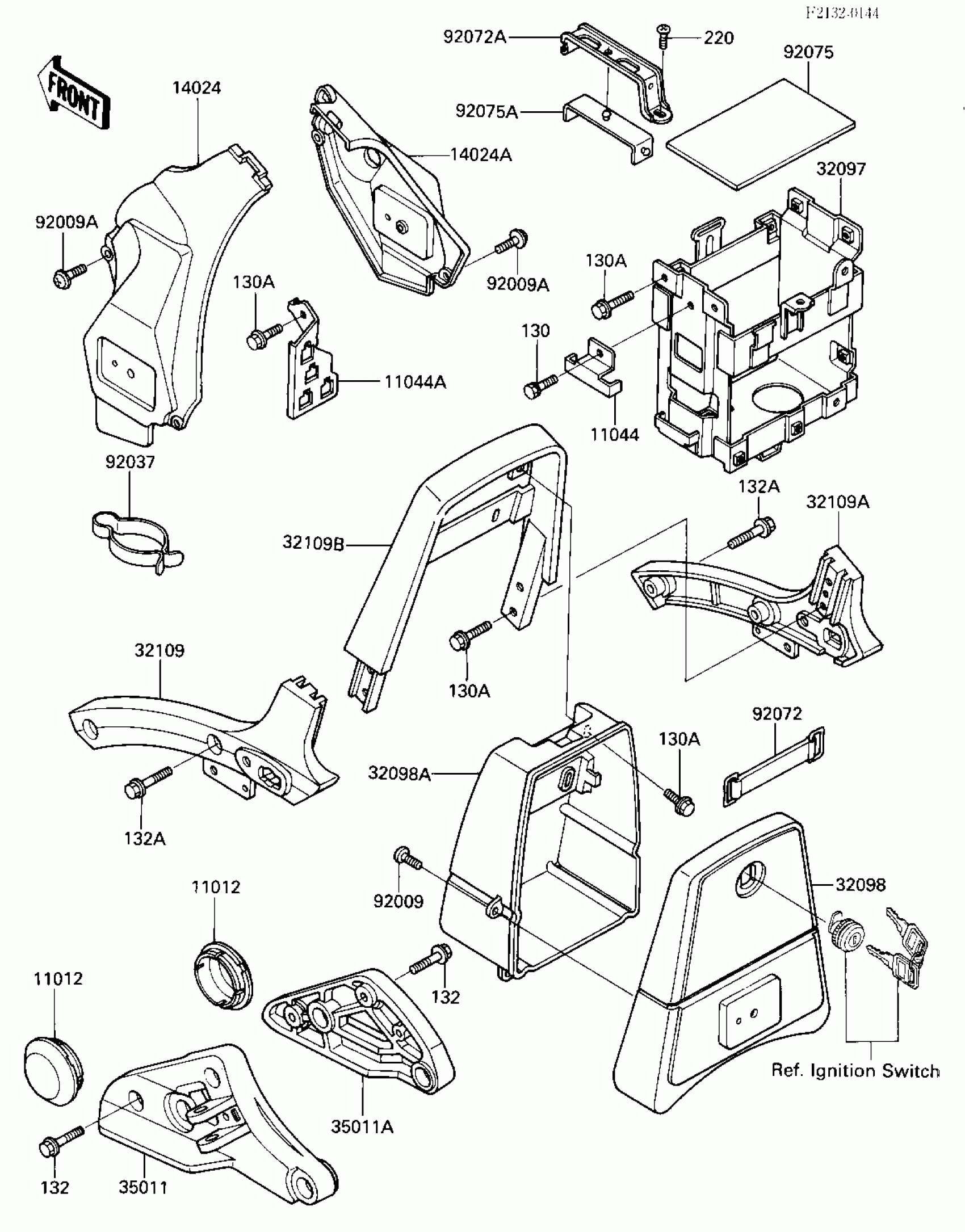

Kawasaki LTD BATTERY CASE/TOOL CASE Diagram
#
Description
Price
11012
CAP,SWING ARM
11012-1433
$21.93
11044
BRACKET,JOINT BOX
11043-1934
Unavailable
11044A
BRACKET,HARNESS
11043-1935
$12.40
14024
COVER,FUEL TANK,LH
14025-1994
$53.05
14024A
COVER,FUEL TANK,RH
14025-1995
$44.09
32097
CASE-BATTERY
32097-1121
$130.02
32098
CASE-TOOL
32098-1057
$73.59
32098A
CASE-TOOL
32098-1058
$49.12
32109
GRIP-FRAME,LWR,LH
32109-1122
$200.25
32109A
GRIP-FRAME,LWR,RH
32109-1123
$191.06
32109B
GRIP-FRAME,UPP
32109-1124
$149.49
35011
STAY,MUFFLER,LH
35011-1239
$162.66
35011A
STAY,MUFFLER,RH
35011-1240
Unavailable
92009
SCREW,TAPPING,5X16
92009-1264
$3.13
92009A
SCREW,6X14
92009-1288
$3.92
92037
CLAMP
92037-093
$11.37
92072
BAND,L=82
92072-053
$12.35
92072A
BAND,BATTERY
92072-1177
$10.62
92075
DAMPER
92075-1076
$8.86
92075A
DAMPER,BATTERY BAND
92075-1371
$11.49
130
BOLT-FLANGED,6X8
130B0608
$0.67
130A
BOLT-FLANGED
130D0612
$0.67
132
BOLT-FLANGED-SMALL,8X30
132E0830
$5.78
132A
BOLT-FLANGED-SMALL,8X35
132E0835
$5.52
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
