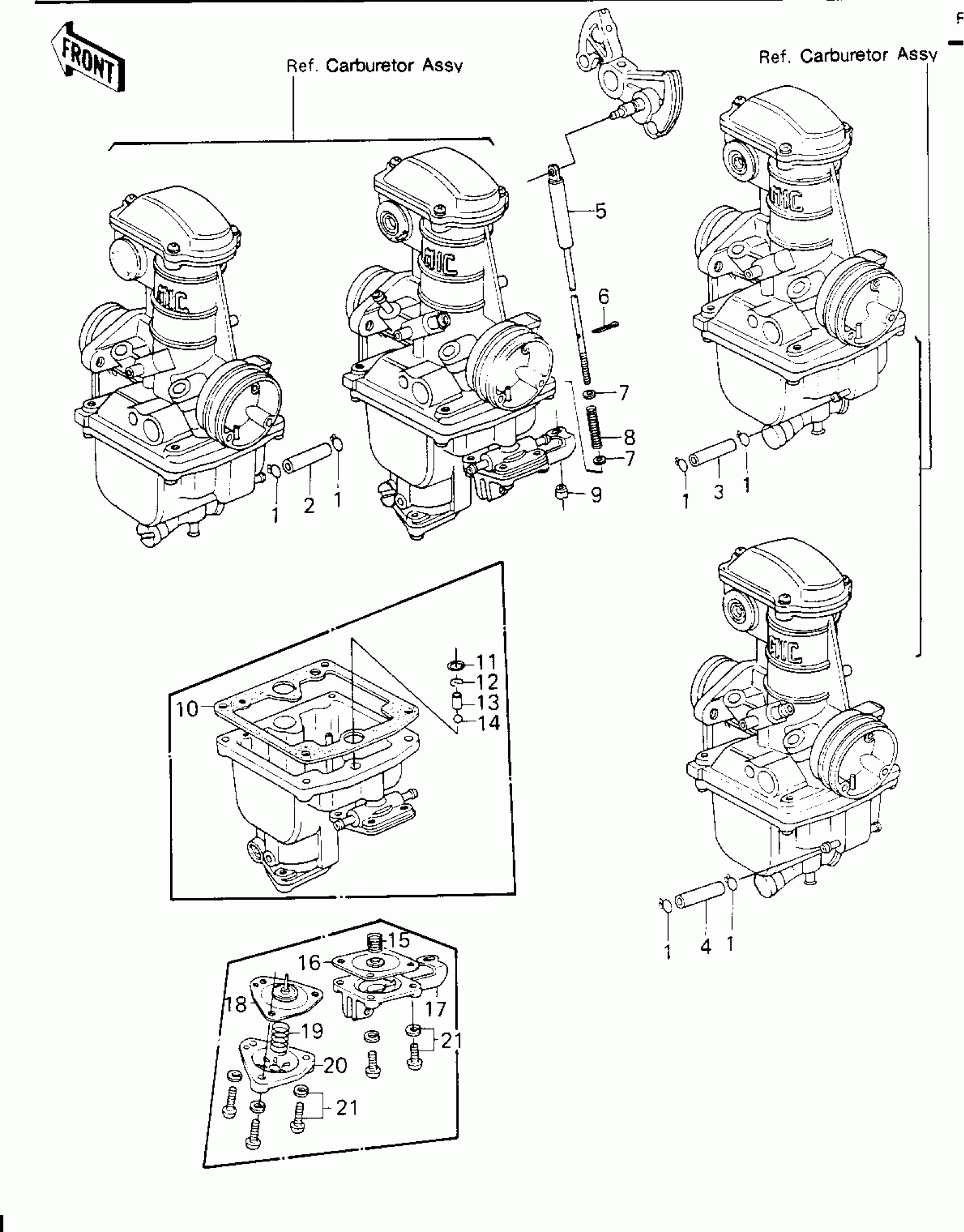

Kawasaki LTD ACCELERATOR PUMP Diagram

#

Description
Price

1

CLAMP,TUBE

92037-1124

$6.11

2

TUBE,3.5X7.5X47.5

92059-1072

$14.00

3

TUBE,3.5X7.5X64.5

92059-1071

$33.46

4

TUBE,3.5X7.5X47.5

92059-1072

$14.00

5

ROD ASSY,PUMP

46102-1007

Unavailable

6

COTTER PIN,1.0X6

550D1006

$3.19

7

WASHER,PUMP ROD

92022-1138

Unavailable

8

SPRING,PUMP ROD

92081-1138

Unavailable

9

NUT,PUMP ROD

92015-1075

Unavailable

10

GASKET,FLOAT CHAMBER

11009-1562

$24.64

11

"O" RING,CHECK VALVE

92055-1059

$11.60

12

CLAMP,SPRING,CHECK VL

92037-1123

Unavailable

13

WEIGHT,PUMP,CHECK VLV

13042-1004

Unavailable

14

BALL,STEEL,CHECK VALV

92140-1003

Unavailable

15

SPRING,PUMP DIAPHRAGM

92081-1139

Unavailable

16

DIAPHRAGM,PUMP

43028-1012

Unavailable

17

COVER ASSY,PUMP

14025-1139

Unavailable

18

DIAPHRAGM,SENSOR

43028-1010

$147.36

19

SPRING,SENSOR DIAPHRA

92081-1137

$2.63

20

COVER,SENSOR

14025-1121

Unavailable

21

SCREW-PAN-WS-CROS

223B0414

$1.52
