CONSOLE AND ELECTRICAL - 0891549 (4915421542A010)

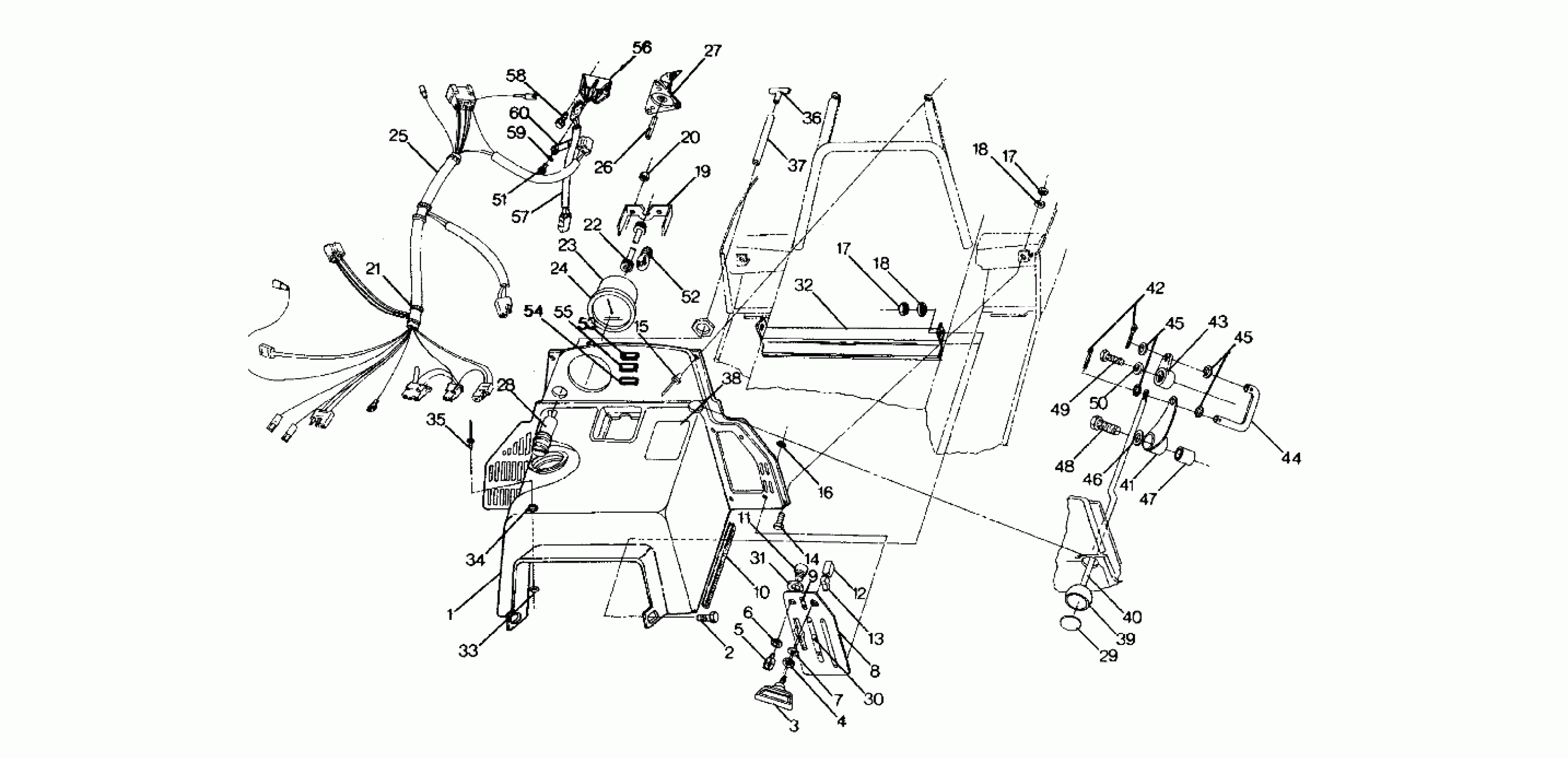

Polaris LONGTRAK/REVERSE - 0891549 CONSOLE AND ELECTRICAL - 0891549 (4915421542A010) Diagram
#
1
CONSOLE
5431016
Unavailable
2
SCREW(10)
7511989
Unavailable
3
HANDLE-RECOIL
5430520
Unavailable
4
Nut
7080229
$19.99
5
KEY, IGNITION
5410378
$13.75
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
WASHER-LOCK(10)
7571610
$3.99
8
INSERT-RECOIL CONSOLE [No Longer Available]
5430605
Unavailable
9
DECAL,IGNITION SWITCH [No Longer Available]
7072111
Unavailable
10
REINFORCE.-CONSOLE [No Longer Available]
5220337
Unavailable
11
SWITCH IGNITION
4110038
$44.51
12
CHOKE CABLE-SINGLE
7080206
Unavailable
13
KIT-CHOKE CONTROL
2200188
$24.27
14
SCREW(10)
7511990
Unavailable
15
RIVET(50)
7621462
$1.49
16
PALNUT(10)
7670009
$2.39
17
NUT(10)
7541925
$1.49
17
NUT(10)
7541925
$1.49
18
WASHER(10)
7558203
$3.19
18
WASHER(10)
7558203
$3.19
19
BRACKET [No Longer Available]
3280062
Unavailable
20
NUT
3280063
Unavailable
21
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
Unavailable
22
CABLE-SPEEDO
3280052
Unavailable
23
SPEEDOMETER [No Longer Available]
3280071
Unavailable
24
GLASS&BEZEL [No Longer Available] (Replacement)
2200220
Unavailable
25
HARNESS, MAIN [No Longer Available]
2460264
Unavailable
26
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
27
ANGLE DRIVE [No Longer Available]
3280077
Unavailable
28
PRIMER,PISTON Substituted by 2871185
3160113
Unavailable
29
DECAL,SHIFT KNOB [No Longer Available]
7072363
Unavailable
30
DECAL SIGHT GAUGE [No Longer Available]
7071847
Unavailable
31
PUSH NUT, IGNITION
7670048
Unavailable
32
BRACKET,TANK/SEAT [No Longer Available]
5220431
Unavailable
33
BURR, RIVET(50) [No Longer Available]
7555722
Unavailable
34
SNAP-MALE(10)
7080227
Unavailable
35
RIVET,(10)
7621215
Unavailable
36
TEE-FUEL
7052035
Unavailable
37
FUELLINE,3MMX7MM
8450061-600
Unavailable
38
DECAL,SHIFT PATTERN [No Longer Available]
7072510
Unavailable
39
KNOB,SHIFT LEVER [No Longer Available]
7030009
Unavailable
40
ROD, SHIFT [No Longer Available]
5332915
Unavailable
41
LEVER, SHIFT
1341032
Unavailable
42
PIN, COTTER Substituted by 7661103
BBC0178
Unavailable
43
LEVER,SHIFT,WELD. [No Longer Available]
1341043
Unavailable
44
ROD,SHIFT LINKAGE [No Longer Available]
5224301
Unavailable
45
WASHER Substituted by 7555827
BBC0173
Unavailable
45
WASHER Substituted by 7555827
BBC0173
Unavailable
46
WASHER,WROUGHT(10)
7558302
$1.59
47
BUSHING,SHIFT ARM [No Longer Available]
7555766
Unavailable
48
BOLT(10)
7515301
Unavailable
49
BOLT(10)
7512247
$2.39
50
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
51
SCREW-SEMS(10)
7511848
$3.99
52
BULB INSTRUMENT
4030017
Unavailable
53
INDICATOR'HI-RANGE'WARN. [No Longer Available]
4040017
Unavailable
54
INDICATOR'LOW-RANGE'WARN.
4040018
Unavailable
55
INDICATOR'REVERSE'WARN.
4040019
$28.32
56
MOUNT,INDICATOR
5431011
Unavailable
57
HARNESS, SWITCH [No Longer Available]
2460263
Unavailable
58
SCREW(10)
7511989
Unavailable
59
WASHER-LOCK(10)
7571601
Unavailable
60
STRAP, IND.SWITCH [No Longer Available]
5211130
Unavailable
