CHASSIS and SEAT - 0891549 (4915421542A003)

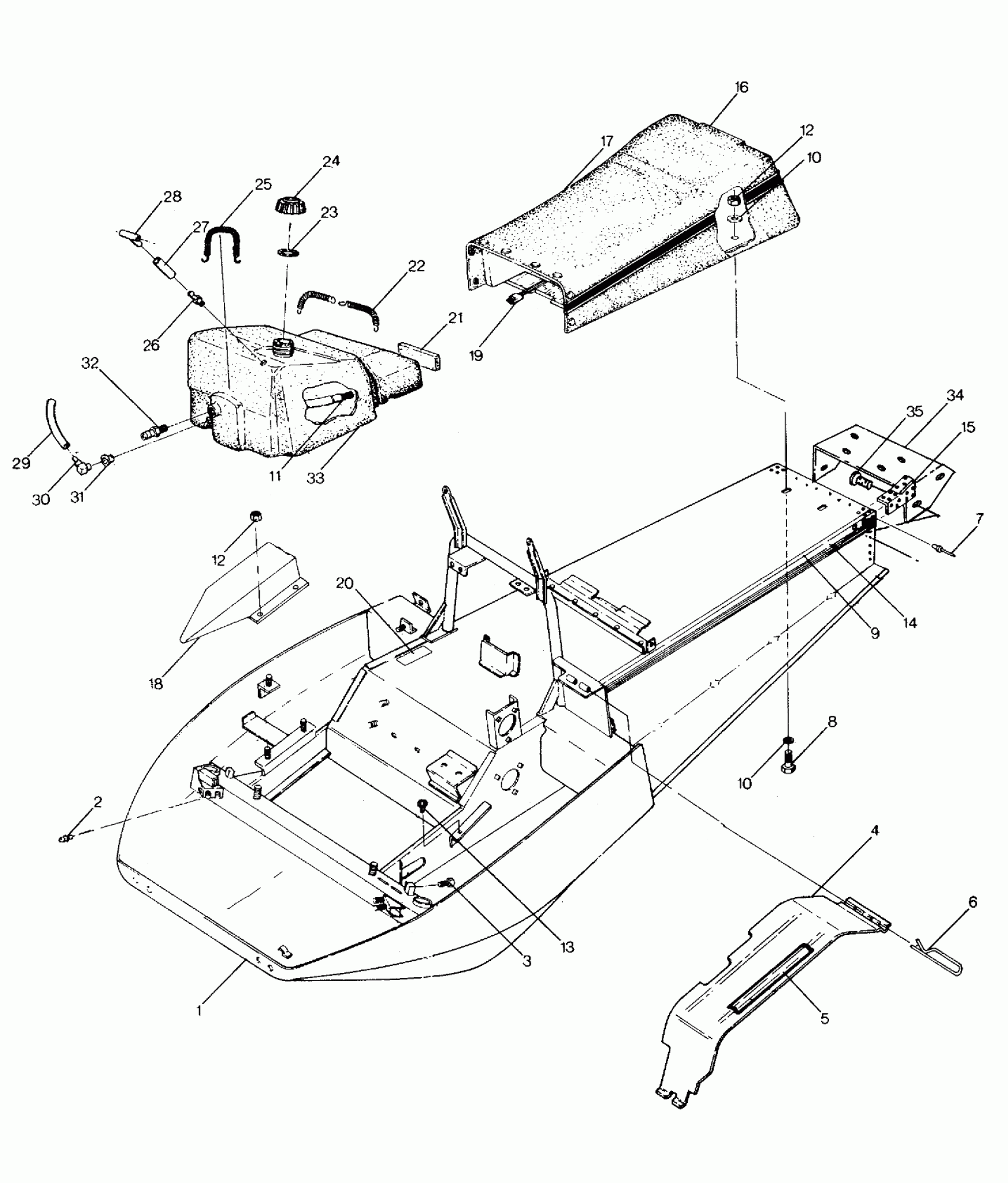

Polaris LONGTRAK/REVERSE - 0891549 CHASSIS and SEAT - 0891549 (4915421542A003) Diagram
#
1
CHASSIS, STARTRACK [No Longer Available] (STR)
1011669
Unavailable
1
CHASSIS, LTR [No Longer Available] (LTR)
1011672
Unavailable
2
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
3
SCREW(10)
7512497
Unavailable
4
GUARD, CLUTCH [No Longer Available] (STR)
1011627
Unavailable
4
GUARD-CLUTCH (LTR)
1011442
Unavailable
5
DECAL, WARNING [No Longer Available]
7072086
Unavailable
6
PIN,RETAINING,(10)
7080216
$9.70
7
RIVET(50)
7621470
$3.17
8
BOLT(10)
7512103
$3.19
9
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
10
WASHER,WROUGHT(10)
7558302
$1.59
10
WASHER,WROUGHT(10)
7558302
$1.59
11
FUELPICKUP,W/STRAINER
7052037
$12.94
12
NUT-LOCK(10)
7542122
$1.49
12
NUT-LOCK(10)
7542122
$1.49
13
CLIP-BUTTON [No Longer Available]
4020127
Unavailable
14
STRIPE,TUNNEL,LH,STAR [No Longer Available] (STR)
7072616
Unavailable
14
STRIPE,TUNNEL,RH [No Longer Available] (STR)
7072617
Unavailable
15
REINFORCEMENT, L.H. Substituted by 5220529-067 (LTR)
5220529
Unavailable
15
REINFORCEMENT,R.H. Substituted by 5220530-067 (LTR)
5220530
Unavailable
16
SEAT ASM,('88LTR) [No Longer Available] (LTR)
2681309
Unavailable
16
SEAT ASM,ST.TRK'89 [No Longer Available] (STR)
2681379
Unavailable
17
COVER, SEAT [No Longer Available] (LTR)
2681313
Unavailable
17
COVER, SEAT [No Longer Available] (STR)
2681378
Unavailable
18
SHIELD (LTR)
5220401
Unavailable
18
SHIELD [No Longer Available] (STR)
5220766
Unavailable
19
HARNESS-TAILLIGHT
2460237
Unavailable
20
DECAL, BRAKE [No Longer Available]
7072088
Unavailable
21
PAD, GAS TANK [No Longer Available]
5810271
Unavailable
22
SPRING,TANK,(10)
7042020
$13.75
23
GASKET-GAS CAP
5810144
$5.59
24
CAP, GAS, (BLACK)
5430725
$24.27
25
SPRING-TANK [No Longer Available]
7042021
Unavailable
26
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
27
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
28
TEE-FUEL
7052035
Unavailable
29
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FITTING-TANK (Incl. 31)
7052036
Unavailable
31
GROMMET-TANK FITTING(10)
7052028
$6.39
32
FITTING - OUTLET(10)
7052023
$24.99
33
TANK, GAS [No Longer Available]
2511158
Unavailable
34
ASM-REAR CLOSE-OFF (STR)
1011629
Unavailable
35
BOLT, TRUSS,(10) [No Longer Available] (STR)
7512305
Unavailable
