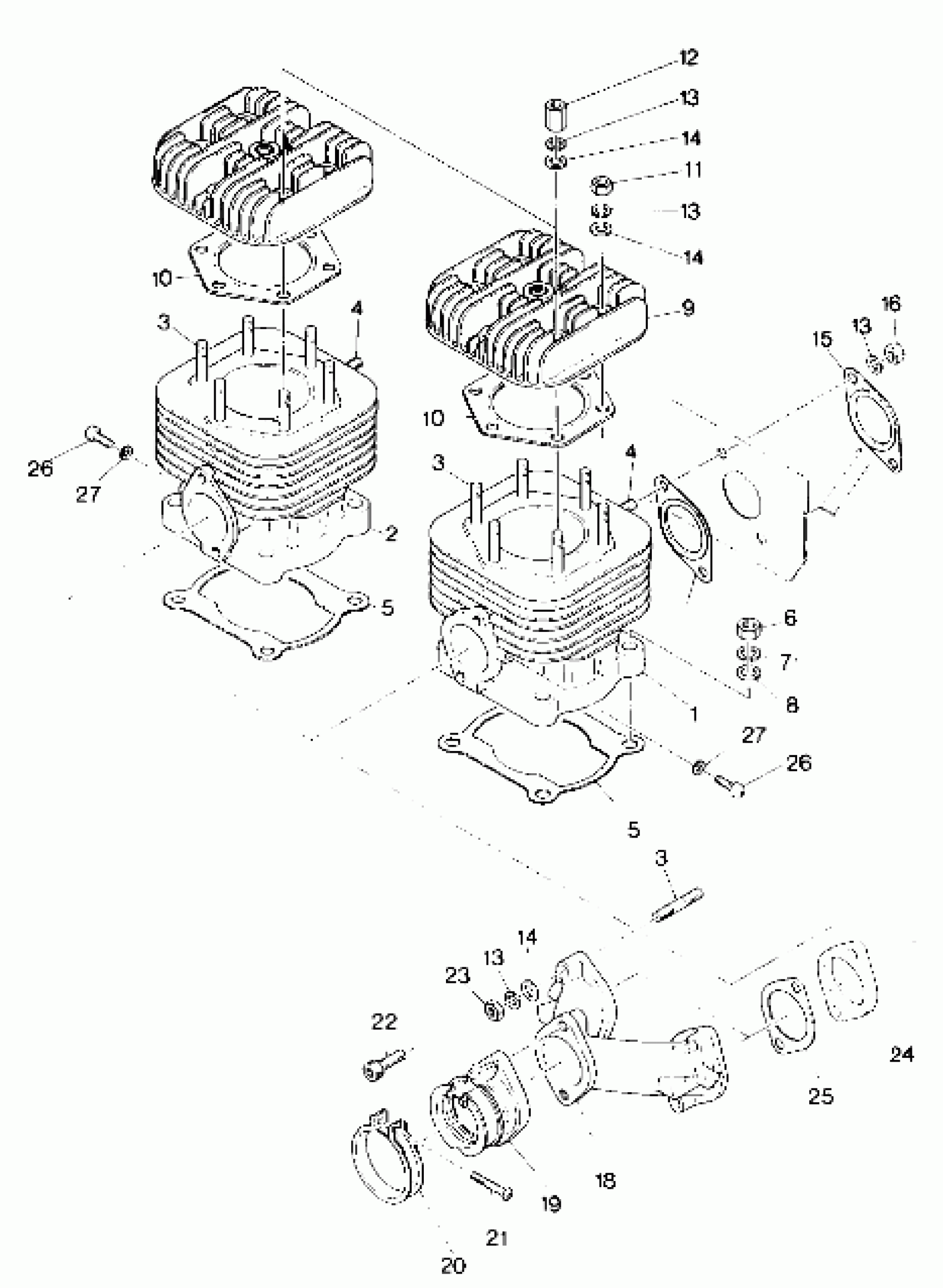

Polaris LONGTRAK - 0871449 CYLINDER LT/LTR (4912711271021A) Diagram
#
Description
Price
1
CYL. #1 (Incl. 3-4, 26-27)
3083438
Unavailable
2
CYL. #2 (Incl. 3-4, 26-27)
3083440
Unavailable
3
Stud
3080283
$12.94
3
Stud
3080283
$12.94
3
Stud
3080283
$12.94
4
STUD (10)
3080016
$5.75
4
STUD (10)
3080016
$5.75
5
GASKET-CYL
3083081
Unavailable
5
GASKET-CYL
3083081
Unavailable
6
NUT Substituted by 3082911
3080047
Unavailable
7
WASHER, SPRING(10)
3080281
$0.79
8
WASHER(10)
3080356
$2.99
9
HEAD, CYL.
3083709
Unavailable
10
GASKET HEAD
3080250
Unavailable
10
GASKET HEAD
3080250
Unavailable
11
NUT(10)
3080119
$2.39
12
NUT Substituted by 3083541
3082632
Unavailable
13
WASHER LOCK ,(10)
3080530
$3.19
13
WASHER LOCK ,(10)
3080530
$3.19
13
WASHER LOCK ,(10)
3080530
$3.19
13
WASHER LOCK ,(10)
3080530
$3.19
14
WASHER(10)
3080142
$3.99
14
WASHER(10)
3080142
$3.99
14
WASHER(10)
3080142
$3.99
15
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
16
NUT(10)
3080285
Unavailable
18
MANIFOLD Substituted by 3083223
3083285
Unavailable
19
ADAPTER [No Longer Available]
3082623
Unavailable
20
BAND-CARB MTG. (Incl. 21)
3082257
Unavailable
21
SCREW,(10)
3081497
$2.39
22
Bolt, Allen
3081330
$3.99
23
NUT
3081086
Unavailable
24
INSULATOR
3083176
Unavailable
25
GASKET-INTAKE Substituted by 3084027
3083099
Unavailable
26
SCREW(10)
3081582
Unavailable
26
SCREW(10)
3081582
Unavailable
27
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
27
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
