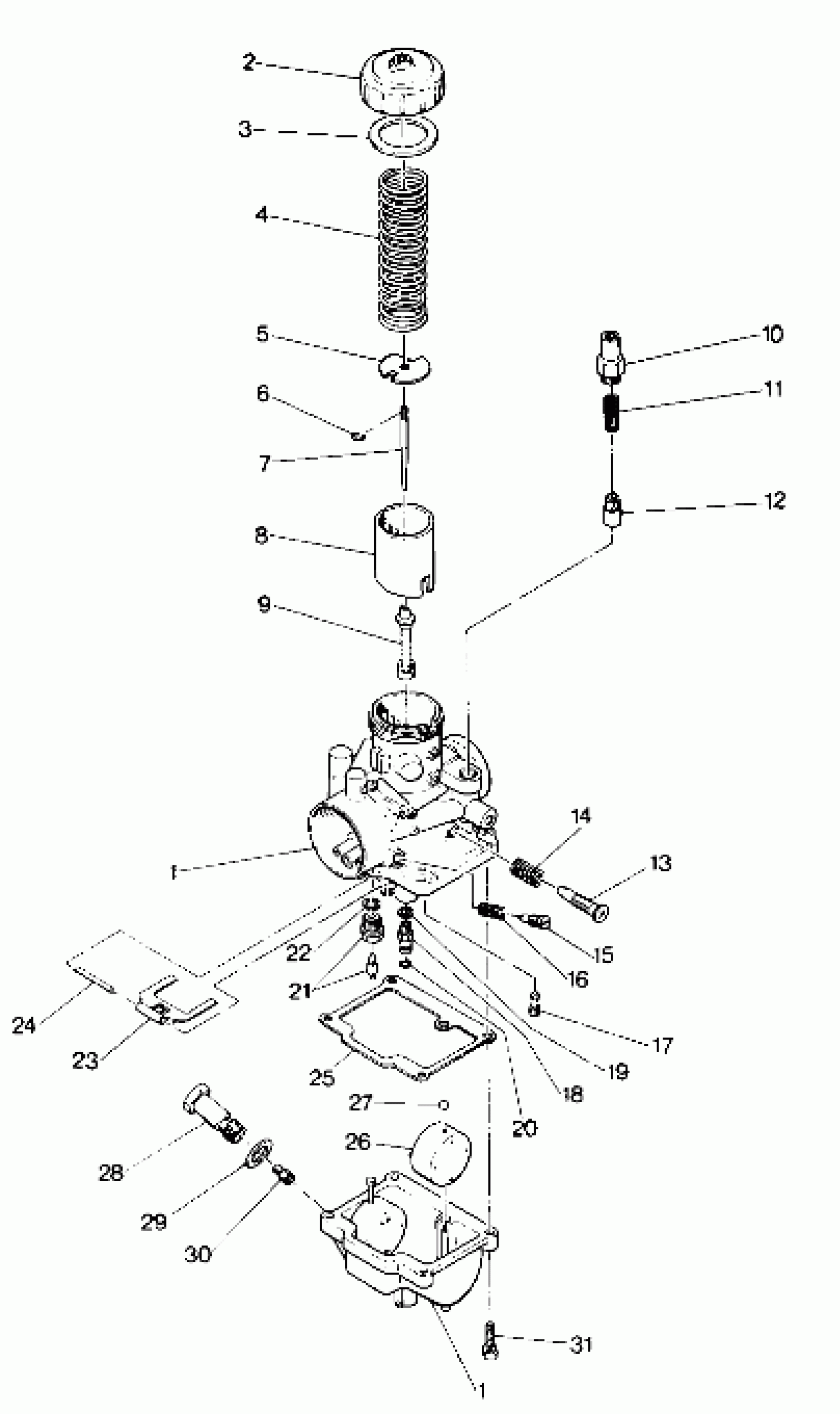

Polaris LONGTRAK - 0871449 CARBURETOR LT/LTR (4912711271025A) Diagram
#
Description
Price
1
CARBURETOR (Incl. 2-31)
3130325
Unavailable
1
CARBURETOR (Incl. 2-31)
3130325
Unavailable
2
TOP,MIX CHAMBER (Incl. 3)
3130060
Unavailable
3
GASKET
-------
Unavailable
4
SPRING-THROTTLE Substituted by 3130344
3130281
Unavailable
5
PLATE,THROTTLE
3130002
$20.22
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE
3130310
Unavailable
8
VALVE-THROTTLE 2.5 [No Longer Available]
3130311
Unavailable
9
JET NEEDLE
3130035
Unavailable
10
CAP, PLUNGER Substituted by 3130359
3130005
Unavailable
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
Screw, Throttle Stop
3130324
$19.84
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#30(10) (No. 30)
3130065
$8.89
18
NEEDLE JET SETTER
3130283
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING
3130015
Unavailable
21
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN,FLOAT
3130043
Unavailable
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
FLOAT ASM
3130021
$40.46
27
CAP,(10) Substituted by 3130237
3130022
Unavailable
28
BOLT, BANJO
3130210
Unavailable
29
WASHER
3130024
Unavailable
30
JET,MAIN,HX.HD#200(10) (No. 200)
3130123
$7.27
31
SCREW & WASHER(10)
3130025
$3.19
