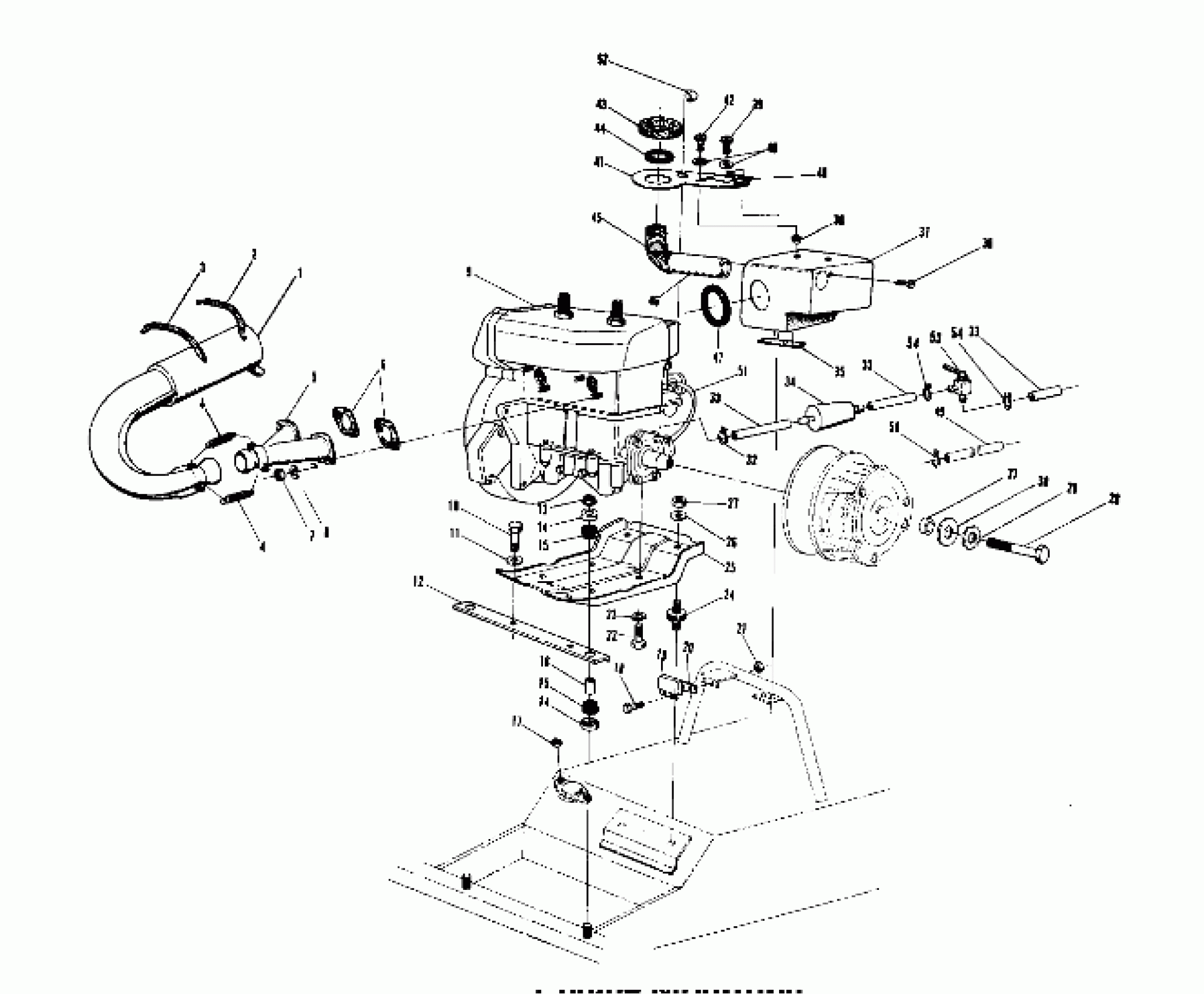

Polaris LONGTRAK - 0861449 Engine Mounting (4910931093019A) Diagram
#
1
MUFFLER [No Longer Available]
1260471
Unavailable
2
SPRING
7042015
Unavailable
3
SPRING-MUFFLER [No Longer Available]
7042027
Unavailable
4
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
4
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
5
MANIFOLD [No Longer Available]
1260452
Unavailable
6
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Unavailable
7
NUT(10)
3080285
Unavailable
8
WASHER LOCK ,(10)
3080530
$3.19
9
ENG.EC44-5100('87LT)
1211447
Unavailable
10
BOLT(10) Substituted by 7512457
7512491
Unavailable
11
WASHER-LOCK(10)
7571611
$3.19
12
MT.ENG-FR.CHANNEL
1270079
Unavailable
13
NUT FLANGED LOC,(10)
7542508
Unavailable
14
CAP
5221901
Unavailable
14
CAP
5221901
Unavailable
15
DAMPENER-MTR.MT.
5410326
Unavailable
15
DAMPENER-MTR.MT.
5410326
Unavailable
16
BUSHING-MTR.MT.
5010166
Unavailable
17
NUT(10)
7541925
$1.49
18
SCREW(10)
7511930
$2.39
19
REGULATOR - MINKS
4060071
Unavailable
20
HEAT SINK
5210650
Unavailable
22
BOLT(10)
7512539
$3.99
23
WASHER LOCK(10)
7553101
$3.99
24
MOUNT-MTR.
3110020
Unavailable
25
PLATE, MOTOR MOUNT [No Longer Available]
5220240
Unavailable
26
WASHER, FLAT(10)
7555815
$3.99
28
BOLT(10)
7512565
$19.99
29
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
30
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
31
BUSHING-.437 X.770 X.50
5430261
$7.19
32
CLAMP-HOSE(10)
7080134
Unavailable
33
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
33
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
33
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
34
FILTER FUEL,(10)
2530008
$4.84
35
PAD-SILENCER [No Longer Available]
5810138
Unavailable
36
SCREW [No Longer Available]
7522013
Unavailable
37
SILENCER [No Longer Available]
5430783
Unavailable
37
SILENCER [No Longer Available]
5430783
Unavailable
38
NUT-WELL(10)
7541923
$5.59
39
SCREW(10)
7512252
Unavailable
40
WASHER,WROUGHT(10)
7558302
$1.59
40
WASHER,WROUGHT(10)
7558302
$1.59
41
PLATE-SILENCER MTG.
5220274
Unavailable
42
SCREW(10)
7512279
$1.49
43
FOAM-INTAKE [No Longer Available]
5810137
Unavailable
44
TUBING-CONVOLUTED
4010055
Unavailable
45
HOSE-SILENCER [No Longer Available]
5410341
Unavailable
46
TUBE-AIR SILENCER
5430613
Unavailable
47
BOOT-SILENCER
5410311
Unavailable
49
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
50
HOSE CLAMP, RED
7080003
$1.49
51
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
52
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
53
VALVE,FUEL SHUT-OFF
7052039
Unavailable
54
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
54
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
