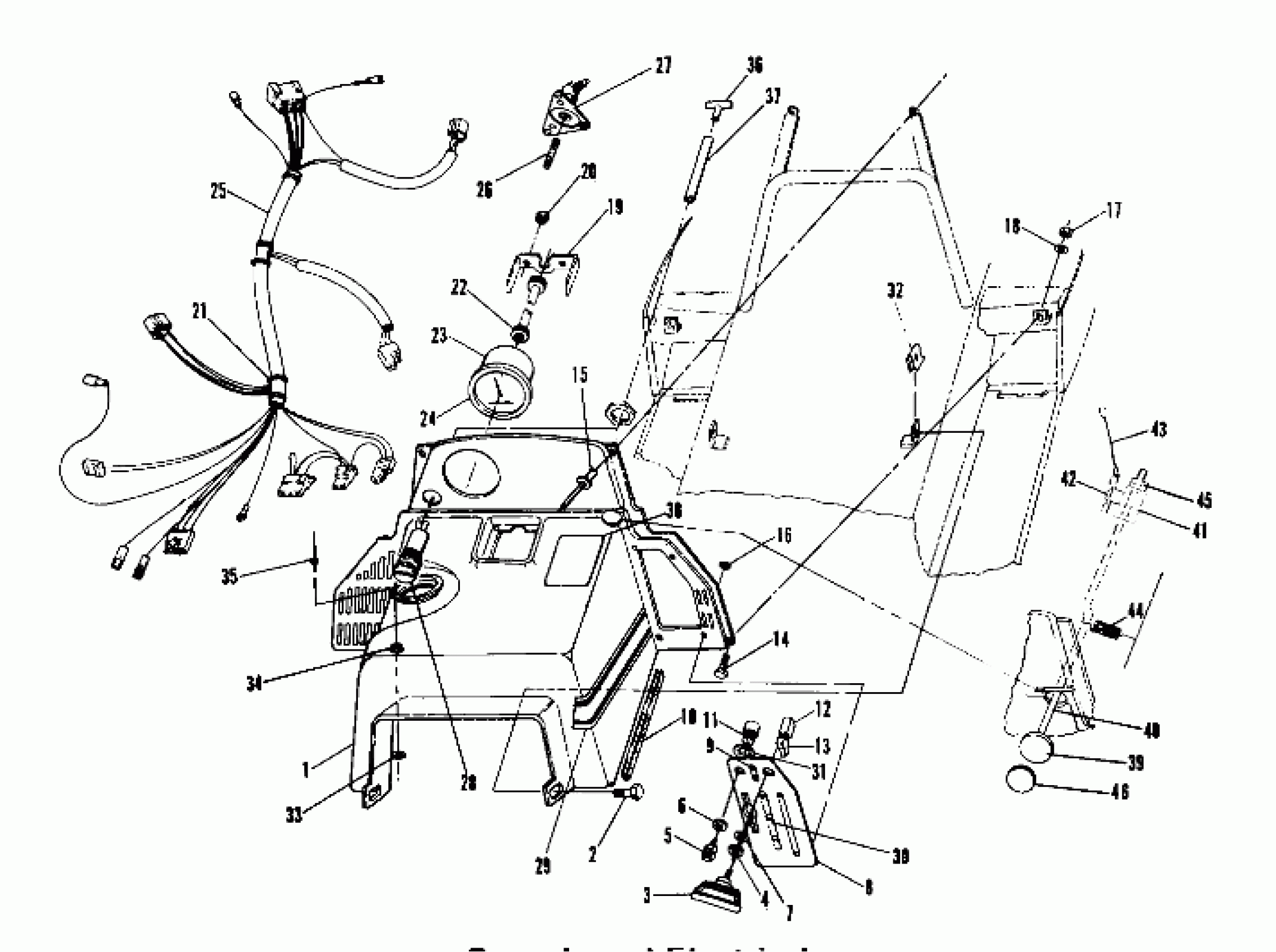

Polaris LONGTRAK - 0861449 Console and Electrical (4910931093005A) Diagram
#
1
CONSOLE [No Longer Available]
5430815
Unavailable
2
SCREW(10)
7511989
Unavailable
3
HANDLE-RECOIL
5430520
Unavailable
4
Nut
7080229
$19.99
5
KEY, IGNITION
5410378
$13.75
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
WASHER-LOCK(10)
7571610
$3.99
8
INSERT-RECOIL CONSOLE [No Longer Available]
5430605
Unavailable
9
DECAL,IGNITION SWITCH [No Longer Available]
7072111
Unavailable
10
REINFORCE.-CONSOLE [No Longer Available]
5220337
Unavailable
11
SWITCH IGNITION
4110038
$44.51
12
CHOKE CABLE-SINGLE
7080206
Unavailable
13
KIT-CHOKE CONTROL
2200188
$24.27
14
SCREW(10)
7511990
Unavailable
15
RIVET(50)
7621462
$1.49
16
PALNUT(10)
7670009
$2.39
17
NUT(10)
7541925
$1.49
18
WASHER(10)
7558203
$3.19
19
BRACKET [No Longer Available]
3280062
Unavailable
20
NUT
3280063
Unavailable
21
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
Unavailable
22
CABLE-SPEEDO
3280052
Unavailable
23
SPEEDOMETER
3280069
Unavailable
24
GLASS&BEZEL [No Longer Available] (Replacement)
2200220
Unavailable
25
HARNESS, WIRE
2460234
Unavailable
26
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
27
ANGLE DRIVE [No Longer Available]
3280077
Unavailable
28
PRIMER,PISTON Substituted by 2871185
3160113
Unavailable
29
DECAL,TANK COVER,L.T. [No Longer Available]
7072185
Unavailable
30
DECAL SIGHT GAUGE [No Longer Available]
7071847
Unavailable
31
PUSH NUT, IGNITION
7670048
Unavailable
32
U CLIP
7670049
Unavailable
33
BURR, RIVET(50) [No Longer Available]
7555722
Unavailable
34
SNAP-MALE(10)
7080227
Unavailable
35
RIVET,(10)
7621215
Unavailable
36
TEE-FUEL
7052035
Unavailable
37
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
38
DECAL,SHIFT PATTERN [No Longer Available]
7072278
Unavailable
39
KNOB
7030006
Unavailable
40
ROD, SHIFT [No Longer Available]
5332848
Unavailable
41
PIVOT,SHIFT ROD [No Longer Available]
5020458
Unavailable
42
HAIR PIN COTTER,(10) [No Longer Available]
7661208
Unavailable
43
CABLE,HAIR PIN,(10) [No Longer Available]
7080330
Unavailable
44
SPRING,SHIFT LEVER [No Longer Available]
7041184
Unavailable
45
NUT, JAM(10)
7542432
$3.99
46
DECAL,SHIFT KNOB [No Longer Available]
7072293
Unavailable
