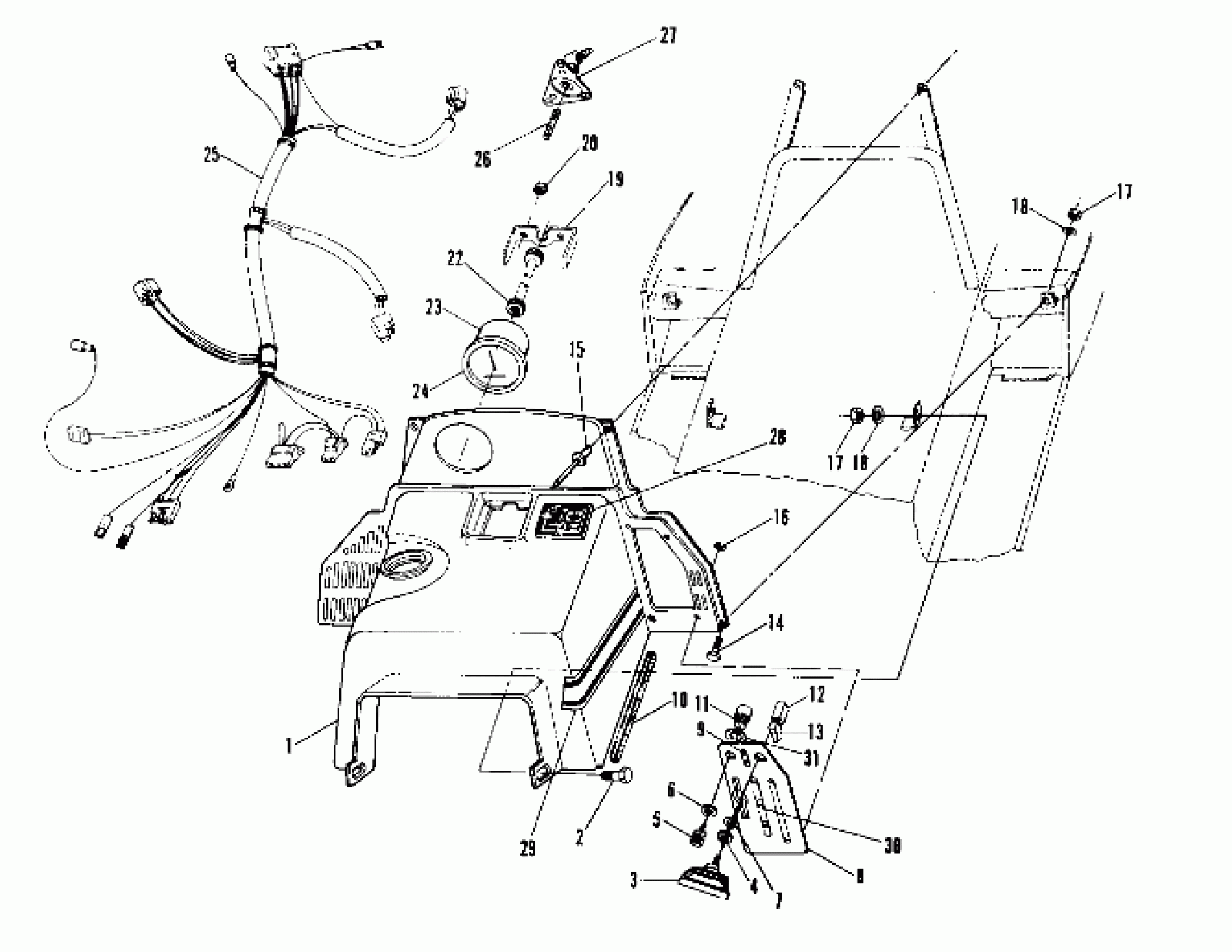

Polaris LONGTRAK - 0851449 Console and Electrical (4909520952005A) Diagram
#
Description
Price
1
CONSOLE-TANK COVER Substituted by 5430677
5430679
Unavailable
2
SCREW(10)
7511989
Unavailable
3
HANDLE-RECOIL
5430520
Unavailable
4
Nut
7080229
$19.99
5
KEY, IGNITION
5410378
$13.75
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
WASHER-LOCK(10)
7571610
$3.99
8
INSERT-RECOIL CONSOLE [No Longer Available]
5430605
Unavailable
9
DECAL,IGNITION SWITCH [No Longer Available]
7072111
Unavailable
10
REINFORCE.-CONSOLE [No Longer Available]
5220337
Unavailable
11
SWITCH IGNITION
4110038
$44.51
12
CHOKE CABLE-SINGLE
7080206
Unavailable
13
KIT-CHOKE CONTROL
2200188
$24.27
14
SCREW(10)
7511990
Unavailable
15
RIVET(50)
7621462
$1.49
16
PALNUT(10)
7670009
$2.39
17
NUT(10)
7541925
$1.49
17
NUT(10)
7541925
$1.49
18
WASHER(10)
7558203
$3.19
18
WASHER(10)
7558203
$3.19
19
BRACKET [No Longer Available]
3280062
Unavailable
20
NUT
3280063
Unavailable
22
CABLE-SPEEDO
3280052
Unavailable
23
SPEEDOMETER
3280069
Unavailable
24
GLASS&BEZEL [No Longer Available] (Replacement)
2200220
Unavailable
25
HARNESS, WIRE
2460234
Unavailable
26
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
27
ANGLE DRIVE [No Longer Available]
3280077
Unavailable
28
EMBLEM, 30 YR.,SILVER [No Longer Available]
5430741
Unavailable
29
DECAL, TANK COVER [No Longer Available]
7072071
Unavailable
30
DECAL SIGHT GAUGE [No Longer Available]
7071847
Unavailable
31
PUSH NUT, IGNITION
7670048
Unavailable
