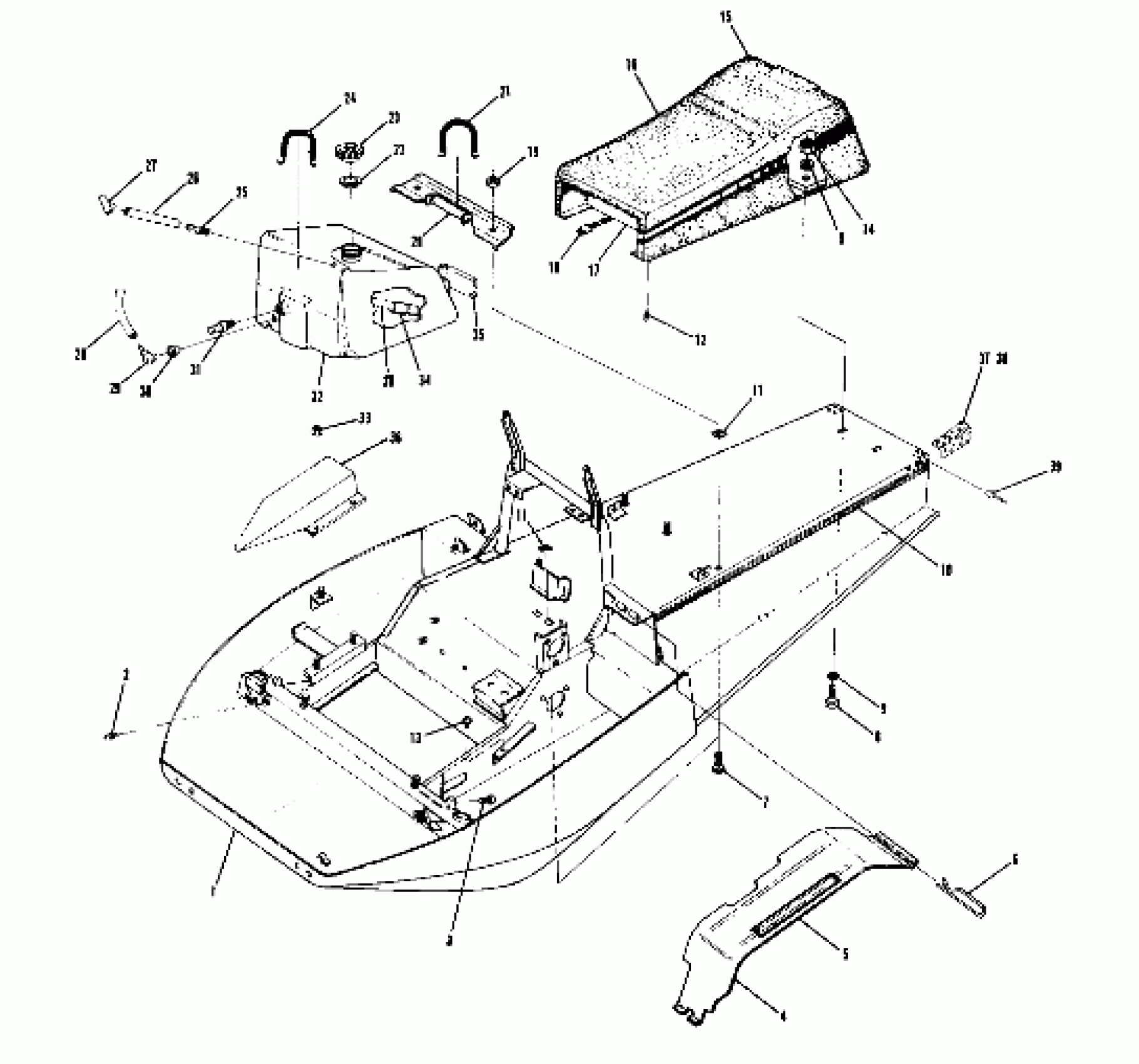

Polaris LONGTRAK - 0851449 Chassis and Seat (4909520952002A) Diagram
#
Description
Price
1
CHASSIS [No Longer Available]
1011487
Unavailable
2
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
3
SCREW(10)
7512497
Unavailable
4
GUARD-CLUTCH
1011442
Unavailable
5
DECAL, WARNING [No Longer Available]
7072086
Unavailable
6
PIN,RETAINING,(10)
7080216
$9.70
7
BOLT(10)
7512193
$2.39
8
BOLT(10)
7512103
$3.19
9
WASHER,WROUGHT(10)
7558302
$1.59
9
WASHER,WROUGHT(10)
7558302
$1.59
10
DECAL, TUNNEL [No Longer Available]
7072114
Unavailable
11
SPEED NUT(10)
7670021
$6.99
11
SPEED NUT(10)
7670021
$6.99
12
SCREW(10) [No Longer Available]
7522008
Unavailable
14
NUT-LOCK(10)
7542122
$1.49
15
CUSHION ASM. [No Longer Available]
2681222
Unavailable
15
CUSHION ASM. [No Longer Available]
2681222
Unavailable
16
COVER, SEAT,L.T.
2681223
Unavailable
17
INSERT-SEAT [No Longer Available]
5430618
Unavailable
18
HARNESS-TAILLIGHT
2460237
Unavailable
20
STRAP-GAS TANK [No Longer Available]
5220271
Unavailable
21
SPRING,TANK,(10)
7042020
$13.75
22
GASKET-GAS CAP
5810144
$5.59
23
CAP, GAS, (BLACK)
5430725
$24.27
24
SPRING-TANK [No Longer Available]
7042021
Unavailable
25
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
26
KIT-TANK VENT Substituted by 2200190
5420153
Unavailable
27
TEE-FUEL
7052035
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
29
FITTING-TANK (lncl. 30)
7052036
Unavailable
30
GROMMET-TANK FITTING(10)
7052028
$6.39
31
FITTING - OUTLET(10)
7052023
$24.99
32
TANK-GAS W.GAUGE [No Longer Available]
2511145
Unavailable
34
FUELPICKUP,W/STRAINER
7052037
$12.94
36
SHIELD
5220401
Unavailable
37
REINFORCEMENT, L.H. Substituted by 5220529-067
5220529
Unavailable
38
REINFORCEMENT,R.H. Substituted by 5220530-067
5220530
Unavailable
39
RIVET(50)
7621470
$3.17
