TUNNEL and SEAT LITE TOURING 0983133 and EUROPEAN LITE TOURNG E983133 (4941934193A005)

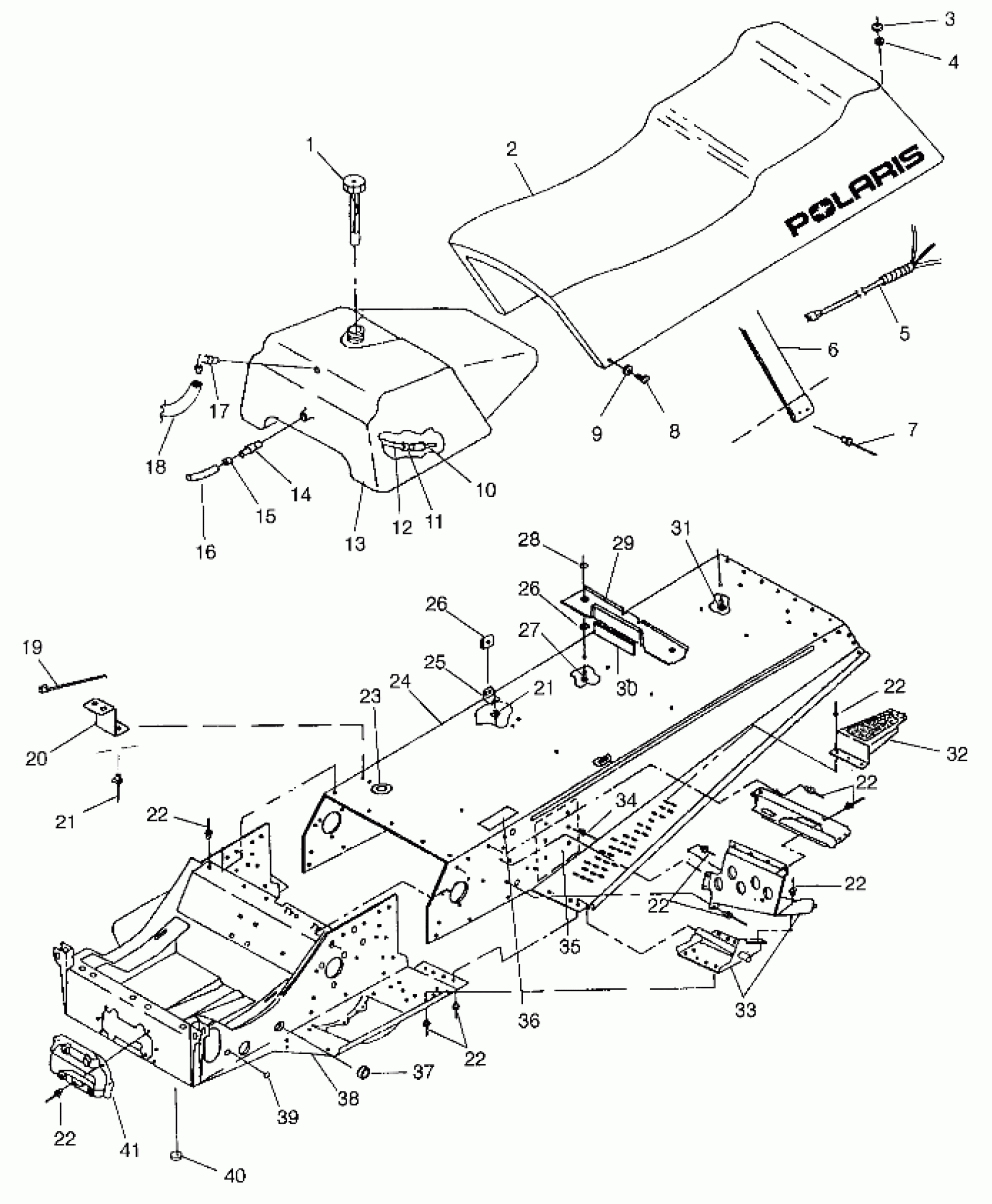

Polaris LITE TOURING - 0983133 TUNNEL and SEAT LITE TOURING 0983133 and EUROPEAN LITE TOURNG E983133 (4941934193A005) Diagram
#
1
GASKET, GAS CAP
5810513
$8.89
1
CAP,GAS,W/GAUGE
2511245
Unavailable
2
CVR.ASM,SEAT,LITE,2-UP
2682254
Unavailable
2
SEAT ASM. (Incl. 5)
2682259
$474.99
3
NUT-5/16-18 NYLOK-Y
7542324
$1.49
4
WASHER WROUGHT(10)
7558403
$4.79
5
HARNESS-TAILLIGHT
2460237
Unavailable
6
Belt, Seat
7080434
$14.40
7
RIVET(50)
7621472
$1.49
8
SCREW(10)
7515111
$7.19
9
WASHER(10)
7555798
$1.49
10
FUELPICKUP,W/STRAINER
7052037
$12.94
11
RING, COMPRESSION(10)
7080402
$1.60
12
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
13
TANK,FUEL,(LITE GT) Substituted by 2520179 (Incl. 10-14, 17, 18)
2511214
Unavailable
14
FITTING - OUTLET(10)
7052023
$24.99
15
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
16
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
17
FITTING,90 DEG,1/8,(10)
7052095
$4.79
18
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
18
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
BRKT,STAND,BLK.
5220520-067
$4.13
21
RIVET(50)
7621453
$3.19
21
RIVET(50)
7621453
$3.19
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
22
RIVET-3/16-.090-.290
7661637
$1.49
23
GROMMET RUBBER
5410021
Unavailable
24
TUNNEL,X-LITE,133 (Incl. 26, 34)
1012598
Unavailable
25
BRKT,CONSOLE/SEAT MT.
5222452-067
$25.59
26
SPEED NUT(10)
7670021
$6.99
26
SPEED NUT(10)
7670021
$6.99
27
BOLT(10)
7512193
$2.39
28
NUT-LOCK(10)
7542122
$1.49
29
STRAP,GASTANK,BLK.
5222330-067
Unavailable
30
CUSHION,TANK H.D.
5420126
Unavailable
31
BOLT(10)
7512331
$3.99
32
FOOTREST,LH REAR
5220893
Unavailable
32
FOOTREST,RH REAR
5220894
$32.15
32
PAD,LH FOOT SAFETY
5830007
$7.89
32
PAD,RH FOOT SAFETY
5830008
$4.92
33
FOOTREST ASM,LH
1011830
$140.79
33
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
34
RIVET ,(50)
7661837
$1.49
35
PAD,FR.SUSP.MT,(XL)
5211705-067
$6.63
36
Pad, Air Box
5810502
Unavailable
37
BUSHING,SNAP(10)
7080404
Unavailable
38
BULKHEAD,BLK
1012587-067
$649.99
39
PLUG, HOLE(10)
7080416
$5.65
40
PLUG-HOLE
7080398
$4.84
41
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
