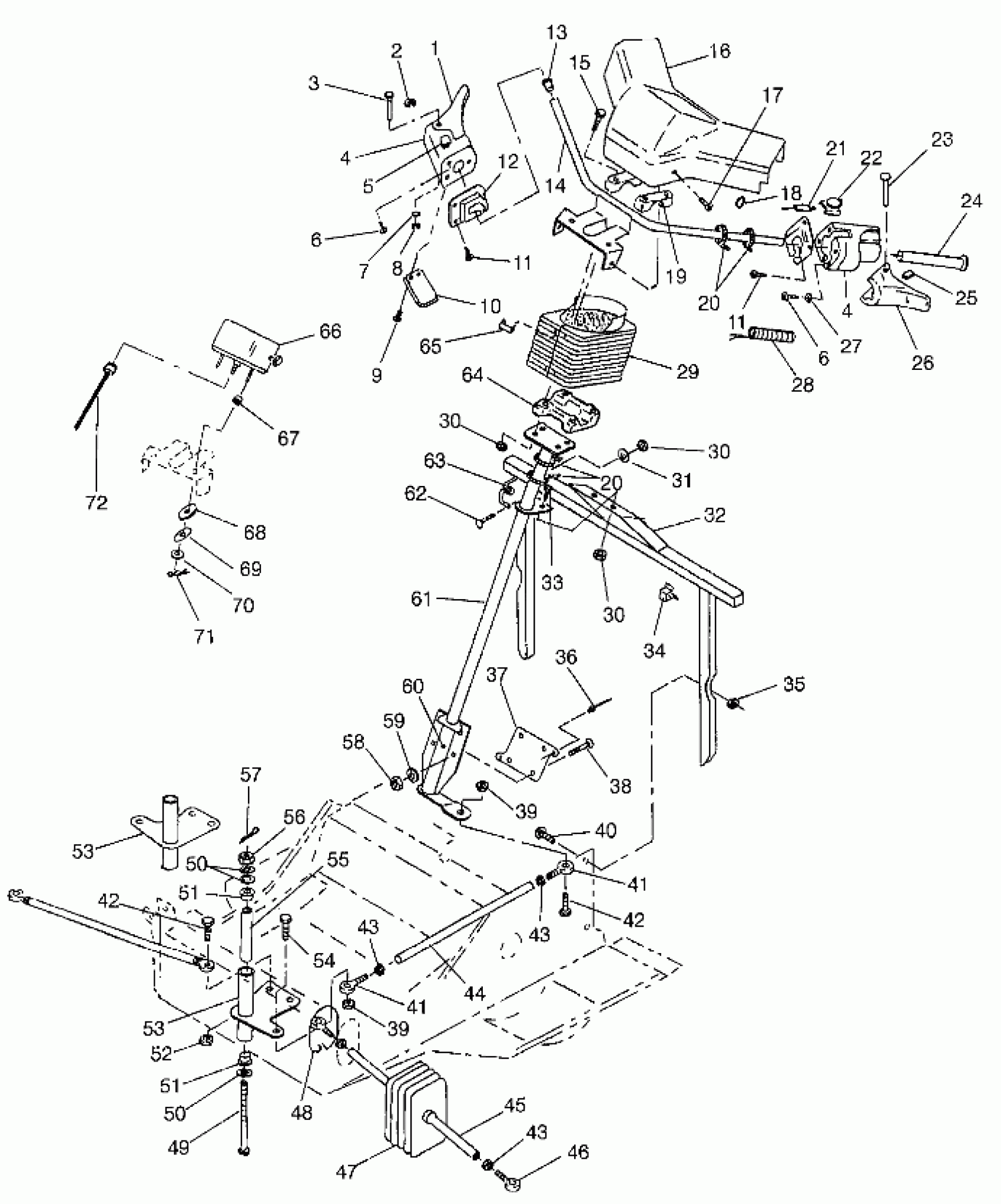

Polaris LITE TOURING - 0983133 STEERING - E983133 (4941934193b003) Diagram
#
1
LEVER-THROTTLE
5430601
Unavailable
1
LEVER,30 MM,W/HTR.
2010147
Unavailable
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
PIN-RETAINING .186X1.780-AL
7661624
$12.79
4
BLOCK,THROTTLE/BRAKE
5431592
$49.99
4
BLOCK,THROTTLE/BRAKE
5431592
$49.99
5
SWITCH,AUX.SHUT-OFF
4110106
$94.99
6
SCREW-SEMS(10)
7511848
$3.99
6
SCREW-SEMS(10)
7511848
$3.99
7
WASHER(10)
7555730
$3.99
8
RING-RETAINING EXTERNAL
7710401
$3.99
9
SCREW(10)
7511858
$3.99
10
HOLDER-WIRE
5432261
$24.27
11
SCREW(10)
7512465
$3.99
11
SCREW(10)
7512465
$3.99
12
BLOCK-ADAPTER
5430604
$13.75
13
CAPLUG(10)
7080467
Unavailable
14
HANDLEBAR,ADJ,BLK.
1843036-067
$43.75
15
SCREW,(10)
7517238
$4.79
16
COVER,H'BAR W/SPEEDO (US)
5431232-070
Unavailable
16
COVER,H'BAR(W/SPEEDO.MOD) (Euro)
5431423
Unavailable
17
SCREW,(10)
7512024
$4.79
18
O RING
5410591
Unavailable
19
BLOCK,H'BAR,UPPER,BLK.
5630382-067
Unavailable
20
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
21
Switch, Brake Light
4110105
Unavailable
22
Switch, Dimmer
4110104
Unavailable
23
RIVET,(50)
7661617
$4.03
24
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
25
CLIP-SPEED.(10)
7670044
$4.79
26
LEVER-BRAKE
5430602
$36.41
27
RIVET BURR(50)
7555727
$1.49
28
HEATER GRIP ASM.
2460313
Unavailable
29
BOOT,STRG.POST
5431234-070
Unavailable
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
30
NUT-LOCK(10)
7542122
$1.49
31
WASHER,WROUGHT(10)
7558302
$1.59
32
HOOP,STRG,BLK.
1011863-067
$38.71
33
BOLT(10) Substituted by 7512269
7515101
Unavailable
34
CLIP ,(10)
5222672
Unavailable
35
NUT, LOCK(10)
7542103
$5.59
36
RIVET-3/16-.090-.290
7661637
$1.49
37
BRKT, BOLT RETAINER
5222421
$5.52
38
BOLT(10) Substituted by 7512377
7512394
Unavailable
39
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
39
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
40
BOLT(10)
7512298
$3.99
41
ROD END,LH
7060166
$48.56
41
ROD END,RH
7060167
$48.56
41
ROD END,LH
7060166
$48.56
41
ROD END,RH
7060167
$48.56
42
BOLT(10)
7512404
$3.99
42
BOLT(10)
7512404
$3.99
43
NUT HEX(10)
7542401
$2.39
43
NUT
7542424
$1.49
43
NUT HEX(10)
7542401
$2.39
43
NUT
7542424
$1.49
43
NUT HEX(10)
7542401
$2.39
43
NUT
7542424
$1.49
44
ROD, DRAG LINK
5333005
Unavailable
45
ROD,TIE,BLK
5020910-067
Unavailable
46
ROD END, RH.
7060165
$48.56
46
ROD END, LH.
7060164
$48.56
47
BOOT, TIE ROD Substituted by 5411652
5410639
$19.84
48
RETAINER, BOOT
5222283
Unavailable
49
BOLT(10)
7512572
$13.19
50
WASHER(10)
7555817
Unavailable
50
WASHER(10)
7555817
Unavailable
51
BUSHING
5630371
$5.03
51
BUSHING
5630371
$5.03
52
NUT LOCK(10)
7542403
$3.99
53
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067
1823141-067
$49.21
53
FROG,LH,STRG,BLK(LITE) Substituted by 1820776-067
1823141-067
$49.21
54
SCREW(10)
7515434
Unavailable
55
BUSHING, SPACER
5333009
$11.99
56
NUT, CASTLE(10)
7542523
Unavailable
57
PIN COTTER(10)
7661203
$1.49
58
NUT FLEX-LOC(10)
7542303
$6.39
59
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
60
FITTING,LUB/VEN(10)
7080561
$4.79
61
POST, STRG.,BLK.
1823155-067
Unavailable
62
BOLT(10)
7512193
$2.39
63
RINGMOUNT,RECOIL,BLK.
5224442-067
$21.43
64
BLOCK,HANDLEBAR
5630187-067
$44.99
65
CLIP, STRG.BOOT(10)
7670073
Unavailable
66
SPEEDOMETER (U.S.)
3280112
Unavailable
66
SPEEDO,(KPH),EURO. (Euro)
3280137
Unavailable
67
SPACER
5410592
Unavailable
68
SPACER,SPEEDO.MTG.
5810442
$10.99
69
PLATE,MTG,(SPEEDO)
5211189
$12.99
70
WASHER, FLAT(10)
7558201
$5.79
71
HAIRPIN, COTTER(10)
7660701
$1.99
72
CABLE,SPEEDOMETER
3280113
Unavailable
