NOSEPAN and CONSOLE LITE TOURING 0983133 and EUROPEAN LITE TOURNG E983133 (4941934193A007)

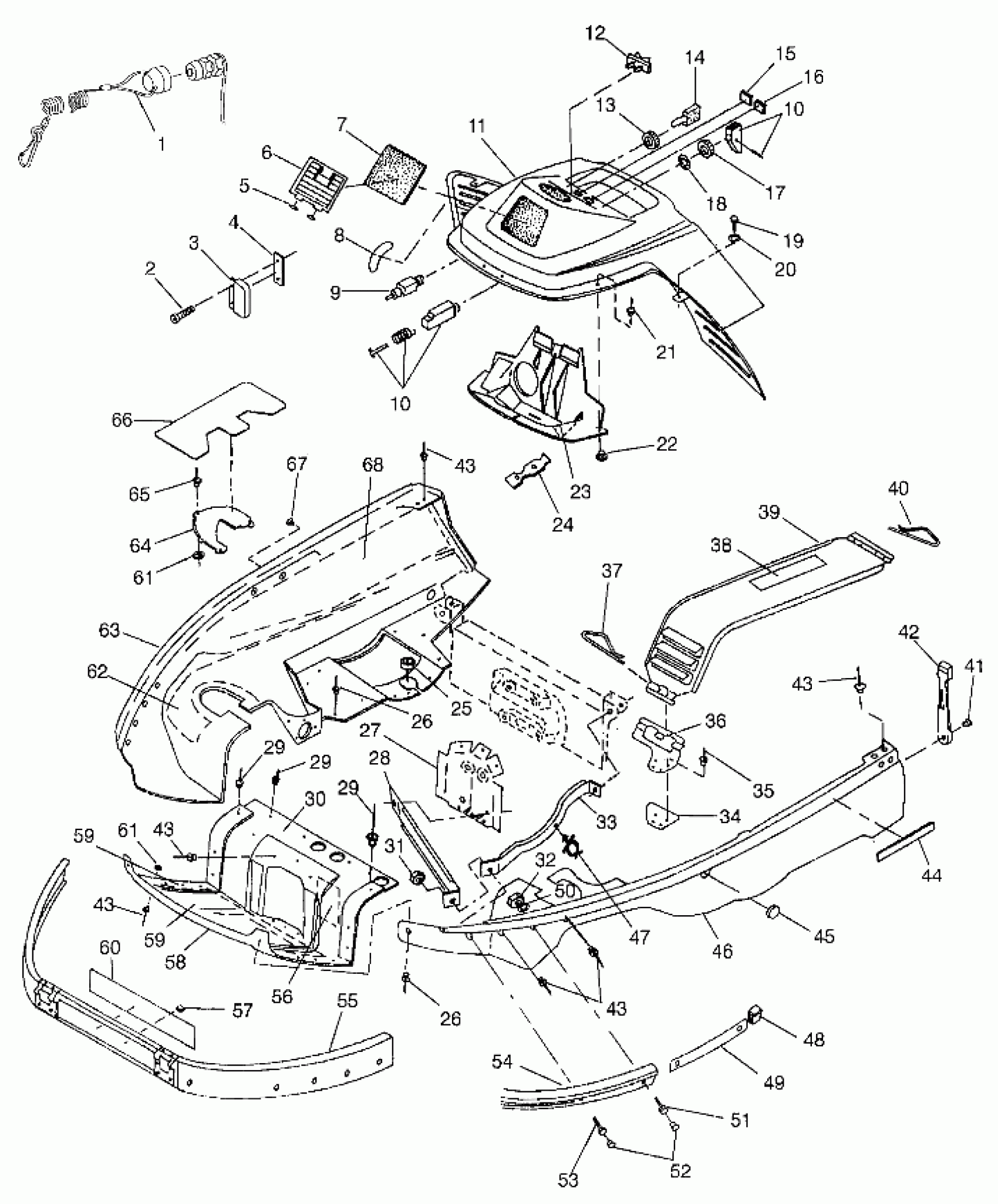

Polaris LITE TOURING - 0983133 NOSEPAN and CONSOLE LITE TOURING 0983133 and EUROPEAN LITE TOURNG E983133 (4941934193A007) Diagram
#
1
SWITCH,TETHER Substituted by 2870668 (Euro Only)
4110156
$84.99
2
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
3
REGULATOR,14 VAC.LR-9
4060122
Unavailable
4
HEAT SINK
5210650
Unavailable
5
SEAL, O RING,(10)
5410374
$1.83
6
LOUVER, INTAKE
5431211-070
Unavailable
7
Foam, Intake
5810458
Unavailable
8
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
9
SWITCH IGNITION
4110038
$44.51
10
KIT-CHOKE CONTROL
2200188
$24.27
10
CABLE,CHOKE
7080661
Unavailable
10
KIT-CHOKE CONTROL
2200188
$24.27
10
CABLE,CHOKE
7080661
Unavailable
11
CONSOLE,BLK,(94DLX.) Substituted by 5431636-070
5431636
Unavailable
12
SWITCH,ROCKER,W/INDIC.
4110195
Unavailable
13
NUT,IGNITION
7547034
Unavailable
14
KEY, IGNITION
5410378
$13.75
15
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
16
INDICATOR,'ACC'WARN.
4040014
Unavailable
17
Nut
7080229
$19.99
18
WASHER-LOCK(10)
7571610
$3.99
19
SCREW(10)
7512253
$3.99
20
WASHER(10) Substituted by 7558301
7555776
Unavailable
21
RIVET,(50)
7621336
$1.59
22
RIVET BURR(50)
7555727
$1.49
23
CONSOLE, INNER
5431214-070
$66.39
24
STRAP,TOOL COMPARTMENT
5410425
Unavailable
25
SHIELD,NOSEPAN DRAIN HOLE
5811078
Unavailable
26
RIVET, BLIND(50)
7621467
$1.49
26
RIVET, BLIND(50)
7621467
$1.49
27
BRKT,SUPPORT,BLK.
5222356-067
$38.19
28
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
28
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
29
RIVET(50)
7621479
$1.99
29
RIVET(50)
7621479
$1.99
29
RIVET(50)
7621479
$1.99
30
TAPE, FOIL
5810476
Unavailable
31
NUT-LOCK(10)
7542122
$1.49
32
NUT, LOCK(10)
7542103
$5.59
33
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
33
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
34
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
35
RIVET(50)
7621449
$3.19
36
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
37
PIN
5224440
Unavailable
38
DECAL,ENG&CLUTCH(CPSC)
7075350
Unavailable
39
GUARD, CLUTCH Substituted by 5243761 (U.S.)
5230124
Unavailable
39
GUARD,CLUTCH(SWED.LITE GT) (Euro)
1011839
Unavailable
40
PIN, FRONT
7080311
Unavailable
41
RIVET,(50)
7621601
Unavailable
42
STRAP,HOODLATCH
5431501
Unavailable
43
RIVET(50)
7621472
$1.49
43
RIVET(50)
7621472
$1.49
43
RIVET(50)
7621472
$1.49
43
RIVET(50)
7621472
$1.49
43
RIVET(50)
7621472
$1.49
44
REFLECTOR AMBER
2670071
Unavailable
45
PLUG,CATCH HOLE
5410582
$7.27
46
NOSEPAN,LH,BLK.
5431155-070
Unavailable
47
CLIP, PLASTIC(10)
4020139
$4.79
48
CAP,BUMPER END,LH,BLK Substituted by 5431250-070
5431250
Unavailable
48
CAP,BUMPER END,RH,BLK Substituted by 5431251-070
5431251
Unavailable
49
PLATE,BUMPER
5222611-067
Unavailable
50
WASHER(10)
7558301
$1.49
51
SCREW(10)
7512164
Unavailable
52
PLUG, BUTTON(10)
7080430
$3.51
53
SCREW(10)
7515102
$4.79
54
BUMPER,FRT,BLK.
5224434-067
Unavailable
55
HINGE,LOWER,BLK.
2635010-067
Unavailable
56
TAPE, FOIL
5810509
Unavailable
57
FASTENER-U TYPE CLIP
7670040
$3.99
58
NOSEPAN, CTR.
5431154-070
Unavailable
59
Tape, Foil
5810475
Unavailable
59
Tape, Foil
5810475
Unavailable
60
SCREEN
5211267-067
Unavailable
61
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
61
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
62
TAPE, FOIL
5810477
Unavailable
63
NOSEPAN,RH,BLK.
5431156-070
Unavailable
64
COVER, RH SHOCK
5431253
Unavailable
64
COVER, LH SHOCK
5431252
Unavailable
65
RIVET(50)
7621457
$1.49
66
TAPE, FOIL,(PAN)
5810482
Unavailable
67
CLIP, DART (Nylon)
7670067
$3.99
68
TAPE, FOIL
5810478
Unavailable
