- LITE TOURING - 0983133
DRIVE TRAIN - E983133 (4941934193b006)

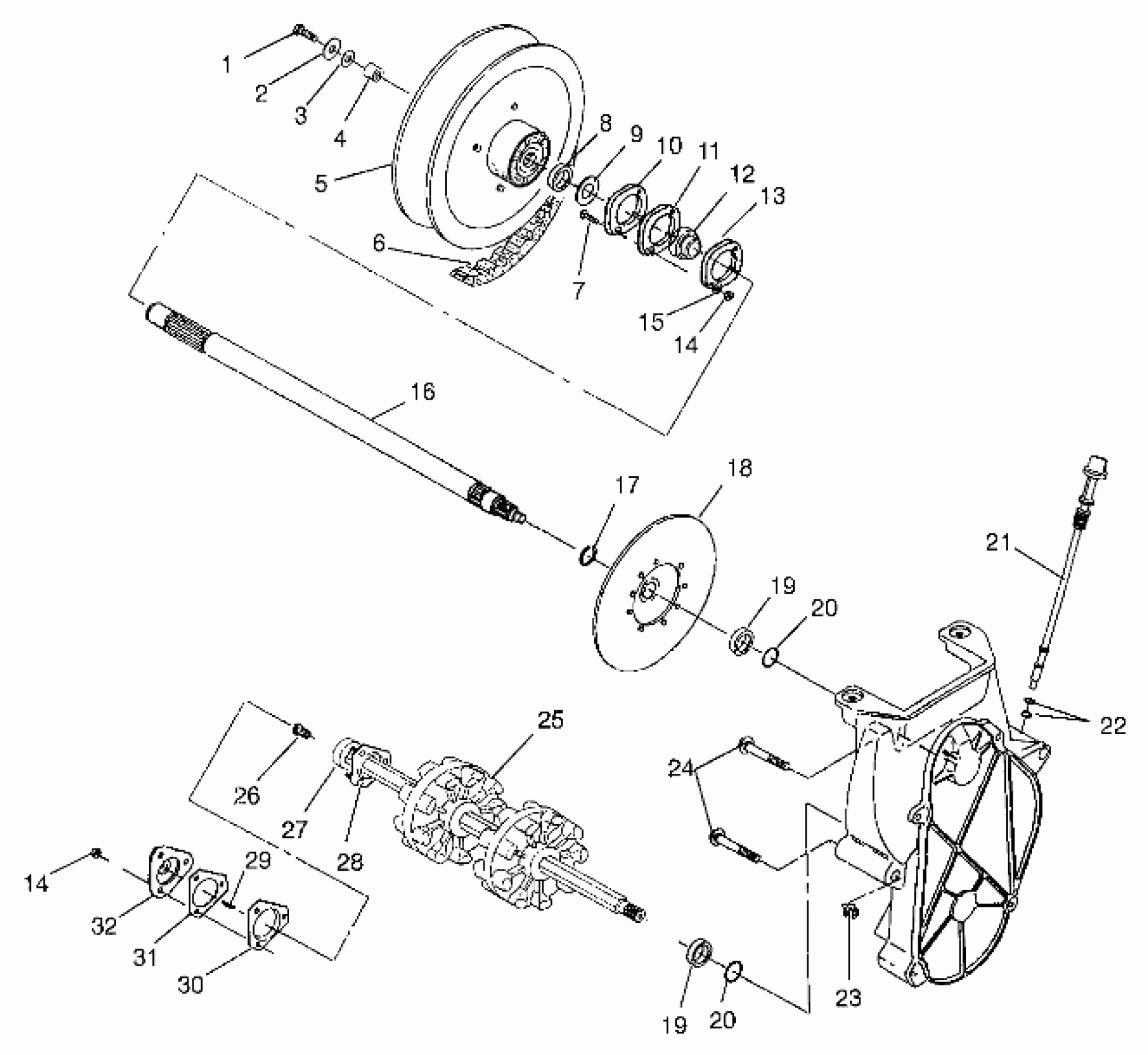

Polaris LITE TOURING - 0983133 DRIVE TRAIN - E983133 (4941934193b006) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
Asm., Driven Clutch (See Footnote) (See Driven Clutch Page B12, Ref. 10)
-------
Unavailable
6
BELT, DRIVE(5)
3211058
$79.99
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
SPACER, DRIVEN Substituted by 2200385
5020596
Unavailable
9
WASHER SPECIAL(10)
7556509
Unavailable
10
FLANGETTE,(GREASABLE)
5222647
$24.27
11
GASKET,JACKSHAFT,2-BOLT
5830135
$2.83
12
BEARING,JACKSHAFT
3514519
$64.99
13
FLANGETTE, (2-BOLT)
5222393
Unavailable
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
16
JACKSHAFT ASM. (Incl. 17)
1332146-067
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVESHAFT ASM,W/M15 BRG,2 DR Substituted by 1590283 (Incl. 26,27,28)
1590267
Unavailable
26
BUSHING METAL SPEEDO
3280019
$11.99
27
BEARING,LUBE. Substituted by 3514525
3514526
$31.75
28
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
29
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
30
FLANGETTE Substituted by 5243529
5241178
$13.75
31
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
32
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
