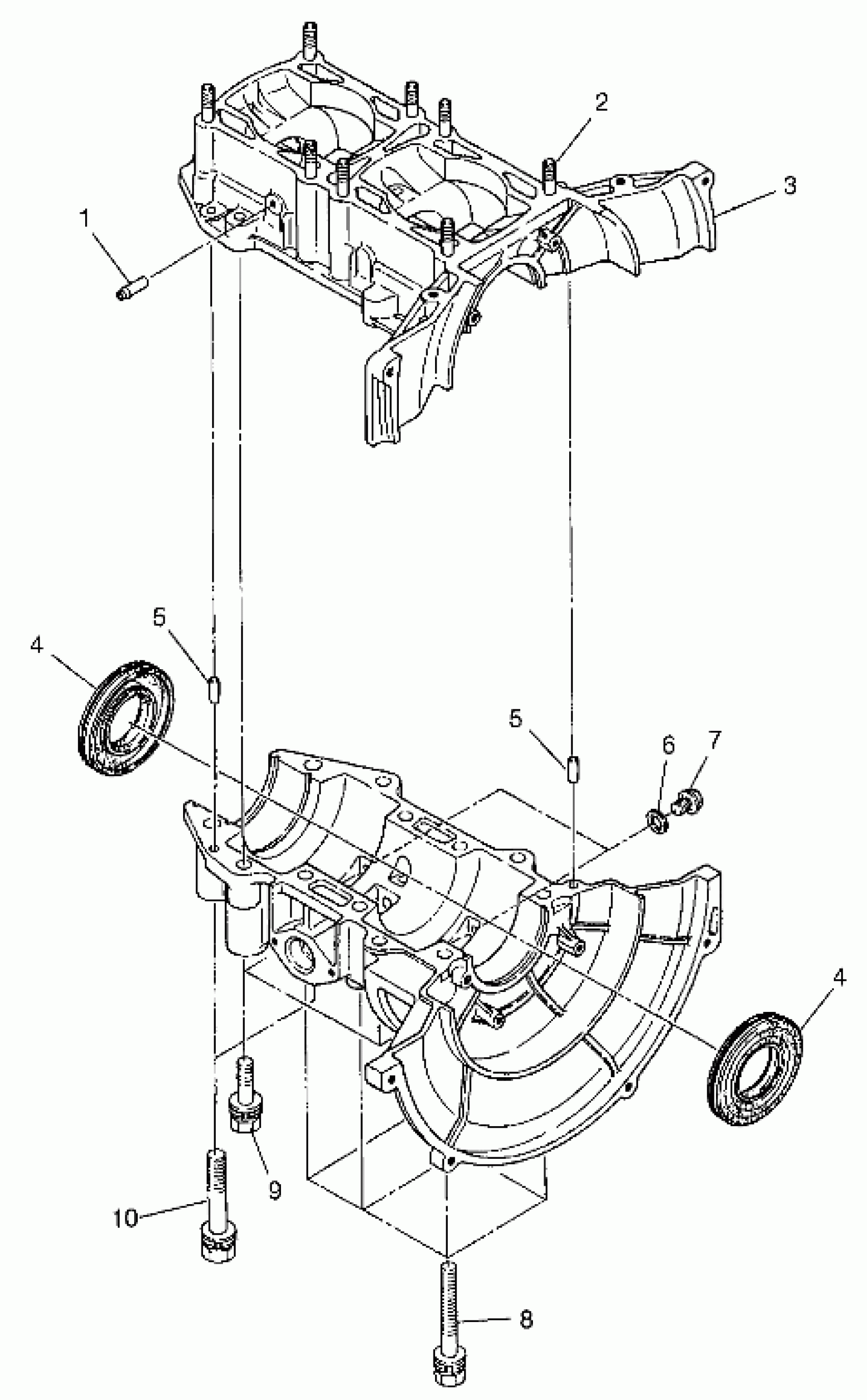

Polaris LITE TOURING - 0983133 CRANKCASE LITE TOURING 0983133 and EUROPEAN LITE TOURNG E983133 (4941934193C003) Diagram

#

Description

Price

1

PIPE, PULSE

3083798

$9.52

2

Stud

3083564

$11.90

3

CRANKCASE (Incl. 1, 2, 5, 8-10)

3083980

Unavailable

4

SEAL, OIL(10)

3083045

$36.41

4

SEAL, OIL(10)

3083045

$36.41

5

PIN, DOWEL Substituted by 3086838

3080103

$7.14

5

PIN, DOWEL Substituted by 3086838

3080103

$7.14

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

8

BOLT W/WASHER

3080739

$6.39

9

BOLT&WASHER ASM.

3083566

$1.54

10

BOLT

3083565

$3.98
