RACK and TUNNEL EXTENSION LITE GT 0973133 and EUROPEAN LITE GT E973133 (4938253825A013)

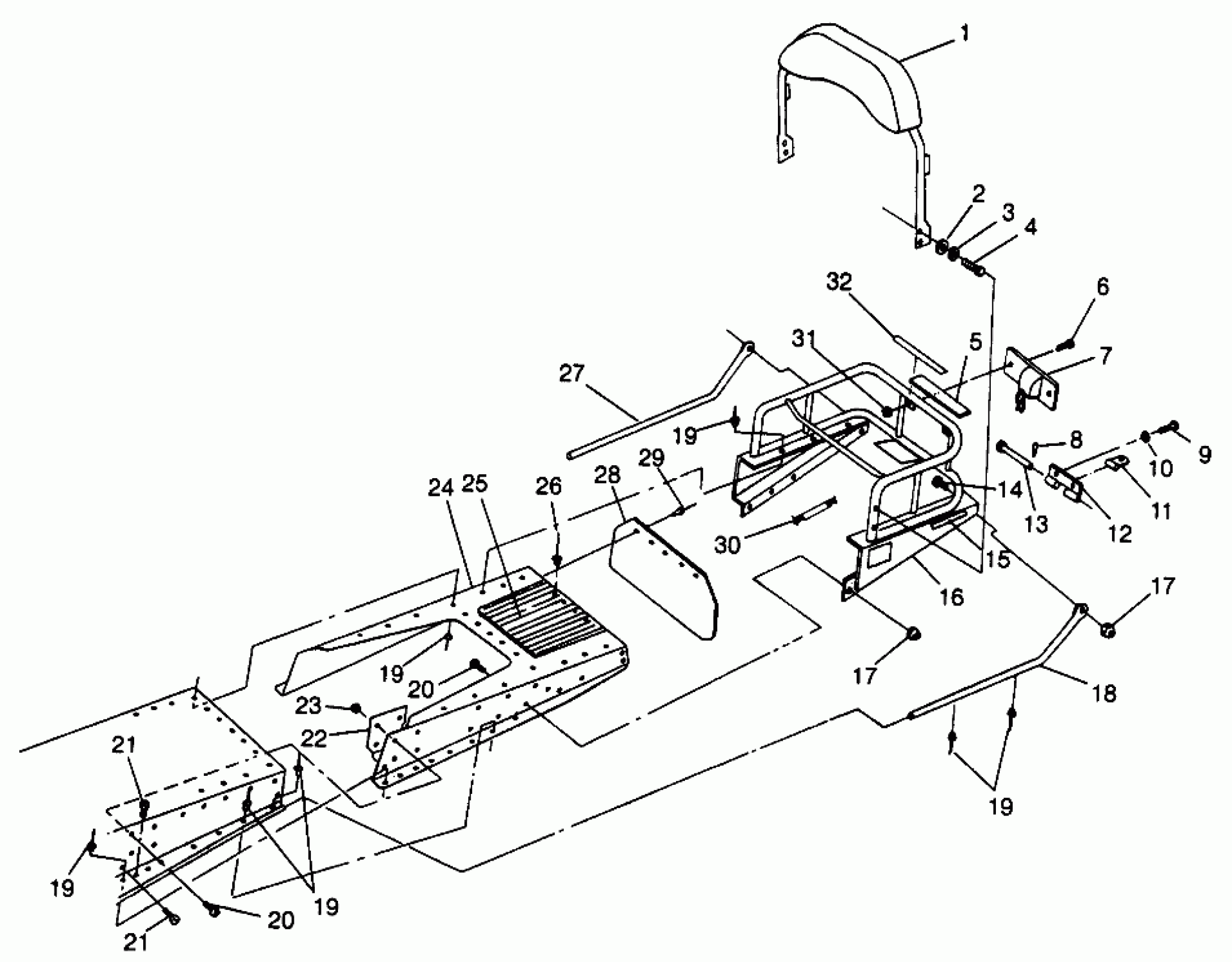

Polaris LITE GT - 0973133 RACK and TUNNEL EXTENSION LITE GT 0973133 and EUROPEAN LITE GT E973133 (4938253825A013) Diagram
#
1
COVER, BACKREST
2681265
$257.13
1
BACKREST ASM. (Incl. Cover)
2681356
$284.75
2
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
3
WASHER(10)
7552606
$4.79
4
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
5
DECAL,TRACK/RACK,LITE GT [No Longer Available]
7073291
Unavailable
6
SCREW(10)
7511985
Unavailable
7
BULB,T/L,EXT.DUTY
4030063
$24.99
7
TAILLIGHT ASM. (Incl. Bulb, Lens & Gasket)
4030041
$91.19
7
Gasket
4032015
Unavailable
7
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
7
LENS-TAIL-LIGHT
4032014
$36.41
8
COTTER PIN(10)
7661401
$1.49
9
SCREW(10)
7512490
$3.99
10
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
11
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
12
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
13
CLEVIS PIN(10)
7662209
$9.59
14
BOLT, BLACK(10)
7512282
$1.49
15
REFLECTOR RED
2670070
$9.91
16
RACK,REAR,BLK.
2670129-067
Unavailable
17
NUT, LOCK(10)
7542131
Unavailable
17
NUT, LOCK(10)
7542131
Unavailable
18
TUBE,LH TUNNEL,BLK.
5224461-067
Unavailable
19
RIVET(50)
7621453
$3.19
19
RIVET(50)
7621453
$3.19
19
RIVET(50)
7621453
$3.19
19
RIVET(50)
7621453
$3.19
19
RIVET(50)
7621453
$3.19
20
BOLT(10)
7515107
Unavailable
20
BOLT(10)
7515107
Unavailable
21
BOLT(10)
7515106
$2.39
21
BOLT(10)
7515106
$2.39
22
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
22
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
23
NUT HEX-LOCK(10)
7542101
$3.99
24
PANEL,R.CLOSEOFF
5222608-067
Unavailable
25
Protector, Bed
5410619
$22.06
26
RIVET(50)
7621463
Unavailable
27
TUBE,RH TUNNEL,BLK.
5224466-067
$28.95
28
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
29
POP RIVET(50)
7621418
$1.49
30
Protector, Harness
5521246
$3.05
31
NUT(10)
7541925
$1.49
32
DECAL,WARN.,RACK [No Longer Available]
7073290
Unavailable
