FRONT TORQUE ARM LITE GT 0973133 and EUROPEAN LITE GT E973133 (4938253825B009)

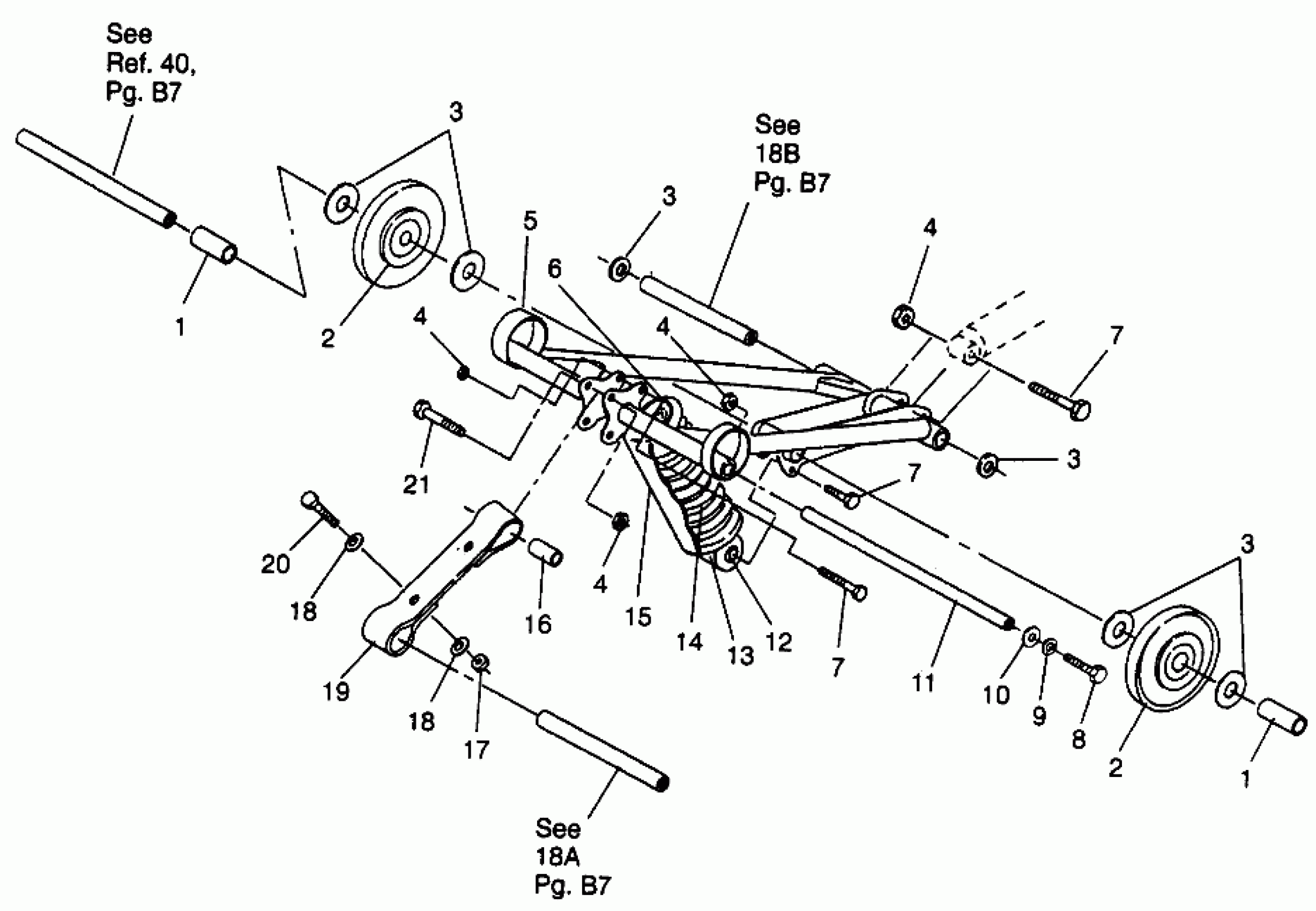

Polaris LITE GT - 0973133 FRONT TORQUE ARM LITE GT 0973133 and EUROPEAN LITE GT E973133 (4938253825B009) Diagram
#
Description
Price
1
SPACER, OUTER
5332784
Unavailable
1
SPACER, OUTER
5332784
Unavailable
2
Asm., Bogie Wheel (See Pg. A20, Ref. 27)
-------
Unavailable
2
Asm., Bogie Wheel (See Pg. A20, Ref. 27)
-------
Unavailable
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
4
NUT-LOCK(10)
7542439
$1.49
4
NUT-LOCK(10)
7542439
$1.49
4
NUT-LOCK(10)
7542439
$1.49
4
NUT-LOCK(10)
7542439
$1.49
5
ARM,F.TORQUE,BLK.
1540722-067
Unavailable
6
RETAINER-TOP
5220225
$10.39
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
8
SCREW,(10)
7517247
$3.19
9
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
10
WASHER(10)
7555893
$1.49
11
Shaft
5020908
$69.99
12
SHOCK-SUSP
7041142
Unavailable
13
SPACER,SHOCK RETAINER(10)
5210953
$6.39
14
SPRING-SHOCK
7041127
Unavailable
15
SHIELD-SPRING
5430671
$24.27
16
BUSHING,SUSPENSION
5010212
Unavailable
17
NUT-5/16-18 NYLOK-Y
7542324
$1.49
18
WASHER(10)
7555716
$1.59
18
WASHER(10)
7555716
$1.59
19
STRAP, LIMITER
5410397
Unavailable
20
BOLT(10)
7515307
$3.99
21
BOLT(10)
7515438
$4.79
