DRIVE TRAIN LITE GT 0973133 and EUROPEAN LITE GT E973133 (4938253825B006)

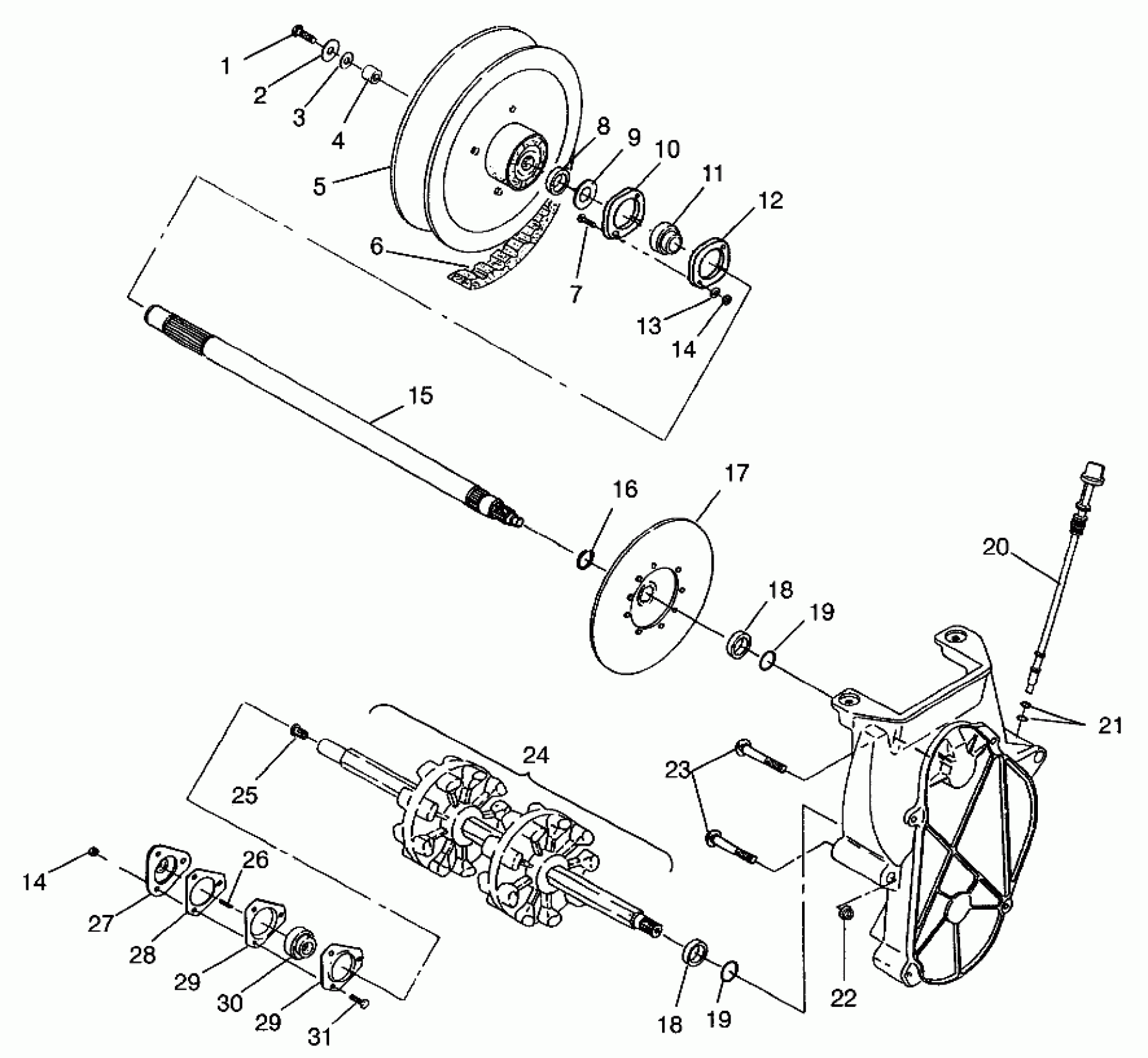

Polaris LITE GT - 0973133 DRIVE TRAIN LITE GT 0973133 and EUROPEAN LITE GT E973133 (4938253825B006) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
Asm., Driven Clutch (See Pg., Ref.)
-------
Unavailable
6
BELT, DRIVE(5)
3211058
$79.99
7
BOLT(10) Substituted by 7512377
7512394
Unavailable
8
SPACER, DRIVEN Substituted by 2200385
5020596
Unavailable
9
WASHER SPECIAL(10)
7556509
Unavailable
10
FLANGETTE,(GREASABLE)
5222647
$24.27
11
BEARING,JACKSHAFT
3514519
$64.99
12
FLANGETTE, (2-BOLT)
5222393
Unavailable
13
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
JACKSHAFT ASM. (Incl. 16)
1332146-067
Unavailable
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
DIPSTICK Substituted by 1332143
5431419
Unavailable
21
O-RING
5410675
$1.60
22
NUT(10)
7542423
$3.99
24
DRIVESHAFT ASM,HD,NARROW (Incl. 25)
1590250
Unavailable
25
BUSHING METAL SPEEDO
3280019
$11.99
26
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
27
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
28
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
29
FLANGETTE
5222751
$16.44
29
FLANGETTE
5222751
$16.44
30
BEARING,DRIVESHAFT
3514518
$64.99
31
BOLT(10)
7512331
$3.99
