SUSPENSION ASSEMBLY LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892B007)

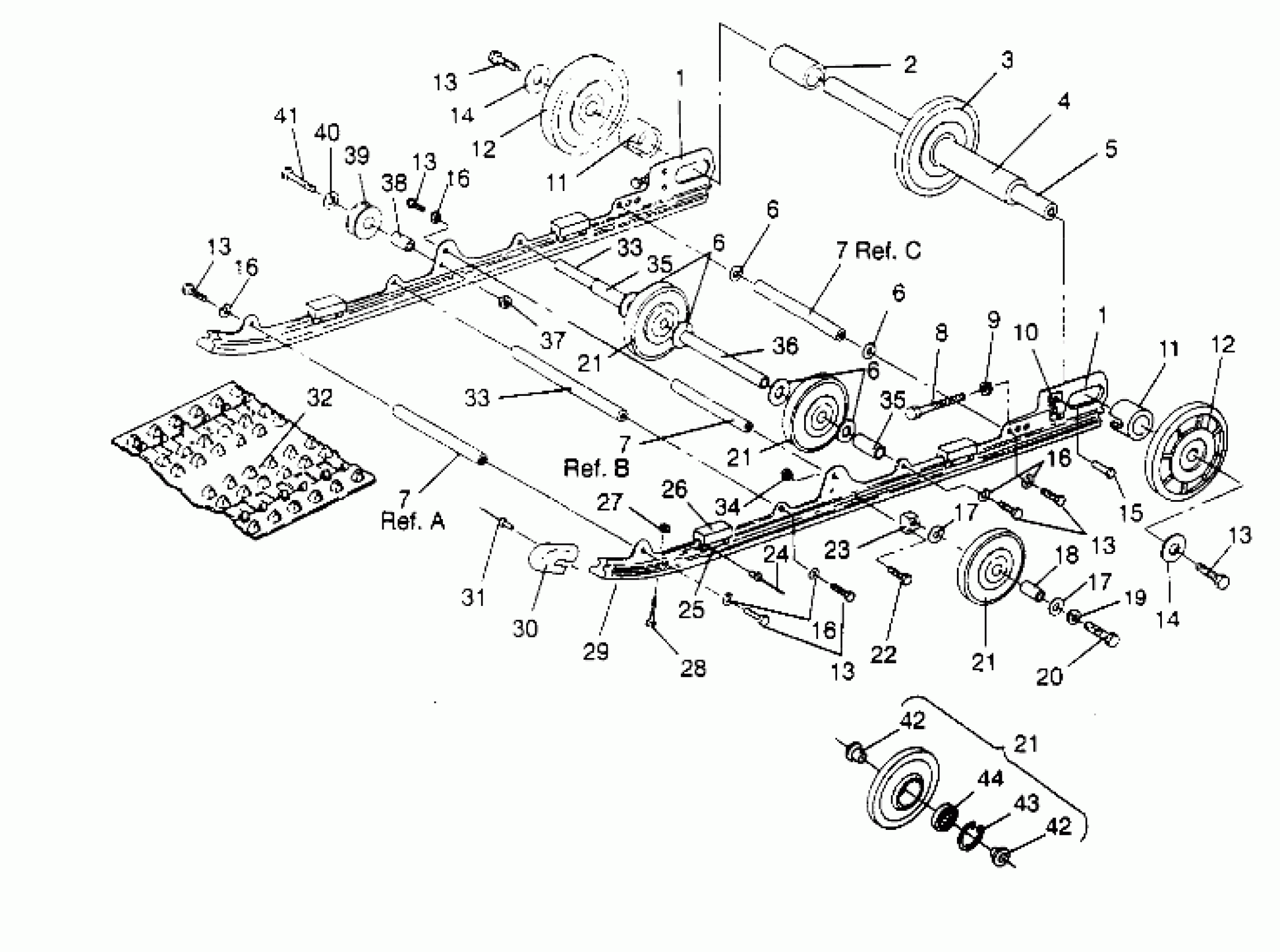

Polaris LITE GT - 0953133 SUSPENSION ASSEMBLY LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892B007) Diagram
#
1
RAIL ASM,LH,133''(LITE GT) Substituted by 1541119 (Incl. 10, 25, 26, 30)
1540691
Unavailable
1
RAIL ASM,RH,133''(LITE GT) Substituted by 1541120 (Incl. 10, 25, 26, 30)
1540692
Unavailable
1
RAIL ASM,LH,133''(LITE GT) Substituted by 1541119 (Incl. 10, 25, 26, 30)
1540691
Unavailable
1
RAIL ASM,RH,133''(LITE GT) Substituted by 1541120 (Incl. 10, 25, 26, 30)
1540692
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
SHAFT,PIVOT ARM
5020723
$29.99
7
SHAFT,PIVOT ARM
5020723
$29.99
7
SHAFT,PIVOT ARM
5020723
$29.99
8
BOLT, ADJUSTER(10)
7515455
$29.99
9
NUT(10)
7542440
Unavailable
10
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
11
SPACER-IDLER-OUTER
5332641
Unavailable
11
SPACER-IDLER-OUTER
5332641
Unavailable
12
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
12
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
14
WASHER FLAT(10)
7555732
Unavailable
14
WASHER FLAT(10)
7555732
Unavailable
15
RIVET,(50)
7621501
$2.39
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
17
WASHER(10)
7555804
$3.99
17
WASHER(10)
7555804
$3.99
18
SPACER
5332786
$7.99
19
LOCK WASHER(10)
7553201
$3.99
20
BOLT(10)
7512659
$7.99
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
21
WHEEL, IDLER (Incl.42-44)
1543018
$56.65
22
BOLT(10)
7512404
$3.99
23
BRACKET,BOGIE WHEEL
5130570
$48.56
24
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
25
REINF., BUMPER
5222629
$13.75
26
BUMPER, RAIL
5810554
$7.27
27
NUT-LOCK(10)
7542122
$1.49
28
SCREW(10)
7512227
$3.19
29
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
30
COVER-RAIL TIP
5430627
$32.37
31
RIVET(50)
7621435
$1.49
32
TRACK,MOLDED,133
5410727
Unavailable
33
SHAFT,PIVOT ARM
5020724
$29.99
33
SHAFT,PIVOT ARM
5020724
$29.99
34
NUT LOCK(10)
7542403
$3.99
35
SPACER, OUTER
5332784
Unavailable
35
SPACER, OUTER
5332784
Unavailable
36
TUBE, SUSPENSION
5332783
Unavailable
37
NUT-LOCK(10)
7542439
$1.49
38
Spacer
5332787
Unavailable
39
ROLLER-SPRING
5430540
Unavailable
40
WASHER(10)
7555743
Unavailable
41
BOLT Substituted by 7515491
7515433
$1.59
42
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
42
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
43
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
44
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
