RACK and TUNNEL EXTENSION LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892A014)

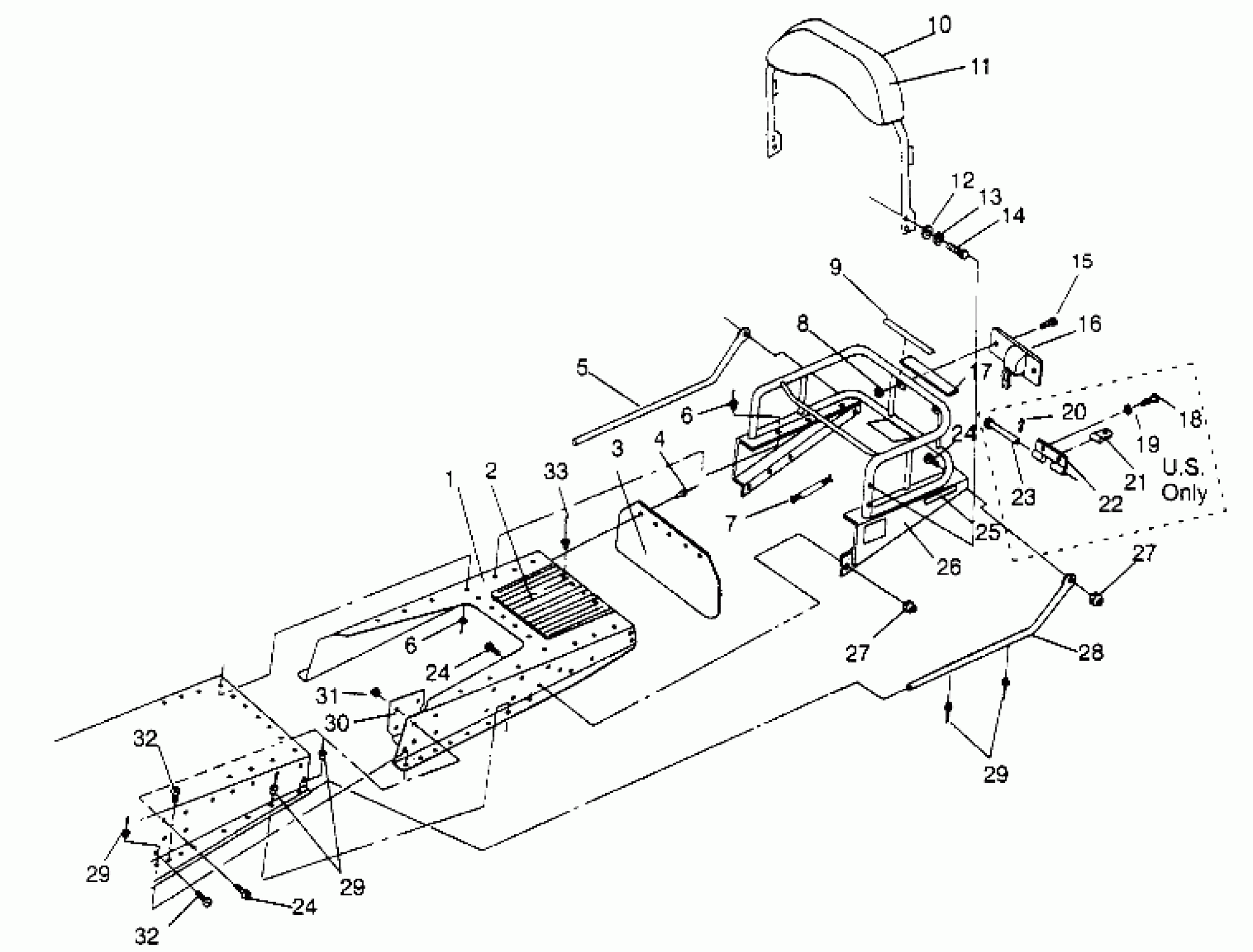

Polaris LITE GT - 0953133 RACK and TUNNEL EXTENSION LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892A014) Diagram
#
1
PANEL,R.CLOSEOFF
5222608-067
Unavailable
2
Protector, Bed
5410619
$22.06
3
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
4
POP RIVET(50)
7621418
$1.49
5
TUBE,RH TUNNEL,BLK.
5224466-067
$28.95
6
RIVET(50)
7621470
$3.17
6
RIVET(50)
7621470
$3.17
7
Protector, Harness
5521246
$3.05
8
NUT(10)
7541925
$1.49
9
DECAL,WARN.,RACK [No Longer Available]
7073290
Unavailable
10
BACKREST ASM.
2681356
$284.75
11
COVER, BACKREST
2681265
$257.13
12
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
13
WASHER(10)
7552606
$4.79
14
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
15
SCREW(10)
7511985
Unavailable
16
TAILLIGHT ASM. (Incl. Bulb, Lens & Gasket)
4030041
$91.19
16
Gasket
4032015
Unavailable
16
LENS-TAIL-LIGHT
4032014
$36.41
16
BULB-TAIL-LIGHT Substituted by 4030063
4030038
Unavailable
17
DECAL,TRACK/RACK,LITE GT [No Longer Available]
7073291
Unavailable
18
SCREW(10) Substituted by 7512490 (U.S. Only)
7512402
Unavailable
19
WASHER SPRINGLOCK(10) Substituted by 7552603 (U.S. Only)
7553001
Unavailable
20
COTTER PIN(10) (U.S. Only)
7661401
$1.49
21
HITCH WELD,BLK.(U.S.) (U.S. Only)
1011518-067
$31.75
22
HITCH WELD, BLK. Substituted by 2871178 (U.S. Only)
1011624-067
Unavailable
23
CLEVIS PIN(10) (U.S. Only)
7662209
$9.59
24
BOLT(10)
7515107
Unavailable
24
BOLT(10)
7515107
Unavailable
24
BOLT(10)
7515107
Unavailable
25
REFLECTOR RED
2670070
$9.91
26
RACK,REAR,BLK.
2670129-067
Unavailable
27
NUT, LOCK(10)
7542131
Unavailable
27
NUT, LOCK(10)
7542131
Unavailable
28
TUBE,LH TUNNEL,BLK.
5224461-067
Unavailable
29
RIVET(50)
7621453
$3.19
29
RIVET(50)
7621453
$3.19
29
RIVET(50)
7621453
$3.19
30
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
30
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
31
NUT HEX-LOCK(10)
7542101
$3.99
32
BOLT(10)
7515106
$2.39
32
BOLT(10)
7515106
$2.39
33
RIVET(50)
7621463
Unavailable
