PISTON and CRANKSHAFT LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892C006)

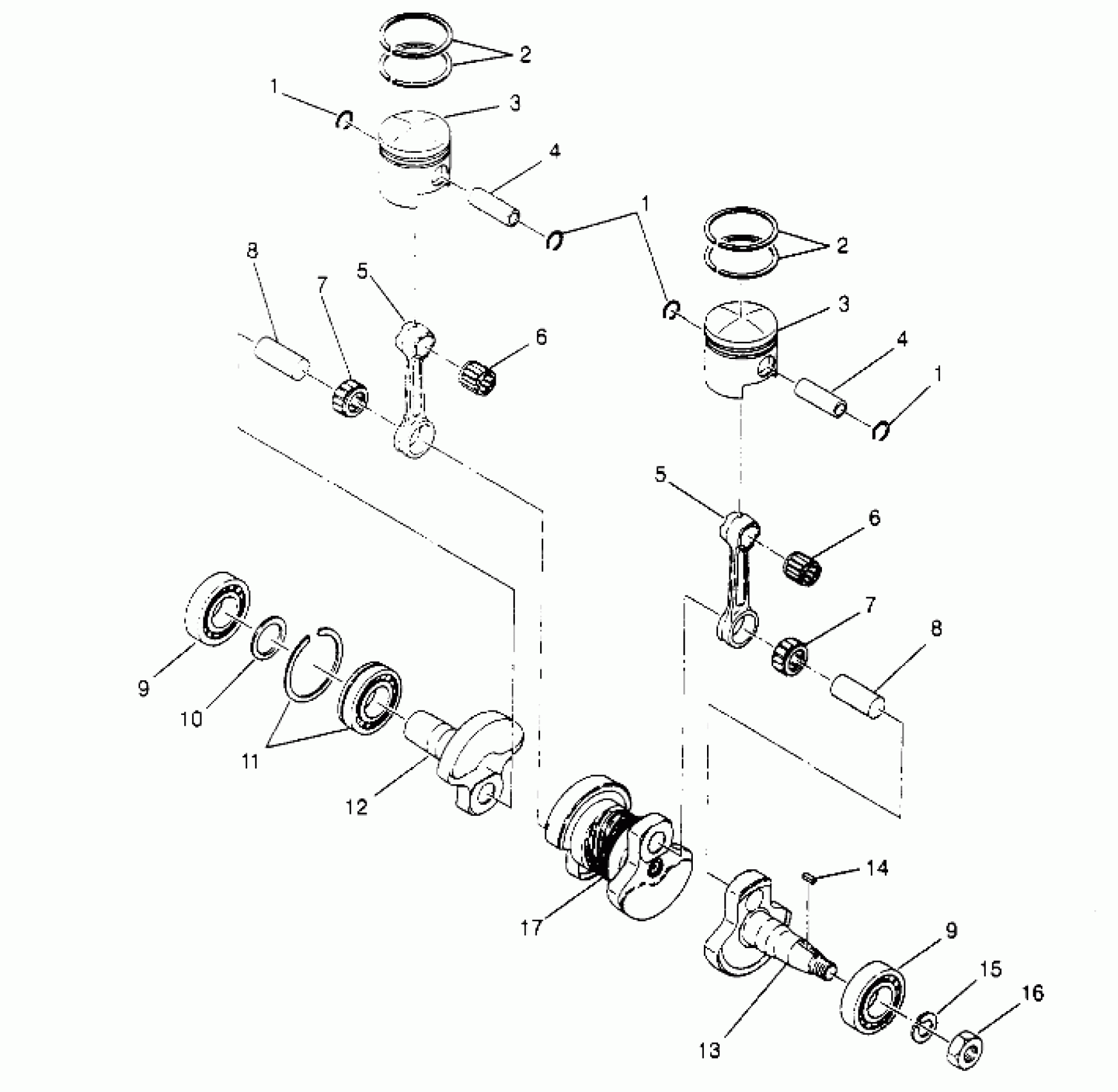

Polaris LITE GT - 0953133 PISTON and CRANKSHAFT LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892C006) Diagram
#
Description
Price
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
2
Ring, Piston (Standard)
3083587
Unavailable
2
RING, PISTON (.25mm/.010" O/S)
3084319
$33.32
2
RING, .020 O/S (.50mm/.020" O/S)
3083719
$31.41
2
Ring, Piston (Standard)
3083587
Unavailable
2
RING, PISTON (.25mm/.010" O/S)
3084319
$33.32
2
RING, .020 O/S (.50mm/.020" O/S)
3083719
$31.41
3
PISTON,STD. Substituted by 3085840 (Standard)
3084603
Unavailable
3
PISTON,(.010 O/S) Substituted by 3085841 (.25mm/.010" O/S)
3084604
$152.37
3
PISTON,(.020 O/S) Substituted by 3085842 (.50mm/.020" O/S)
3084605
Unavailable
3
PISTON,STD. Substituted by 3085840 (Standard)
3084603
Unavailable
3
PISTON,(.010 O/S) Substituted by 3085841 (.25mm/.010" O/S)
3084604
$152.37
3
PISTON,(.020 O/S) Substituted by 3085842 (.50mm/.020" O/S)
3084605
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
5
Rod, Connecting
3083581
Unavailable
5
Rod, Connecting
3083581
Unavailable
6
BEARING,SMALL END
3080998
Unavailable
6
BEARING,SMALL END
3080998
Unavailable
7
Bearing, Large End
3083583
$23.19
7
Bearing, Large End
3083583
$23.19
8
Pin, Crank
3083582
$16.47
8
Pin, Crank
3083582
$16.47
9
Bearing, Ball
3084580
$31.99
9
Bearing, Ball
3084580
$31.99
10
Spacer
3083399
$1.49
11
BEARING,BALL
3084602
Unavailable
12
CRANKSHAFT #3
3083580
$236.99
13
CRANKSHAFT (Incl. 5, 7-13, 17)
3083577
$969.99
13
CRANKSHAFT #1
3083578
$354.99
14
KEY
3081447
Unavailable
15
WASHER-SPRING(10)
3083094
$3.17
16
NUT
3083093
$19.99
17
GEAR,DRIVE,OIL PUMP
3083782
$102.13
17
CRANKSHAFT #2 (Incl. 8)
3083579
$400.79
