NOSEPAN and CONSOLE ASSEMBLY LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892A008)

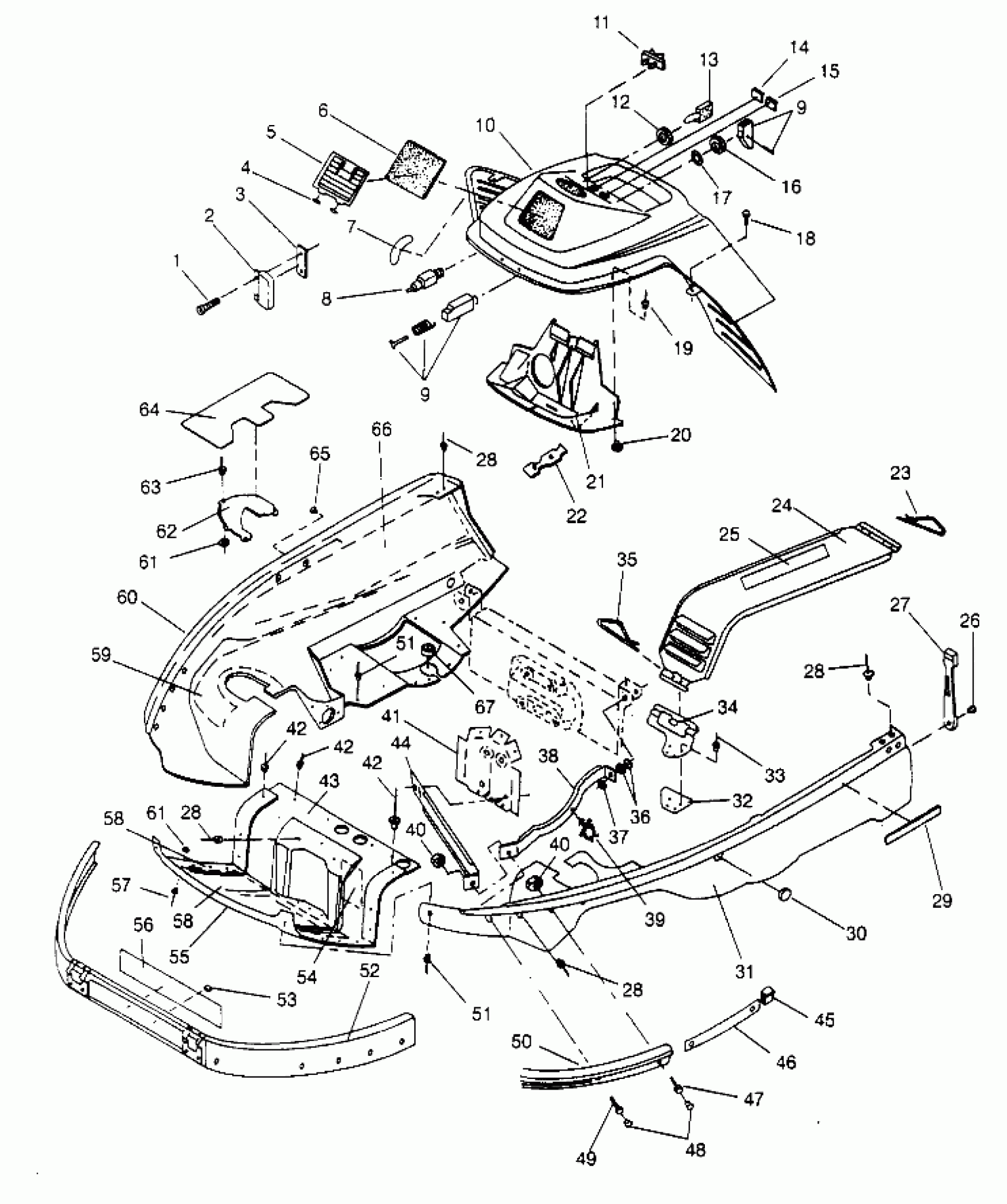

Polaris LITE GT - 0953133 NOSEPAN and CONSOLE ASSEMBLY LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892A008) Diagram
#
1
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
2
REGULATOR,14 VAC.LR-9
4060122
Unavailable
3
SPACER,REGULATOR
5211573
Unavailable
4
SEAL, O RING,(10)
5410374
$1.83
5
LOUVER, INTAKE
5431211-070
Unavailable
6
Foam, Intake
5810458
Unavailable
7
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
8
SWITCH IGNITION
4110038
$44.51
9
CABLE, CHOKE(LITE) Substituted by 7080661
7080405
Unavailable
9
CABLE, CHOKE(LITE) Substituted by 7080661
7080405
Unavailable
10
CONSOLE,BLK,(94DLX.) Substituted by 5431636-070
5431636
Unavailable
11
SWITCH,ROCKER Substituted by 4110195
4110116
Unavailable
12
NUT-IGNITION SWITCH
7542807
Unavailable
13
KEY, IGNITION
5410378
$13.75
14
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
15
INDICATOR,'ACC'WARN.
4040014
Unavailable
16
Nut
7080229
$19.99
17
WASHER-LOCK(10)
7571610
$3.99
18
SCREW(10)
7512253
$3.99
19
RIVET,(50)
7621336
$1.59
20
RIVET BURR(50)
7555727
$1.49
21
CONSOLE, INNER
5431214-070
$66.39
22
STRAP,TOOL COMPARTMENT
5410425
Unavailable
23
PIN, FRONT
7080311
Unavailable
24
GUARD, CLUTCH Substituted by 5243761 (U.S.)
5230124
Unavailable
24
GUARD,CLUTCH(SWED.LITE GT) (Euro)
1011839
Unavailable
25
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
26
RIVET,(50)
7621601
Unavailable
27
STRAP, HOOD
5410573
Unavailable
28
RIVET(50)
7621472
$1.49
28
RIVET(50)
7621472
$1.49
28
RIVET(50)
7621472
$1.49
28
RIVET(50)
7621472
$1.49
29
REFLECTOR AMBER
2670071
Unavailable
30
PLUG,CATCH HOLE
5410582
$7.27
31
NOSEPAN,LH,BLK.
5431155-070
Unavailable
32
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
33
RIVET(50)
7621449
$3.19
34
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
35
PIN
5224440
Unavailable
36
WASHER WROUGHT(10)
7558403
$4.79
37
WASHER(10)
7555806
$1.49
38
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
38
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
39
CLIP, PLASTIC(10)
4020139
$4.79
40
NUT(10)
7542124
Unavailable
40
NUT(10)
7542124
Unavailable
41
BRKT,SUPPORT,BLK.
5222356-067
$38.19
42
RIVET(50)
7621479
$1.99
42
RIVET(50)
7621479
$1.99
42
RIVET(50)
7621479
$1.99
43
TAPE, FOIL
5810476
Unavailable
44
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
44
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
45
CAP,BUMPER END,LH,BLK Substituted by 5431250-070
5431250
Unavailable
45
CAP,BUMPER END,RH,BLK Substituted by 5431251-070
5431251
Unavailable
46
PLATE,BUMPER
5222611-067
Unavailable
47
SCREW(10)
7512164
Unavailable
48
PLUG, BUTTON(10)
7080430
$3.51
49
SCREW(10)
7515102
$4.79
50
BUMPER,FRT,BLK.
5224434-067
Unavailable
51
RIVET, BLIND(50)
7621467
$1.49
51
RIVET, BLIND(50)
7621467
$1.49
52
HINGE,LOWER,BLK.
2635010-067
Unavailable
53
FASTENER-U TYPE CLIP
7670040
$3.99
54
TAPE, FOIL
5810509
Unavailable
55
NOSEPAN, CTR.
5431154-070
Unavailable
56
SCREEN
5211267-067
Unavailable
57
POP RIVET(50)
7621418
$1.49
58
Tape, Foil
5810475
Unavailable
58
Tape, Foil
5810475
Unavailable
59
TAPE, FOIL
5810477
Unavailable
60
NOSEPAN,RH,BLK.
5431156-070
Unavailable
61
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
61
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
62
COVER, RH SHOCK
5431253
Unavailable
62
COVER, LH SHOCK
5431252
Unavailable
63
RIVET(50)
7621457
$1.49
64
TAPE, FOIL,(PAN)
5810482
Unavailable
65
CLIP, DART (Nylon)
7670067
$3.99
66
KIT-CHOKE CONTROL
2200188
$24.27
66
TAPE, FOIL
5810478
Unavailable
67
SHIELD,NOSEPAN DRAIN HOLE
5811078
Unavailable
