HOOD ASSEMBLY LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892A010)

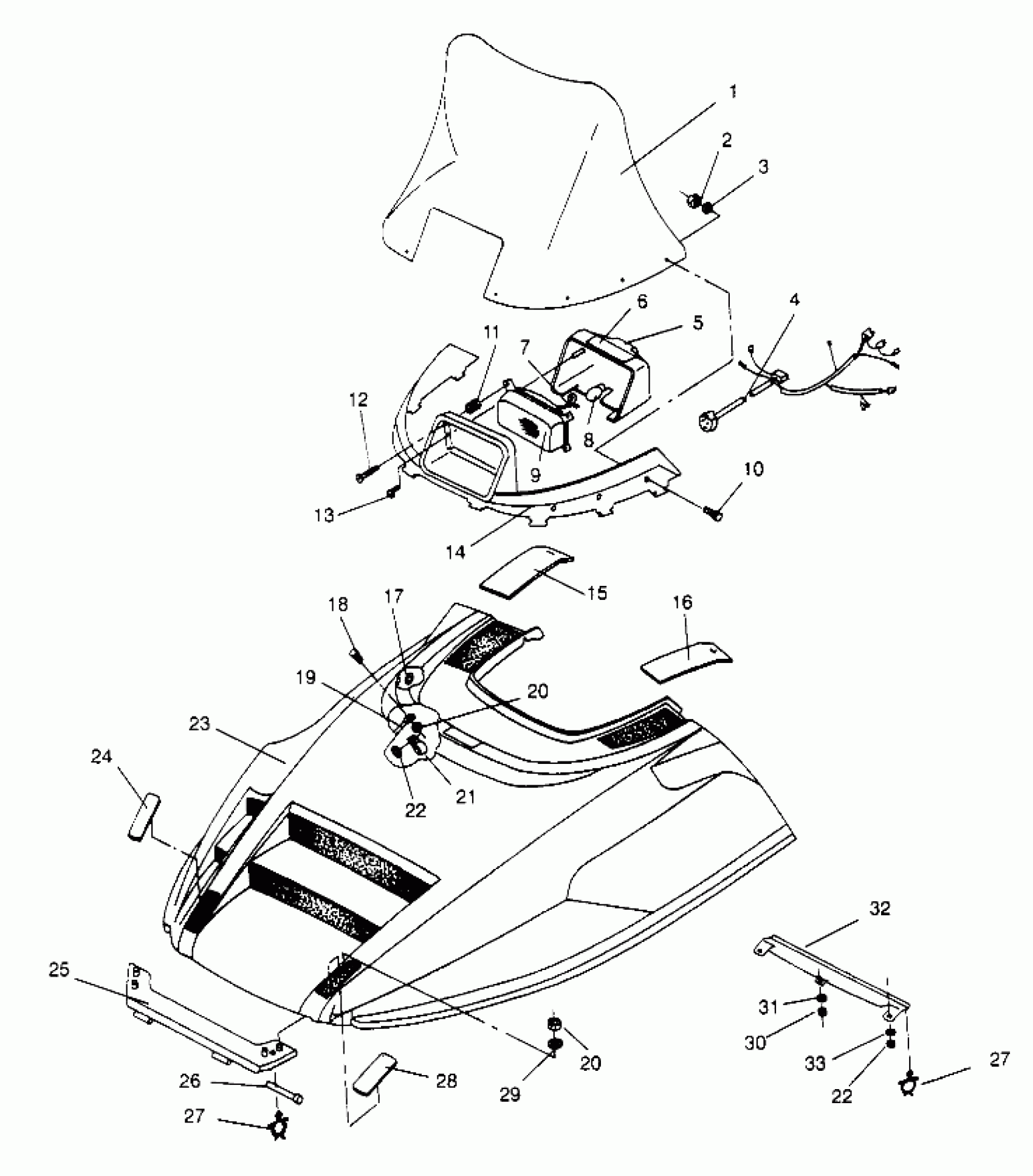

Polaris LITE GT - 0953133 HOOD ASSEMBLY LITE GT 0953133 and EUROPEAN LITE GT E953133 (4928922892A010) Diagram
#
Description
Price
1
WINDSHIELD, (LITE GT)
5431338
Unavailable
2
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
3
WASHER(10) Substituted by 7558201
7555799
Unavailable
4
HARNESS,MAIN WIRE(LITE GT)
2460426
$65.87
5
COVER, HEADLAMP
5431209-070
Unavailable
6
DECAL,OPER.CAUTION [No Longer Available]
7072930
Unavailable
7
RETAINER,H/L BULB
4032063
Unavailable
8
BULB, H/L
4030028
$29.99
9
HEADLIGHT ASM.
4032038
Unavailable
10
SCREW(10)
7512023
Unavailable
11
SPRING-ADJ
4032002
Unavailable
12
SCREW, ADJ.(10)
4032003
Unavailable
13
SCREW(10)
7512054
$2.39
14
MOUNT,W/S,RED(94LITE DLX)
5431208-136
Unavailable
15
COVER ASM,LH,TOOL,RED
2652131-136
$23.81
16
COVER ASM,RH,TOOL,RED
2652132-136
$30.32
17
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
18
BOLT(10)
7512261
$4.99
19
CABLE,HOOD RETAINER
7080414
Unavailable
20
NUT-LOCK(10)
7542122
$1.49
20
NUT-LOCK(10)
7542122
$1.49
21
CLAMP(10) Substituted by 7080573
7080347
Unavailable
22
PUSH-ON NUT(10)
7670017
$1.83
22
PUSH-ON NUT(10)
7670017
$1.83
23
HOOD,RED,LITE (Incl. Foam/Foil)
2631571-136
Unavailable
24
COVER,LH,HINGE,RED
5431217-136
Unavailable
25
HINGE, BLK.
2635009-067
Unavailable
26
RIVET(50)
7661626
Unavailable
27
CLIP, PLASTIC(10)
4020139
$4.79
27
CLIP, PLASTIC(10)
4020139
$4.79
28
COVER,RH,HINGE,RED
5431218-136
Unavailable
29
WASHER,WROUGHT(10)
7558302
$1.59
30
NUT, PUSH-ON(10)
7670068
$2.39
31
WASHER, FLAT(10)
7558201
$5.79
32
DEFLECTOR, HOOD
5222477
Unavailable
33
WASHER(10)
7555806
$1.49
