TUNNEL and SEAT ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010001)

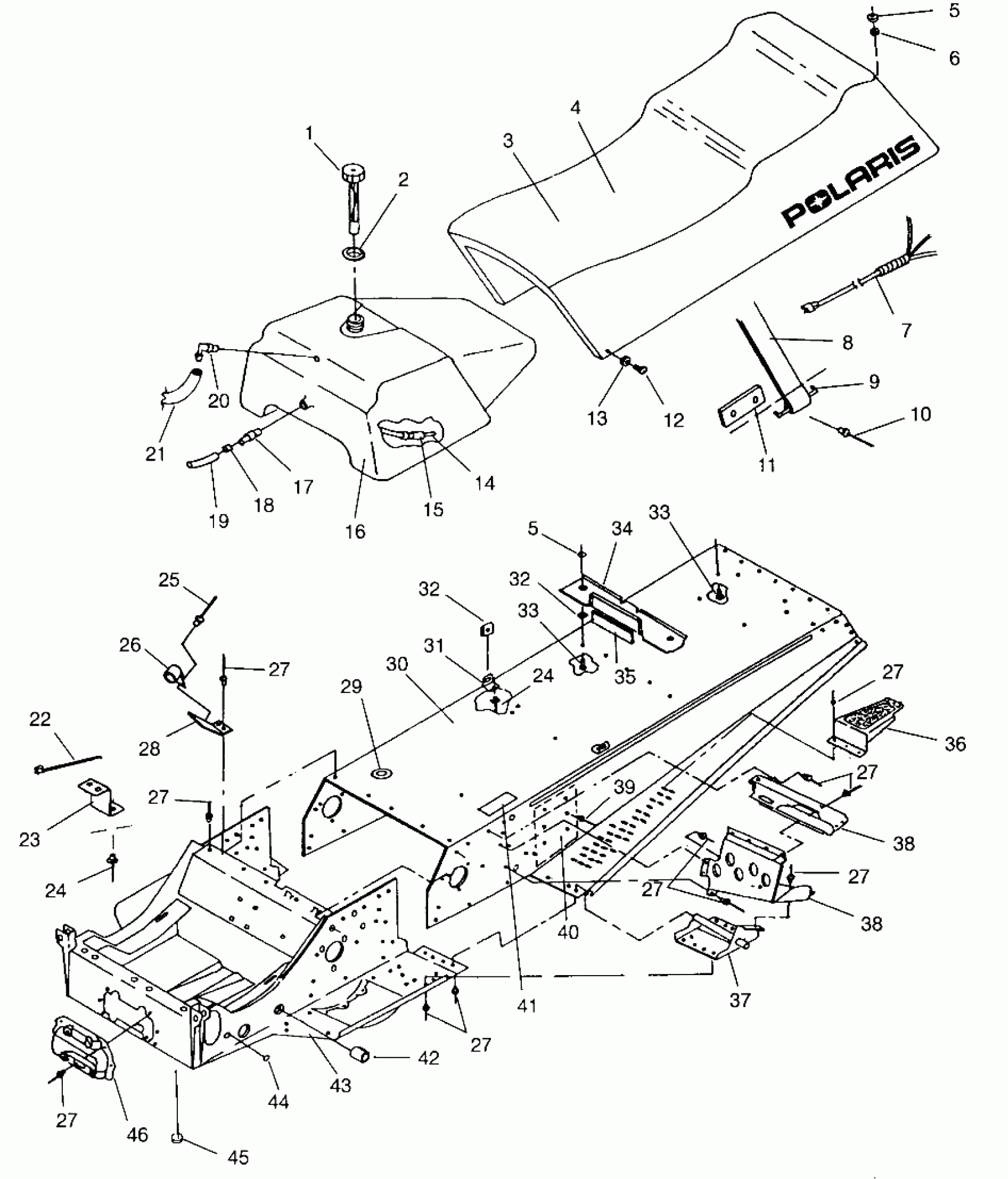

Polaris LITE GT - 0943133 TUNNEL and SEAT ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010001) Diagram
#
1
CAP, GAS,W/GAUGE Substituted by 2511245
2511213
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
SEAT ASM,(LITE GT)
2681518
Unavailable
4
COVER,SEAT,(LITE GT)
2681519
Unavailable
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
WASHER WROUGHT(10)
7558403
$4.79
7
HARNESS-TAILLIGHT
2460237
Unavailable
8
Belt, Seat
7080434
$14.40
9
WIRE-SEAT-BELT
5223864
Unavailable
10
POP RIVET(50)
7621323
$1.49
11
PLATE-SEAT BELT
5210842
Unavailable
12
SCREW(10)
7515111
$7.19
13
WASHER(10)
7555798
$1.49
14
FUELPICKUP,W/STRAINER
7052037
$12.94
15
RING, COMPRESSION(10)
7080402
$1.60
16
TANK, FUEL Substituted by 2511214
5431353
Unavailable
16
TANK,FUEL,(LITE GT) Substituted by 2520179 (Lite GT) (Incl. 14-17,20)
2511214
Unavailable
16
TANK, FUEL (StarLite GT) (Incl. 14-17,20)
2511215
Unavailable
17
FITTING - OUTLET(10) (Lite GT)
7052023
$24.99
17
FITTING, OUTLET
7052056
$6.23
18
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
19
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
20
FITTING,90 DEG,1/8,(10)
7052095
$4.79
21
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
23
BRKT,STAND,BLK.
5220520-067
$4.13
24
RIVET(50)
7621453
$3.19
24
RIVET(50)
7621453
$3.19
25
RIVET,(50)
7621477
$1.19
26
GUIDE, RECOIL (StarLite GT)
5431385
$10.51
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
28
BRKT,ROPE GUIDE,BLK. (StarLite GT)
5222687-067
$59.99
29
GROMMET RUBBER
5410021
Unavailable
30
TUNNEL, (LITE GT) (Incl. 32,40)
1011864
$366.65
31
DESC NOT_AVAILABLE
5222452
Unavailable
32
SPEED NUT(10)
7670021
$6.99
32
SPEED NUT(10)
7670021
$6.99
33
BOLT(10)
7512193
$2.39
33
BOLT(10)
7512193
$2.39
34
STRAP,GASTANK,BLK.
5222330-067
Unavailable
35
CUSHION,TANK H.D.
5420126
Unavailable
36
PAD,LH FOOT SAFETY
5830007
$7.89
36
PAD,RH FOOT SAFETY
5830008
$4.92
37
FOOTREST ASM,LH
1011830
$140.79
37
FOOTREST ASM,RH,(STARLITE)
1011826
Unavailable
38
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
38
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
38
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
38
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
39
RIVET ,(50)
7661837
$1.49
40
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
41
Pad, Air Box
5810502
Unavailable
42
BUSHING,SNAP(10)
7080404
Unavailable
43
BULKHEAD, (STARLITE) (StarLite GT)
1011885-067
Unavailable
43
BULKHEAD,BLK,(94LITE) Substituted by 1012587-067 (Lite GT)
1011983-067
$649.99
44
PLUG, HOLE(10)
7080416
$5.65
45
PLUG-HOLE
7080398
$4.84
46
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
