NOSEPAN and CONSOLE ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010003)

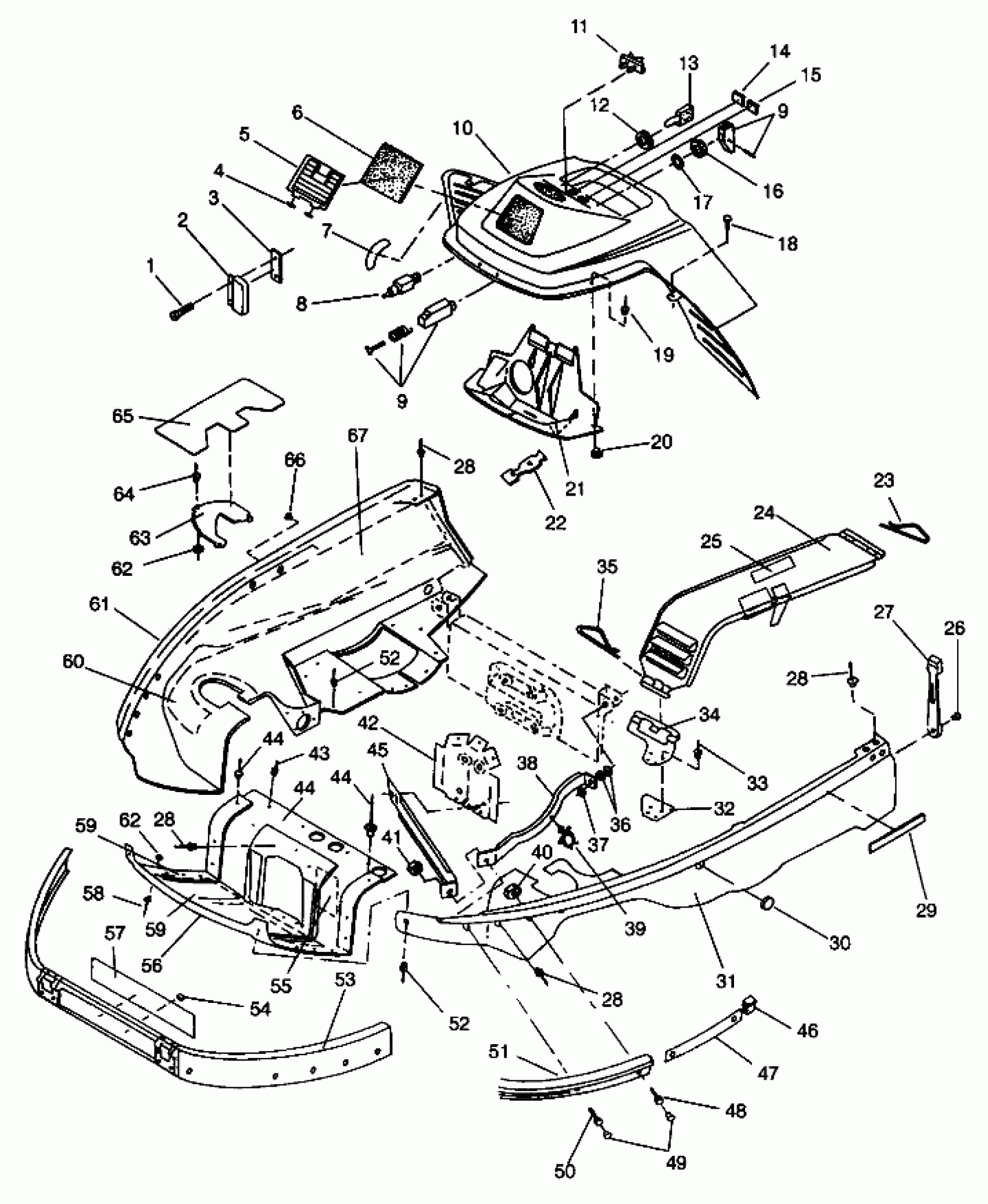

Polaris LITE GT - 0943133 NOSEPAN and CONSOLE ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010003) Diagram
#
1
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
2
REGULATOR, VOLTAGE
4060092
Unavailable
3
HEAT SINK
5210650
Unavailable
4
SEAL, O RING,(10)
5410374
$1.83
5
LOUVER, INTAKE
5431211-070
Unavailable
6
Foam, Intake
5810458
Unavailable
7
DECAL,FUEL SHUT-OFF(LITE) [No Longer Available]
7073124
Unavailable
8
SWITCH IGNITION
4110038
$44.51
9
CABLE, CHOKE(LITE) Substituted by 7080661 (Lite GT)
7080405
Unavailable
9
CABLE, CHOKE(STAR) (StarLite GT)
7080411
Unavailable
9
CABLE, CHOKE(LITE) Substituted by 7080661 (Lite GT)
7080405
Unavailable
9
CABLE, CHOKE(STAR) (StarLite GT)
7080411
Unavailable
10
CONSOLE (StarLite GT)
5431157-070
Unavailable
10
CONSOLE,BLK,(94DLX.) Substituted by 5431636-070 (Lite GT)
5431636
Unavailable
11
SWITCH,ROCKER Substituted by 4110195
4110116
Unavailable
12
NUT-IGNITION SWITCH
7542807
Unavailable
13
KEY, IGNITION
5410378
$13.75
14
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
15
INDICATOR,'ACC'WARN.
4040014
Unavailable
16
Nut
7080229
$19.99
17
WASHER-LOCK(10)
7571610
$3.99
18
SCREW(10)
7512253
$3.99
19
RIVET,(50)
7621336
$1.59
20
RIVET BURR(50)
7555727
$1.49
21
CONSOLE, INNER
5431214-070
$66.39
22
STRAP,TOOL COMPARTMENT
5410425
Unavailable
23
PIN, FRONT
7080311
Unavailable
24
GUARD, CLUTCH Substituted by 5243761
5230124
Unavailable
25
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
26
RIVET,(50)
7621601
Unavailable
27
STRAP, HOOD
5410573
Unavailable
28
RIVET(50)
7621472
$1.49
28
RIVET(50)
7621472
$1.49
28
RIVET(50)
7621472
$1.49
28
RIVET(50)
7621472
$1.49
29
REFLECTOR AMBER
2670071
Unavailable
30
PLUG,CATCH HOLE
5410582
$7.27
31
NOSEPAN,LH,BLK.
5431155-070
Unavailable
32
PLATE,CLUTCHGUARD,BLK.
5211249-067
$3.49
33
RIVET(50)
7621449
$3.19
34
SUPPORT,CLUTCH GD,BLK.
5222332-067
$4.95
35
PIN
5224440
Unavailable
36
WASHER WROUGHT(10)
7558403
$4.79
37
WASHER(10)
7555806
$1.49
38
BRKT,LH PANBRACE,BLK.
5222339-067
Unavailable
38
BRKT,RH PANBRACE,BLK.
5222340-067
Unavailable
39
CLIP, PLASTIC(10)
4020139
$4.79
40
NUT, LOCK(10)
7542103
$5.59
41
NUT(10)
7542124
Unavailable
42
BRKT,SUPPORT,BLK.
5222356-067
$38.19
43
RIVET(50)
7621479
$1.99
44
TAPE, FOIL
5810476
Unavailable
44
TAPE, FOIL
5810476
Unavailable
44
TAPE, FOIL
5810476
Unavailable
45
BRKT,LH BUMP.BRACE,BLK.
5222345-067
Unavailable
45
BRKT,RH BUMP.BRACE,BLK.
5222346-067
Unavailable
46
CAP,BUMPER END,LH,BLK Substituted by 5431250-070
5431250
Unavailable
46
CAP,BUMPER END,RH,BLK Substituted by 5431251-070
5431251
Unavailable
47
PLATE,BUMPER
5222611-067
Unavailable
48
SCREW(10)
7512164
Unavailable
49
PLUG, BUTTON(10)
7080430
$3.51
50
SCREW(10)
7515102
$4.79
51
BUMPER,FRT,BLK.
5224434-067
Unavailable
52
RIVET, BLIND(50)
7621467
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
53
HINGE,LOWER,BLK.
2635010-067
Unavailable
54
FASTENER-U TYPE CLIP
7670040
$3.99
55
TAPE, FOIL (Lite GT)
5810509
Unavailable
56
NOSEPAN, CTR. (Lite GT)
5431154-070
Unavailable
56
NOSEPAN,CTR,(STARLITE) (Star GT)
5431256
Unavailable
57
SCREEN
5211267-067
Unavailable
58
POP RIVET(50)
7621418
$1.49
59
Tape, Foil
5810475
Unavailable
59
Tape, Foil
5810475
Unavailable
60
TAPE, FOIL
5810477
Unavailable
61
NOSEPAN,RH,BLK.
5431156-070
Unavailable
62
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
62
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
63
COVER, RH SHOCK
5431253
Unavailable
63
COVER, LH SHOCK
5431252
Unavailable
64
RIVET(50)
7621457
$1.49
65
TAPE, FOIL,(PAN)
5810482
Unavailable
66
CLIP, DART (Nylon)
7670067
$3.99
67
KIT-CHOKE CONTROL
2200188
$24.27
67
TAPE, FOIL
5810478
Unavailable
