DRIVE TRAIN ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010016)

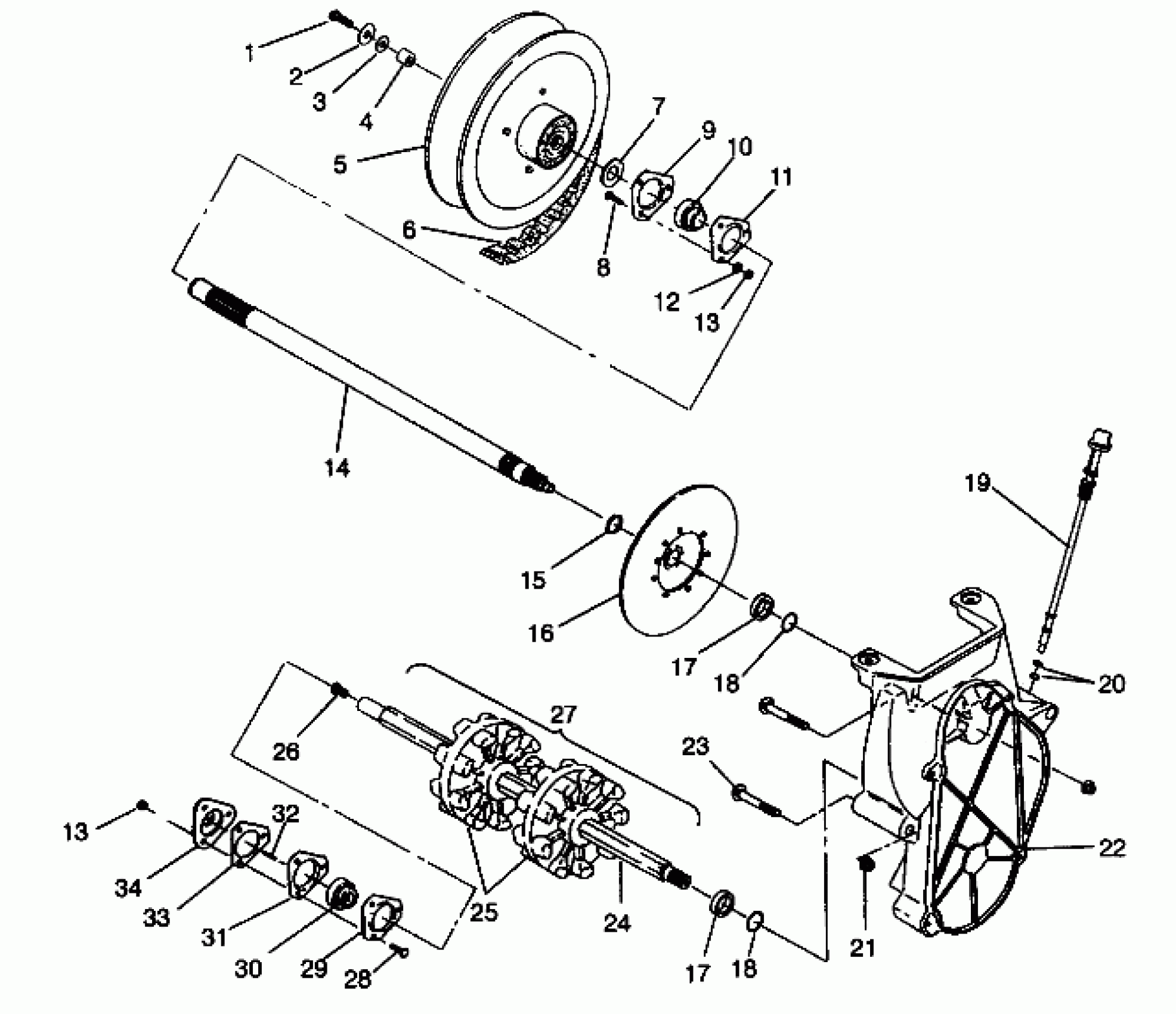

Polaris LITE GT - 0943133 DRIVE TRAIN ASSEMBLY LITE GT 0943133 and STARLITE GT 0943127 (49250125010016) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER,DRIVEN CLUTCH
5020645
Unavailable
5
Asm., Driven Clutch (See Pg. A22)
-------
Unavailable
6
BELT, DRIVE(5) (Lite GT)
3211058
$79.99
6
BELT, DRIVE (StarLite GT)
3211060
Unavailable
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,(GREASABLE)
5222647
$24.27
10
BEARING,JACKSHAFT
3514519
$64.99
11
FLANGETTE, (2-BOLT)
5222393
Unavailable
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
JACKSHAFT ASM. (Incl. 15)
1332146-067
Unavailable
15
RING, RETAINING(10)
7710423
Unavailable
16
DISC ASM, BRAKE
1910086
Unavailable
17
SLEEVE, SEAL
5020588
$23.99
17
SLEEVE, SEAL
5020588
$23.99
18
O RING,(10)
5410613
$1.99
18
O RING,(10)
5410613
$1.99
19
DIPSTICK Substituted by 1332143
5431419
Unavailable
20
O-RING
5410675
$1.60
21
NUT(10)
7542423
$3.99
22
DESC NOT_AVAILABLE (See Pg. A16)
1332159
Unavailable
23
BOLT(10)
7515428
$4.79
24
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
25
SPROCKET, 9T
5430571
Unavailable
26
BUSHING METAL SPEEDO
3280019
$11.99
27
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 24-26)
1590230
$285.70
28
BOLT(10)
7512331
$3.99
29
FLANGETTE (Lite GT)
5222751
$16.44
30
BEARING,DRIVESHAFT
3514518
$64.99
31
FLANGETTE (StarLite GT Only)
5240252
Unavailable
32
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
33
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
34
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
